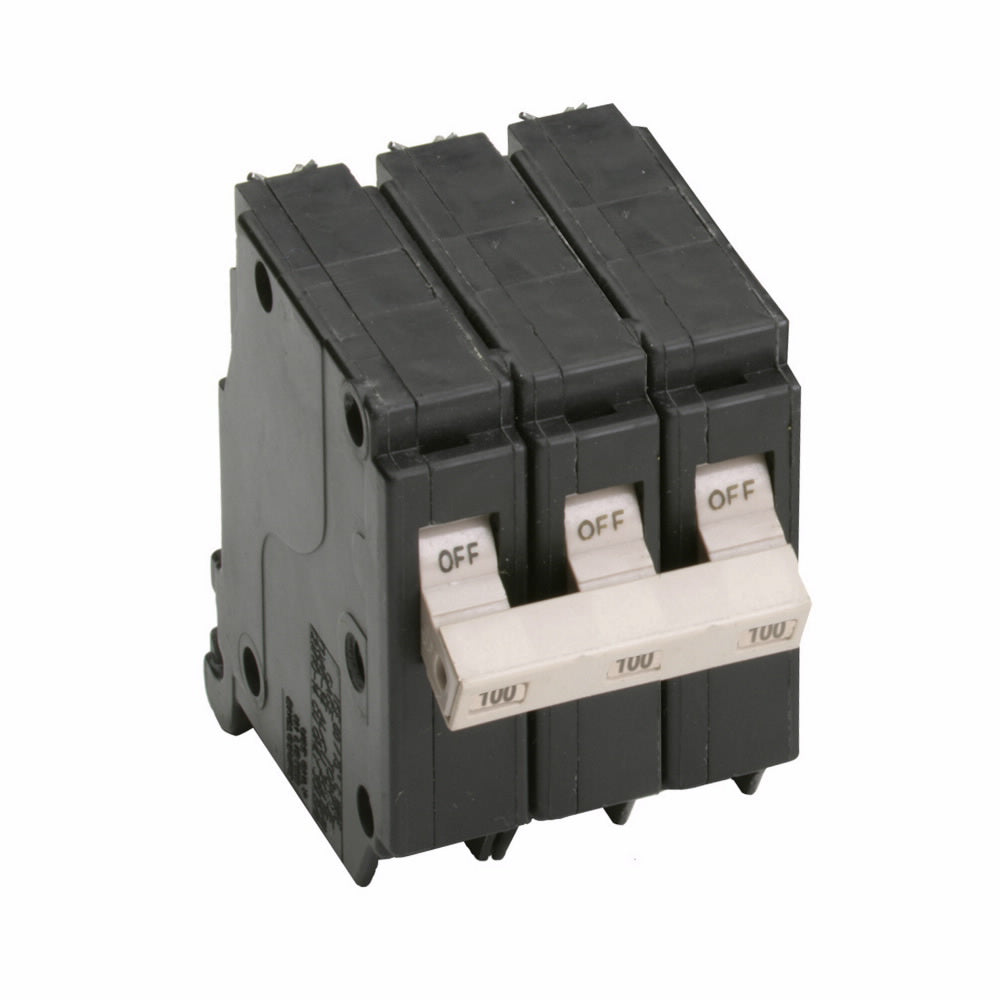

EATON CH3100 Type CH Thermal Magnetic Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 3 Poles, Common/Thermal Magnetic Trip

Product Description

The EATON CH3100 Type CH Thermal Magnetic Circuit Breaker has a voltage rating of two hundred forty VAC and an amperage rating of one hundred amps. It features three poles and a short-circuit protection of ten kAIC. This circuit breaker protects electrical circuits from overload and short circuits by instantly interrupting power. It is designed for use in residential and commercial applications.

• Trip free design that avoids nuisance tripping.
• Suitable for plug-on mounting in load centers.
• Compatible with copper and aluminum wire sizes ranging from ten to one aught AWG.

Product Highlights

The EATON CH3100 provides reliable circuit protection for various applications, including conventional energy generation and load centers.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: CH3100

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 3
• Trip Type: Common/Thermal Magnetic
• Dimensions: 2.2 in L x 3.1 in W x 2.6 in H
• Enclosure Type: NEMA 1/3R
• Temperature Rating: 60 to 75 degrees C
• Wire Size: 10 to 1/0 AWG
• Mounting Type: Plug-On
