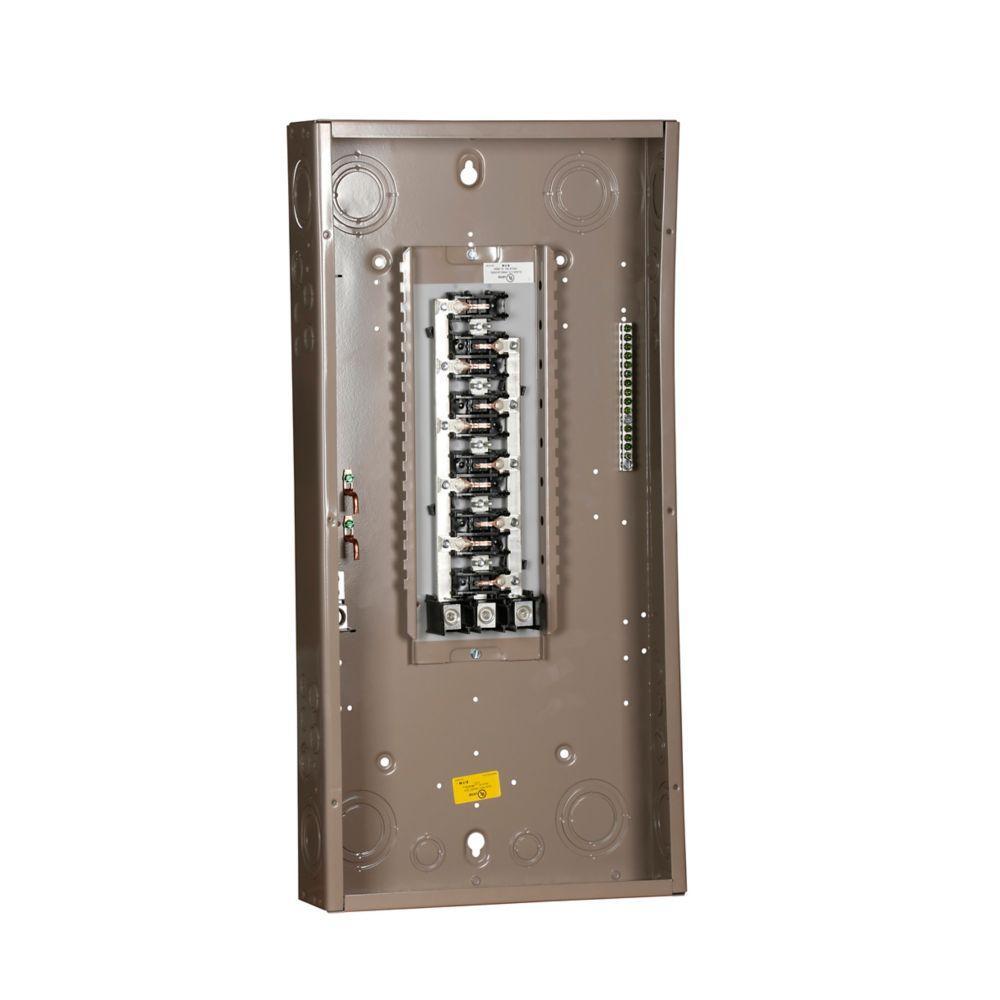

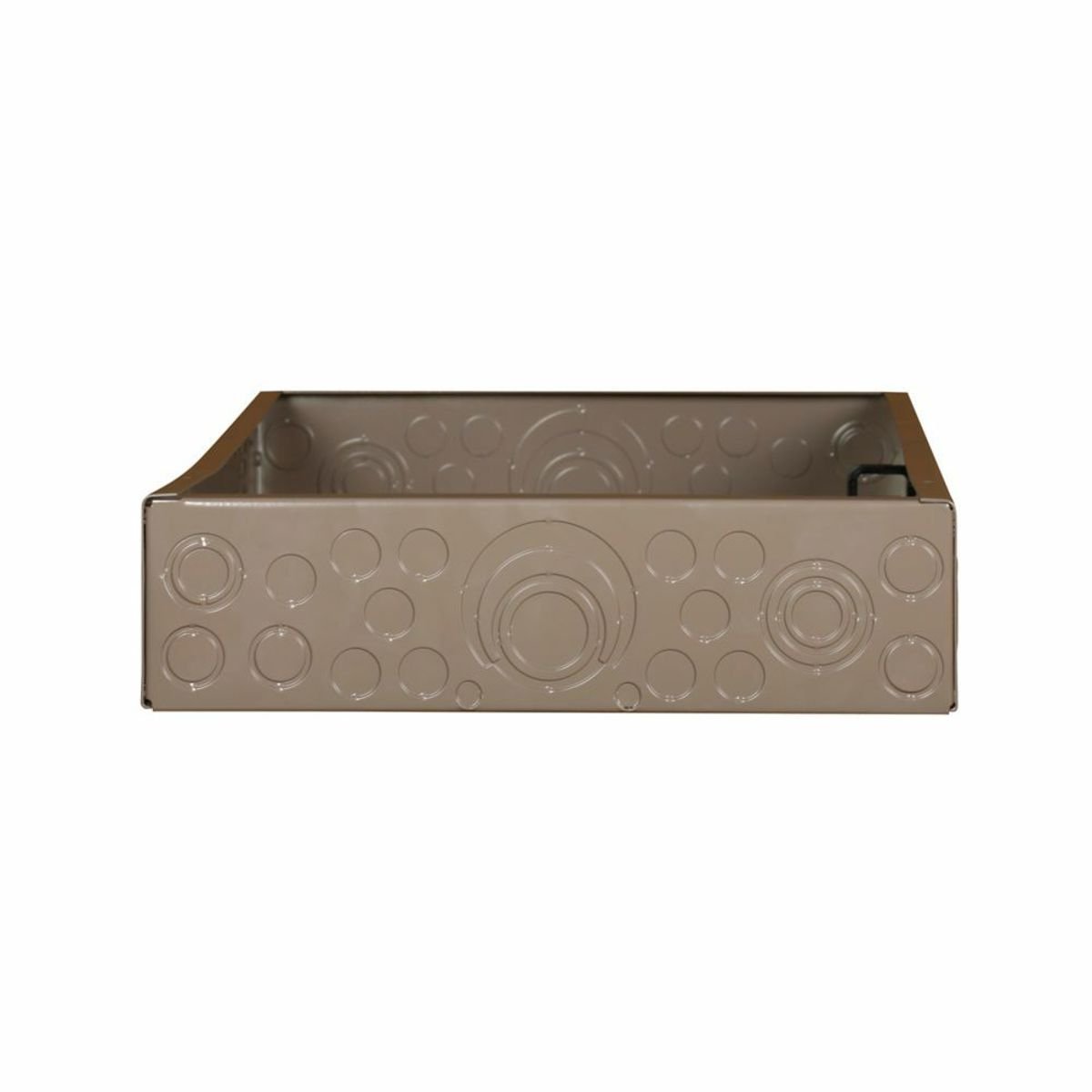

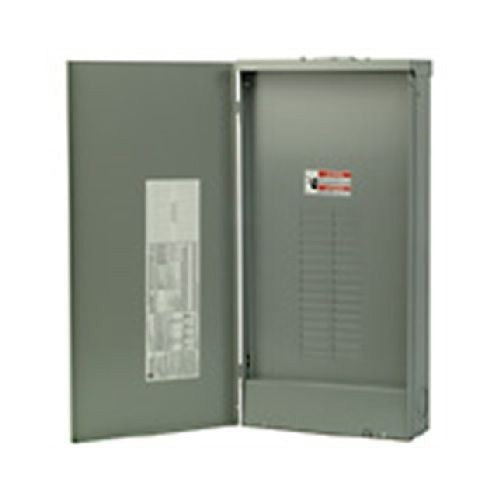

Eaton CH30L3225R CH Main Lug Loadcenter 225 A

Product Description

The Eaton CH30L3225R is a CH main lug loadcenter designed for power distribution and circuit protection in residential and light commercial applications. Rated at 225 A, this loadcenter features a NEMA 3R enclosure and a copper bus. It is designed for overhead feed applications and accommodates 30 circuits and 30 spaces.

• Main lug only
• NEMA 3R enclosure
• 30 circuits and 30 spaces

Product Highlights

Eaton CH30L3225R loadcenters enclose CH circuit breakers for power distribution and circuit protection. It is suitable for residential and light commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH30L3225R
• Country of Origin: United States

Technical Specifications

• Type: Main Lug Only
• Brand: Eaton
• Width: 14.31 in
• Height: 5.19 Inch
• Length: 29.13 Inch
• Amperage: 225 Amp
• Standard: UL 50,UL 67
• Enclosure: NEMA 3R
• Feed Type: Overhead
• NEMA Size: 3R
• Wire Size: 4 AWG to 300 kcmil
• Bus Material: Copper
• Number of Wires: 4 Wire
• Interrupt Rating: 35 kAIC
• Number of Phases: 3 Phase
• Number of Spaces: 30
• Enclosure Material: Metal
• Number of Circuits: 30
• Catalog Number: CH30L3225R
• Manufacturer: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 225 A
• Phase: 3
• Special Features: Standard
• UPC: 782113097930
• GTIN: 00782113097930
• Item Type: Main lug loadcenter
• Breaker Type: CH
• Enclosure Type: NEMA 3R
• Housing Material: Metal
• Wiring Configuration: 4-Wire
• Voltage Rating: 120/240 VAC
• Number of Poles: 30
• Rating - Volts: 208Y/120V AC
• Mains: Lugs
• Rating - Amps: 225
• Main Wire: Cu/Al 4-300mcm
• Manufacturer Series: CH
• Poles: 3
• Mounting: Surface
• Amps: 225
• Circuits: 30
• IP/NEMA Rating: NEMA 3R
