EATON CH30L3225D LOADCENTER LUG MAIN 208Y/120/240VAC 225A

Product Description

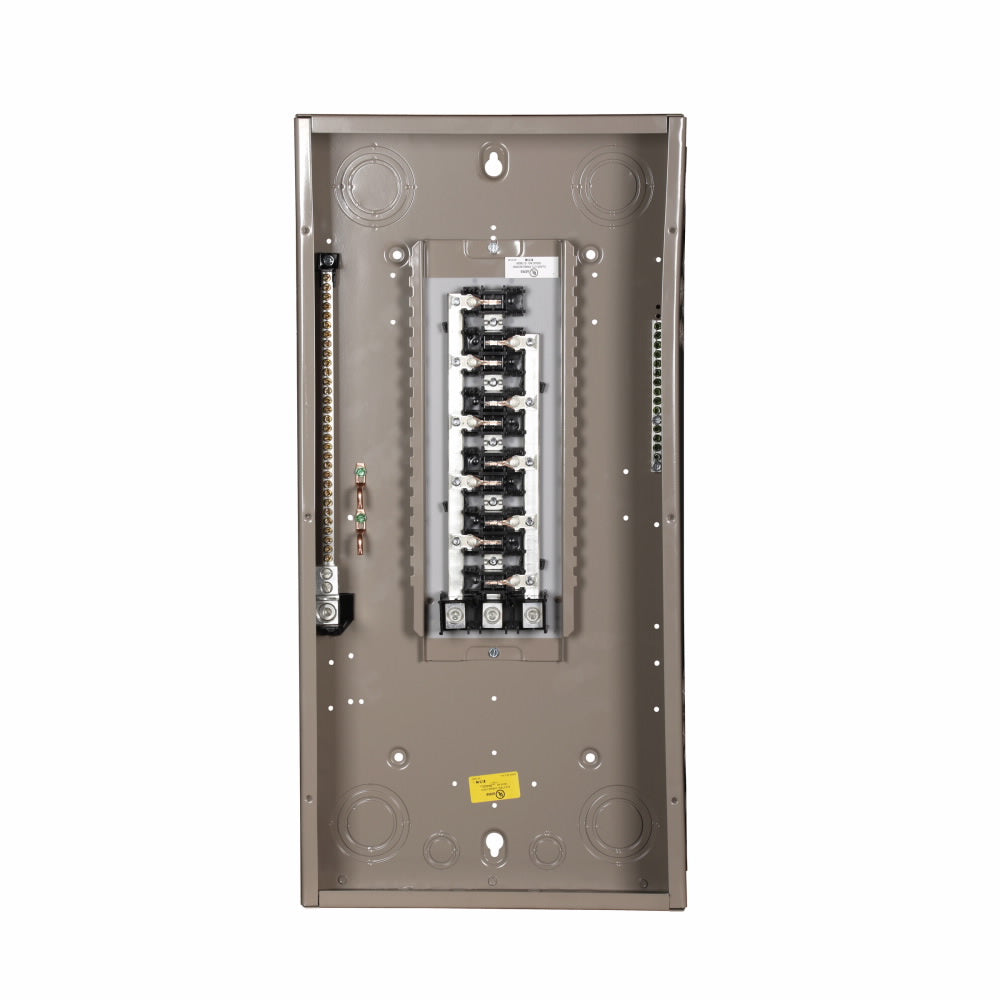

The Eaton CH30L3225D is a three-phase standard main lug loadcenter designed for applications requiring efficient power distribution and circuit protection. This loadcenter operates at 208Y/120/240 VAC and supports an amperage rating of 225 A with 30 poles and a 10 kA interrupt rating. It is suitable for residential and light commercial applications where space and reliability are key.

• Supports up to 30 circuits and is designed for 4-wire wiring configurations.

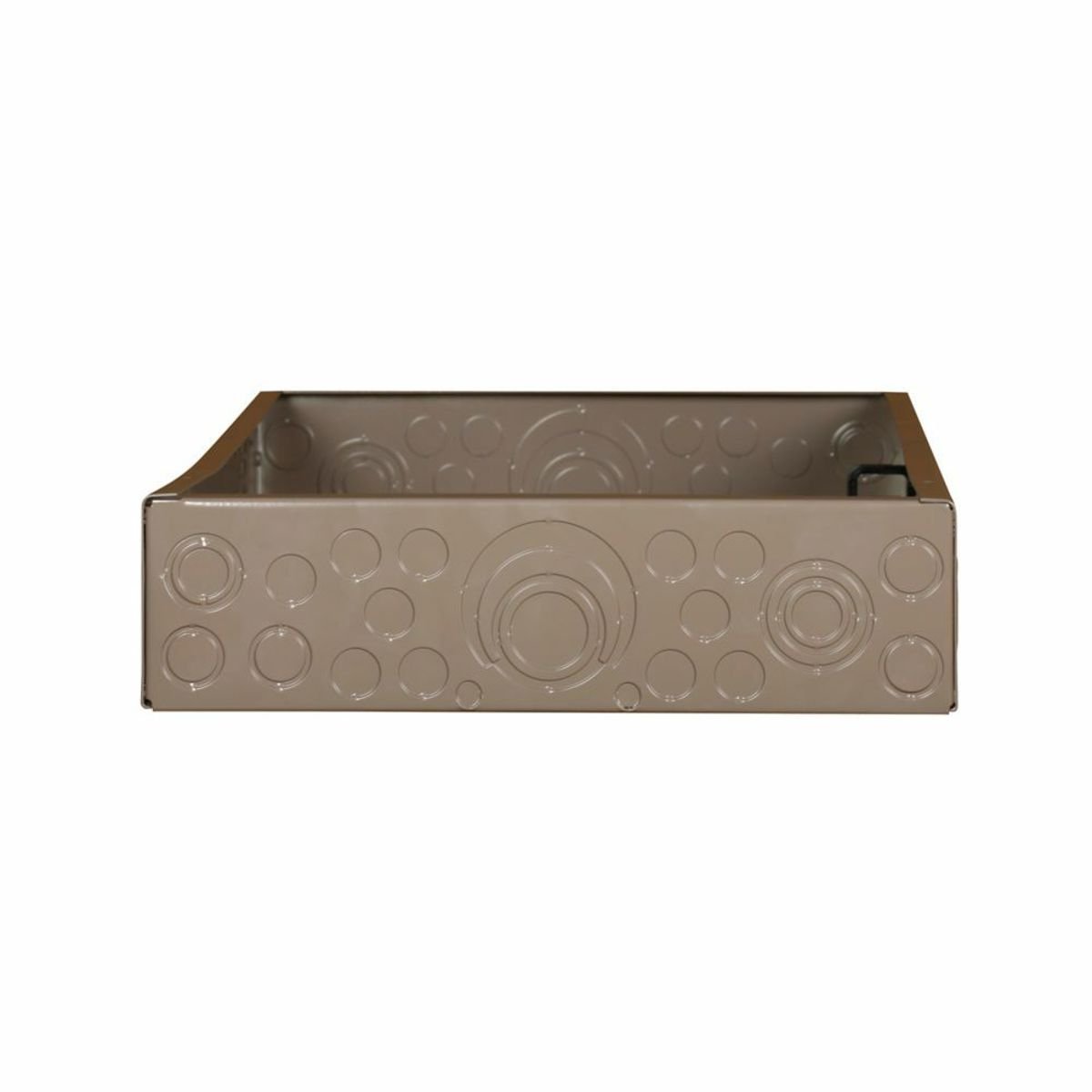

• Constructed with a durable metal housing and NEMA 1 enclosure.
• Compatible with wire sizes from 4 AWG to 300 kcmil.

Product Highlights

This Eaton loadcenter is efficient in distributing electricity from the utility to various home circuits, facilitating the supply of power to lights and outlets.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 782113097923

Technical Specifications

• Catalog Number: CH30L3225D
• Voltage Rating: 208Y/120/240 VAC
• Amperage Rating: 225 A
• Number of Poles: 30
• Number of Spaces: 30
• Dimensions: 29.13 in L x 14.31 in W x 3.88 in H
• Enclosure Type: NEMA 1
• Interrupt Rating: 10 kA
• Wire Size: 4 AWG to 300 kcmil
• Mounting Type: Flush/Plug-On
