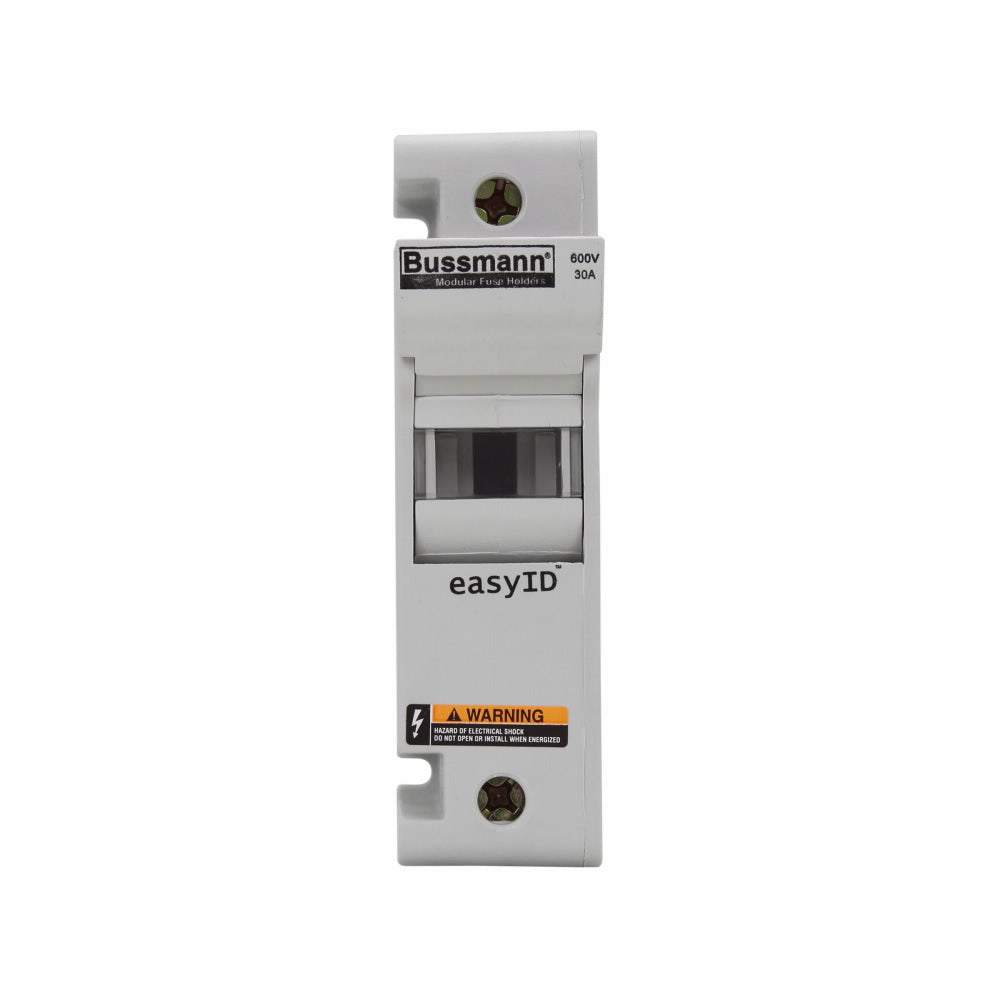

Eaton CH30J1 Finger Safe Modular Fuse Holder 30 A (1 Pole)

Product Description

Eaton CH30J1 is a Bussmann CH Series finger-safe modular fuse holder rated 30 A and 600 VAC/VDC. It accepts Class J fuses (LPJ, JKS, DFJ), accommodates fuses 2.25 in long and 0.81 in diameter, and uses a box lug connection accepting 18 to 1 AWG conductors. The module mounts on 35 mm DIN rail or panel, has a thermoplastic housing with tin-plated copper parts, an EasyID window, and IP20 finger-safe construction. Dimensions: 1.28 in L x 2.83 in W x 4.59 in H; temperature rating 85 °C.

• Rated 30 A, 600 VAC/VDC; compatible with Class J fuses (LPJ, JKS, DFJ).
• Mounts to 35 mm DIN rail or panel; box lug connection accepts 18 to 1 AWG.
• Thermoplastic housing with tin-plated copper parts; EasyID window and IP20 finger-safe construction.

Product Highlights

Single-pole Class J modular fuse holder, 30 A, 600 VAC/VDC, DIN-rail or panel mount, EasyID window

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH30J1
• Country of Origin: China

Technical Specifications

• Manufacturer: Eaton (Bussmann)
• Manufacturer Part Number: CH30J1
• Series: CH Series
• Product Type: Finger safe modular fuse holder
• Class / Fuse Type: Class J (LPJ, JKS, DFJ compatible)
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 1
• Mounting Type: 35 mm DIN rail / Panel
• Connection Type: Box lug
• AWG Range: 18 to 1 AWG
• Fuse Length: 2.25 in
• Fuse Diameter: 0.81 in
• Dimensions: 1.28 in L x 2.83 in W x 4.59 in H
• Material: Thermoplastic housing; tin-plated copper parts
• Temperature Rating: 85 °C
• Safety / Construction: IP20 finger-safe; lockout/tagout capable; EasyID window
• Standards / Approvals: CE; CSA 6225-01; CSA C22.2 No. 39; CSA File No. LR47235; IEC 60529; RoHS Compliant; UL 512; UL File No. E14853; UL Guide IZLT
• Interrupt Rating: 200 kA
• UPC: 051712630825
• EAN: 5027590161817
• Country of Origin: China
