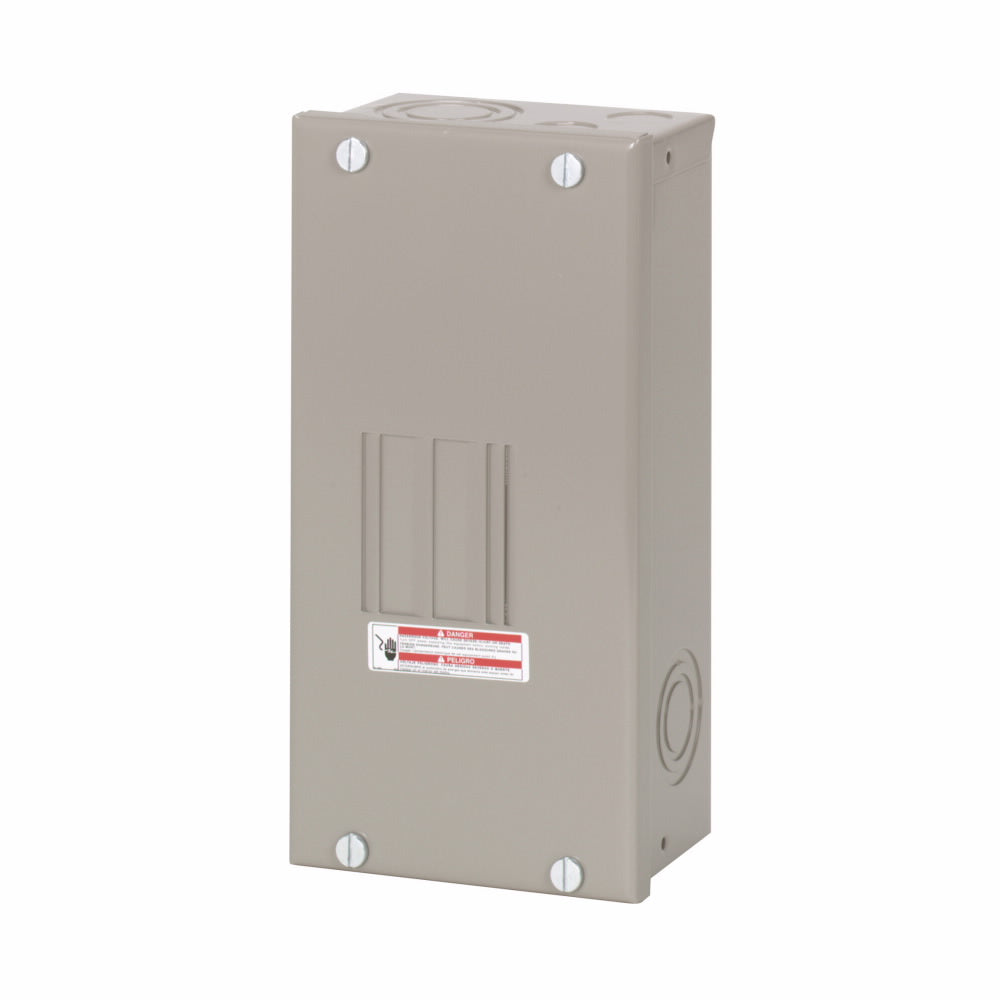

EATON CH2L70SP 1-Phase Standard Main Lug Load Center, 120/240 VAC, 70 A, 4 Poles, 25 kA Interrupt

Product Description

The EATON Main Lug Load Center, model CH2L70SP, is designed for residential and light commercial applications. It operates at 120/240 VAC, with a capacity of seventy amps and a four-pole configuration. This load center is suitable for use with up to two circuits, making it ideal for a variety of electrical distribution needs.

• Designed for 120/240 VAC applications
• Rated for 70 amps with a 25 kA interrupt rating
• Includes NEMA 1 enclosure for indoor use

Product Highlights

This load center provides essential electrical distribution functions and comes with several key features that ensure efficient operation and safety.

Product Information

Standard Information

• Brand: EATON
• MPN: CH2L70SP

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 70 A
• Number of Poles: 4
• Number of Circuits: 2
• Bus Rating: 70 A
• Dimensions: 9.5 in L x 4.5 in W x 3.13 in H
• Wiring Configuration: 3-Wire
• Interrupt Rating: 25 kA
• Enclosure Type: NEMA 1
• Material: Metal housing
