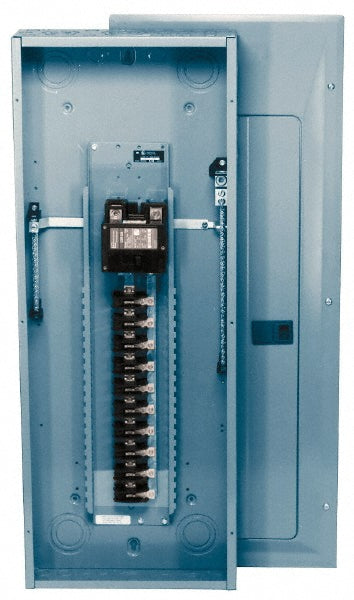

Eaton CH2L70FP CH Main Lug Loadcenter 70A

Product Description

The Eaton CH2L70FP is a CH main lug loadcenter. This 70A loadcenter is designed for power distribution and circuit protection in residential and light commercial applications. It distributes electricity throughout the home to feed lights and receptacles.

• Standard
• Copper bus material
• Metallic enclosure material

Product Highlights

The Eaton CH2L70FP loadcenter is a reliable solution for distributing power and protecting circuits in residential and light commercial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH2L70FP
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton CH main lug loadcenter
• Catalog Number: CH2L70FP
• UPC: 782114190432
• Product Length/Depth: 9.5 in
• Product Height: 3.13 in
• Product Width: 4.5 in
• Product Type: Main lug loadcenter
• Special features: Standard
• Type: Main lug only
• Amperage Rating: 70 A
• Bus material: Copper
• Feed type: Top/bottom
• Main circuit breaker: CH
• Mounting: Flush
• Number of circuits: 2
• Number of poles: Four-pole
• Number of spaces: 2
• Phase: Single-phase
• Voltage rating: 120/240 V
• Wire size: #14-2 AWG
• Box size: 5
• Enclosure: NEMA 1
• Enclosure material: Metallic
• Interrupt rating: 25 kAIC
• Number of wires: 3
• Family / Style: CH
• Amps: 70
• IP/NEMA Rating: NEMA 1
• Volts AC: 120/240
• Circuits: 4
• Mounting Type: Surface Mount
• Number Of Poles: 4
• Catalog ID: C-HCH2L70FP
• Dimensions: 9.5 in L x 4.5 in W x 3.13 in H
• Enclosure Box Size: NEMA 5
• Enclosure Type: NEMA 1
• Voltage Rating: 120/240 VAC
• Wiring Configuration: Three Wire
• Application: Residential, Light Commercial and Indoor Application
• Standard & Approvals: UL 50, UL 67
• Load Center Type: Main Lug
• Main Amperage: 70
• Number of Phases: 1
• Voltage: 120/240V AC
• NEMA Enclosure Rating: 1
• Body Material: Steel
• Installation Orientation: Flush
• Circuit Breaker Installation Type: Plug-in
• Overall Depth (Decimal Inch): 3.1300
• Overall Depth (mm): 79.40
• Overall Height (Decimal Inch): 9-1/2
• Overall Height (mm): 241.30
• Overall Width (Decimal Inch): 4-1/2
• Overall Width (mm): 114.30
• Wire Size (AWG): 14-2
• Recommended Environment: Indoor
• Standards Met: CSA E51287 Certified; Federal Specification W-C 375 b/Gen; UL 489; CSA E3624 Certified; EC Article 373.8; CSA File LR87196 Certified; UL Listed File E11713; Article 408.34 of NEC; NEMA; UL Listed File E8741
• UNSPSC Code: 39121100
• Brand: Eaton - Cutler Hammer
• Current Rating: 70 A
• Enclosure Rating: NEMA 1
• Manufacturer Part Number: CH2L70FP
• Unit of Measure: EA
• UPC Code: 782114190432
• Wire Size: #14-2 AWG AWG
• UNSPSC: 39121101
• Housing Material: Metal
• Breaker Type: CH
