EATON CH2L40SP 1-Phase Standard Main Lug Load Center, 120/240 VAC, 40 A, 4 Poles, 25 kA Interrupt

Product Description

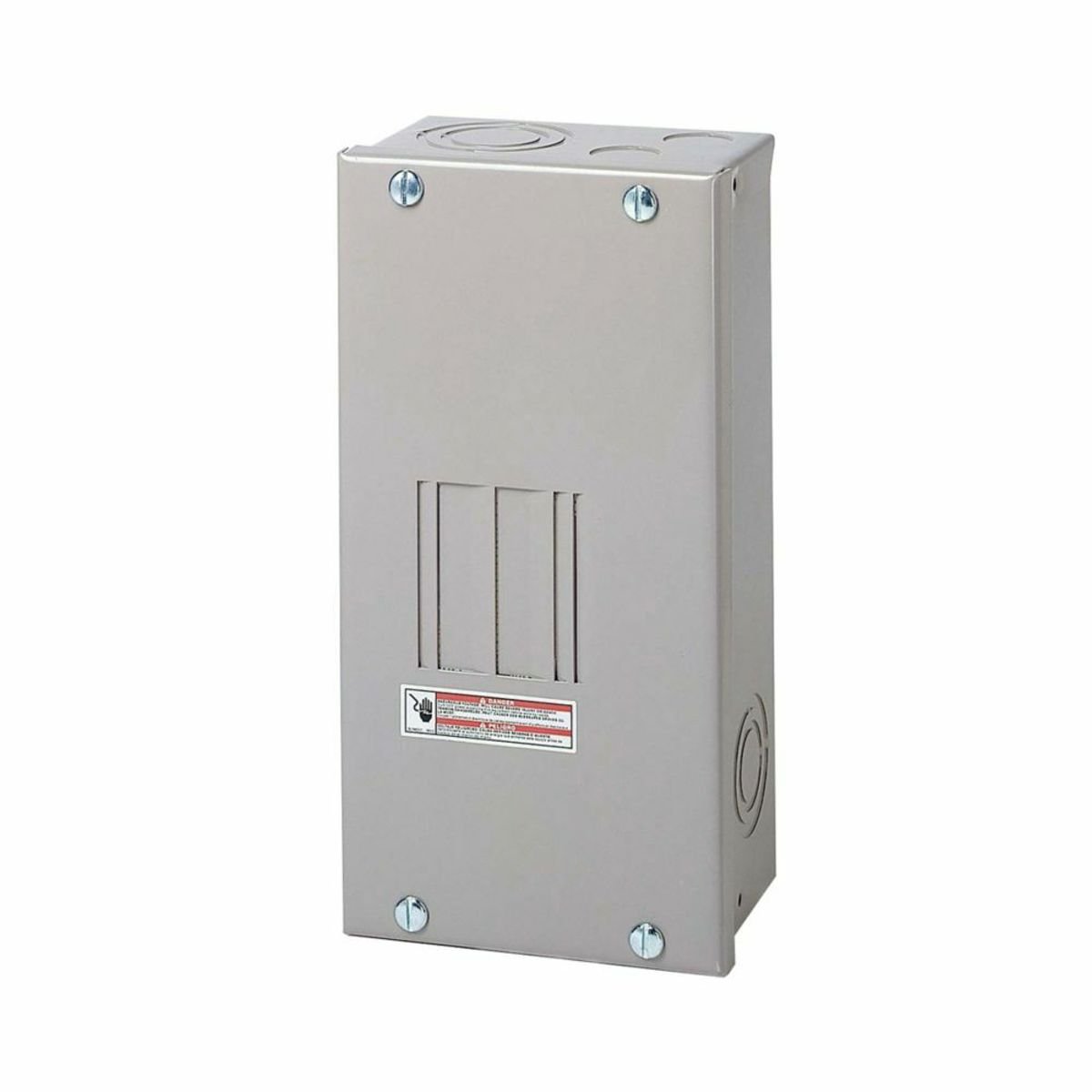

The Eaton CH2L40SP is a one-phase standard main lug load center with a voltage rating of 120/240 VAC and an amperage rating of forty amps. This load center features four poles and has an interrupt rating of twenty-five kA. Designed for residential and light commercial use, this load center provides reliable circuit protection and power distribution.

• Type CH breakers included for optimal circuit protection.
• Surface or plug-on mounting options available.
• Constructed with a metal housing for durability.

Product Highlights

Ideal for feeder or branch circuit applications in residential settings, the Eaton main lug load center can effectively manage electrical distribution, ensuring safe and efficient power flow throughout your property.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH2L40SP

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 40 A
• Number of Poles: 4
• Bus Rating: 40 A
• Dimensions: 22.2 in L x 15.1 in W x 4.1 in H
• Enclosure Type: NEMA 1
• Wire Size: 14 to 6 AWG
• Wiring Configuration: 3-Wire
• Housing Material: Metal
• Interrupt Rating: 25 kA
• Number of Spaces: 2
• Number of Circuits: 2
• Mounting Type: Surface/Plug-On
