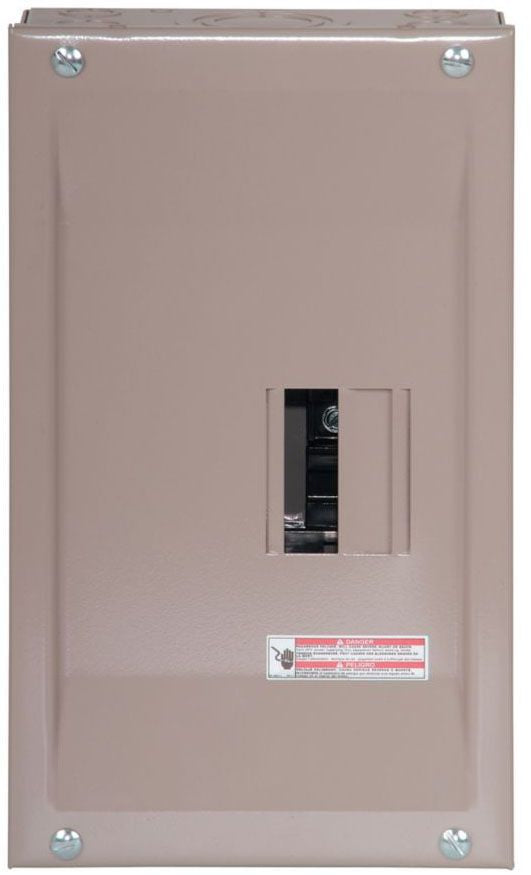

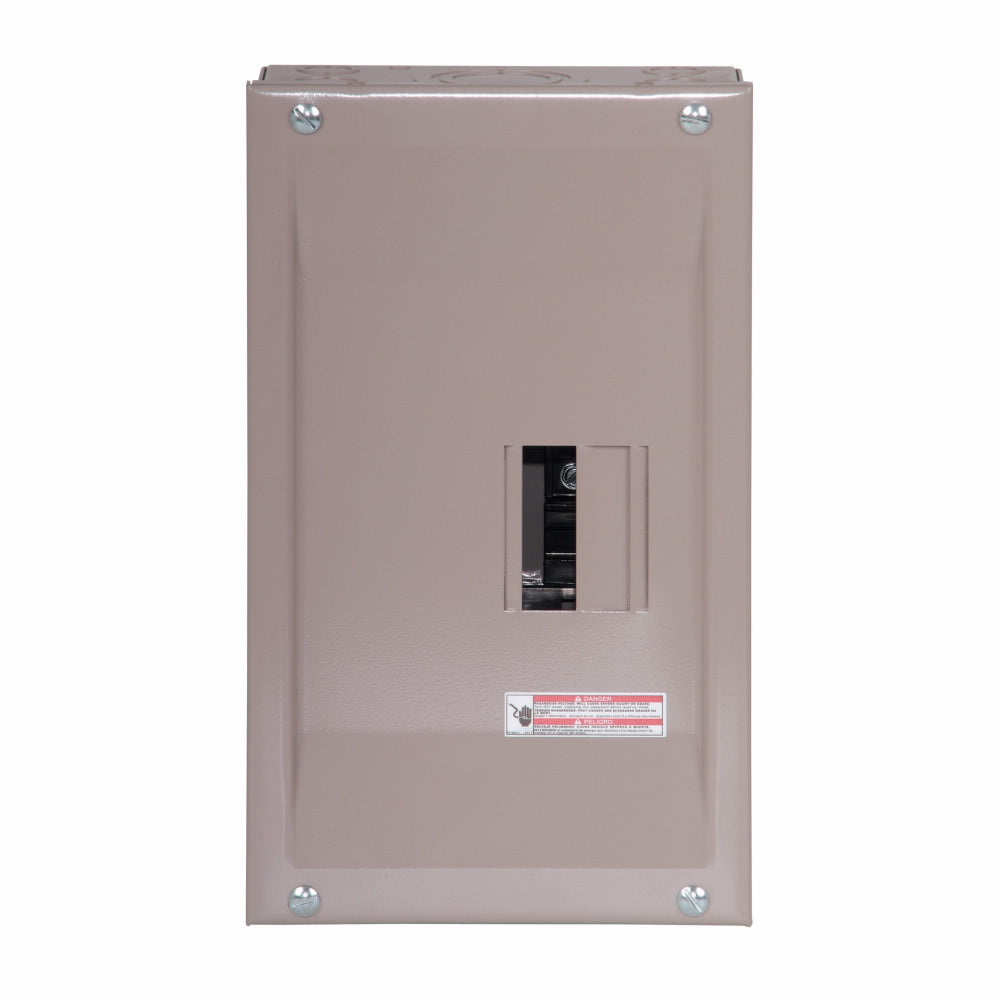

EATON CH2L125SP Type CH Single-Phase Main Lug Load Center, 120/240 VAC, 125 A, 4 Poles, 25 kA Interrupt

Product Description

The EATON CH2L125SP is a single-phase main lug load center designed for residential and light commercial use. It operates at 120/240 VAC and supports a maximum current of 125 Amps with a 25 kA interrupt rating. The product accommodates two circuits and features a four-pole configuration. This load center provides a robust solution for power distribution, ensuring reliable circuit protection.

• Rated for 120/240 VAC with a 125 Amp capacity
• Constructed with a metal housing for durability
• NEMA 1 enclosure suitable for indoor applications

Product Highlights

This load center is intended for use in various applications where electrical power distribution and control are necessary. It is easy to install and can be used for overhead or underground feed configurations.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH2L125SP

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 4
• Number of Circuits: 2
• Housing Material: Metal
• Enclosure Type: NEMA 1
• Dimensions: 9.5 in L x 4.5 in W x 3.13 in H
• Interrupt Rating: 25 kA
