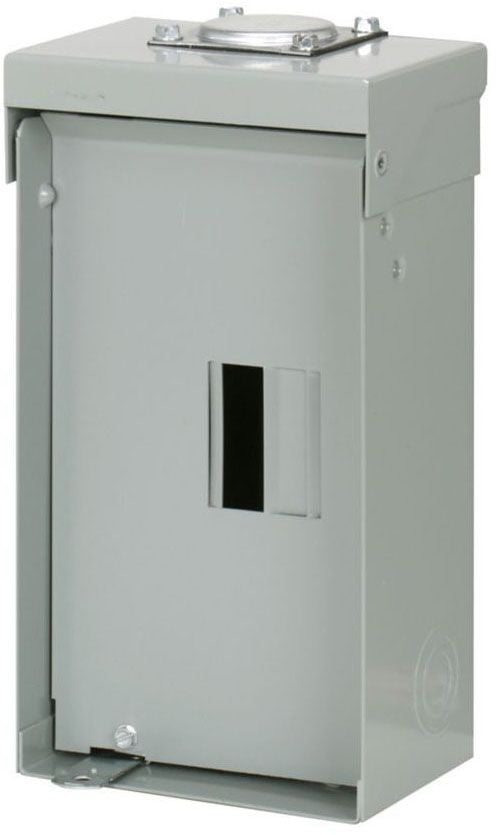

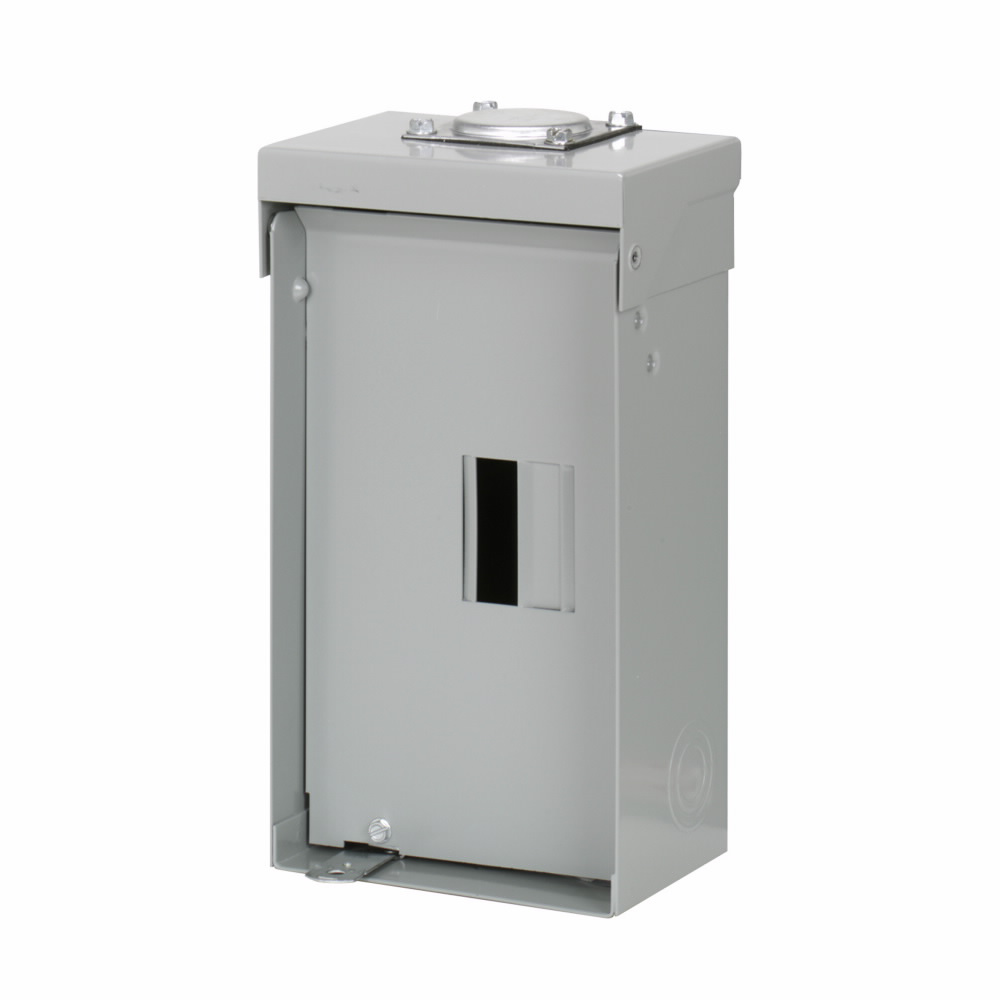

EATON CH2L125RP 1-Phase Standard Main Lug Load Center, 120/240 VAC, 125 A, 4 Poles, 25 kA Interrupt

Product Description

The EATON CH2L125RP is a 1-Phase standard main lug load center designed for 120/240 VAC systems. This load center has a 125 Amp rating and features a four-pole setup with a 25 kA interrupt rating. It is suitable for both residential and light commercial applications. The unit comes with two circuits and is designed for surface or plug-on mounting in a NEMA 3R enclosure. The housing is constructed from metal for durability.

• Voltage Rating: 120/240 VAC
• Phase Configuration: 1-Phase, 3-Wire
• Dimensions: 9.5 in L x 4.5 in W x 3.13 in H

Product Highlights

This load center is designed with a focus on efficiency and reliability. It accommodates wire sizes from 4/0 to 1 AWG.

Product Information

Standard Information

• Manufacturer: EATON
• Catalog Number: CH2L125RP

Technical Specifications

• Amperage Rating: 125 A
• Number of Circuits: 2
• Enclosure Type: NEMA 3R
• Wire Size: 4/0 to 1 AWG
• Housing Material: Metal
• Interrupt Rating: 25 kAIC
• Standard Approvals: UL 67, UL 50
