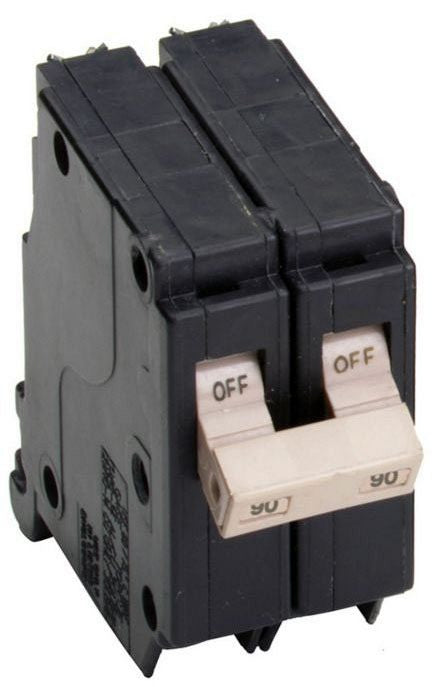

EATON CH290 Type CH Standard Circuit Breaker, 120/240 VAC, 90 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic Trip

Product Description

The EATON CH290 is a Type CH Standard Circuit Breaker designed for use in residential and commercial applications. This breaker operates at 120/240 VAC and has a 90 Amp capacity. The unit features a thermal magnetic trip mechanism and is rated for a 10 kA interrupt. It is suitable for various wiring configurations from ten to one aught AWG copper or aluminum wire.

• Rated for both residential and commercial use
• Designed with a quick-make, quick-break mechanism
• Includes a common trip for multi-pole applications

Product Highlights

This circuit breaker provides reliable protection against overloads and circuit faults, thus reducing the risk of nuisance tripping.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: CH290

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 90 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Common/Thermal Magnetic
• Dimensions: 3-1/4 x 1-1/2 x 3-3/4 inches
• Mounting Type: Plug-On
• Enclosure Type: NEMA 1/3R
• Temperature Rating: 60 to 75 degrees Celsius
