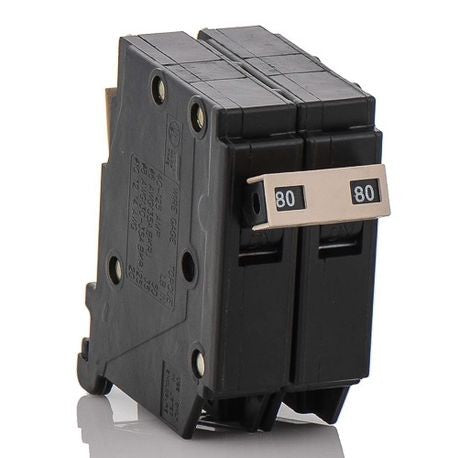

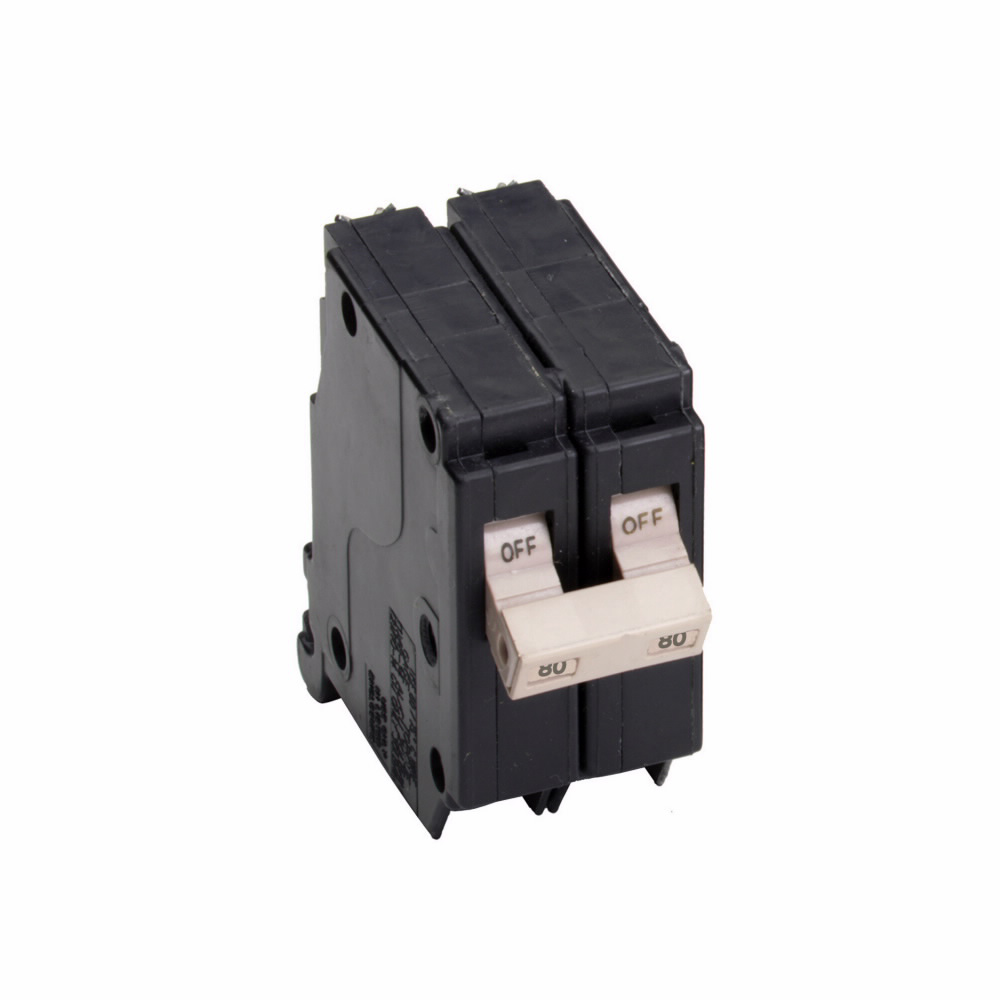

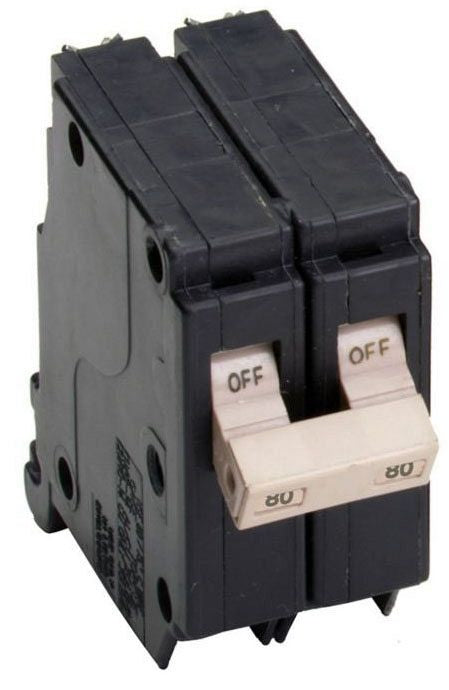

EATON CH280 Type CH Standard Molded Case Circuit Breaker, 120/240 VAC, 80 A, 10 kA Interrupt, 2 Poles, Common Trip

Product Description

EATON CH280 is a Type CH thermal magnetic circuit breaker that provides efficient overload protection for 120/240 VAC systems. Designed for residential and light commercial applications, this device features an 80 Amp rating and a 10 kA interrupt capability. Its two-pole configuration ensures effective circuit management in various installations.

• Two-pole design for 120/240 VAC applications.
• 80 Amp rating suitable for residential and light commercial use.
• 10 kA interrupt rating for reliable circuit protection.

Product Highlights

EATON CH280 circuit breaker features a thermal-magnetic trip curve that reduces nuisance tripping on mild overloads while providing rapid response to severe short circuits.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: CH280

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 80 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Common
• Dimensions: 3/4 in W x 3-1/2 in D x 3 in H
• Wire Size: 10 to 1/0 AWG
• Material: Bakelite
• Temperature Rating: 40 deg C
• Enclosure Type: NEMA 1/3R
• Actuator Type: 2-Position Handle
