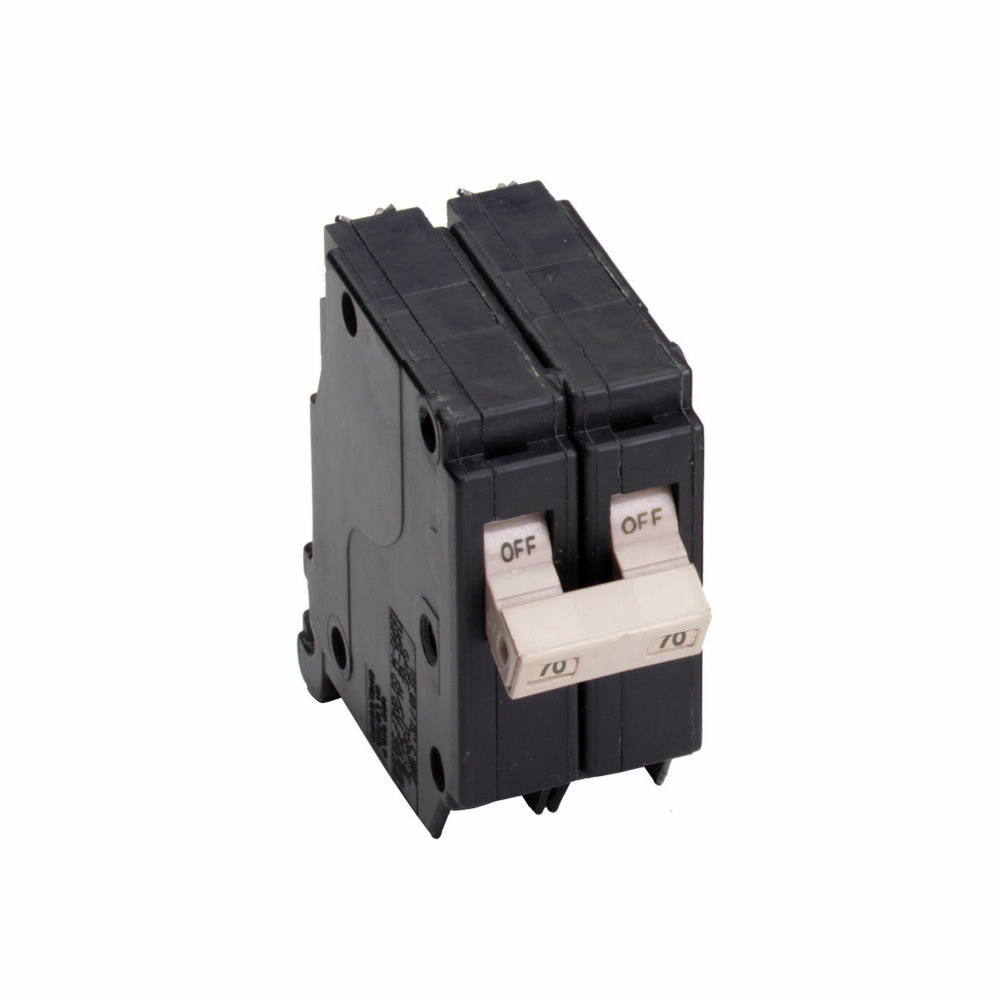

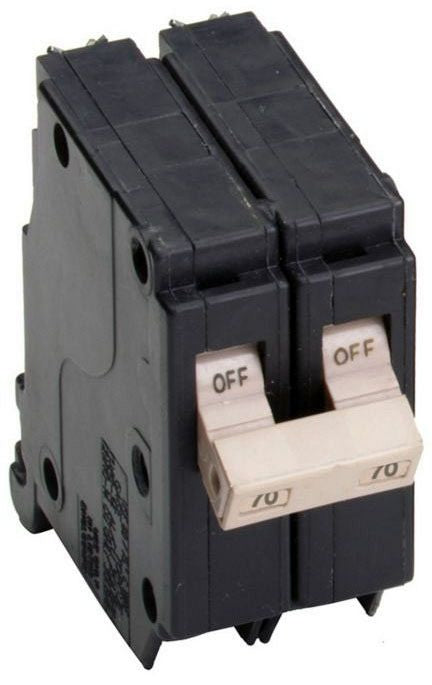

EATON CH270 Type CH Thermal Magnetic Circuit Breaker, 120/240 VAC, 70 Amp, 10 kAIC, 2-Pole

Product Description

The EATON CH270 Type CH Thermal Magnetic Circuit Breaker is designed for use in power distribution applications. This circuit breaker operates at 120/240 VAC and is rated for 70 amps with a 10 kA interrupting capacity. The two-pole design provides reliable protection and helps prevent electrical overloads.

• Compact 3/4 inch design allows more breakers per panel
• Tri-drive screw enables the use of flat, Robertson, or Philips drivers
• Common trip feature ensures simultaneous operation of all poles

Product Highlights

Uses advanced thermal magnetic technology to minimize nuisance tripping.

Product Information

Standard Information

• Brand: EATON
• MPN: CH270

Technical Specifications

• Type: Type CH Standard
• Voltage Rating: 120/240 VAC
• Amperage Rating: 70 A
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Common
• Dimensions: 3/4 inch W x 3-1/2 inch D x 3 inch H
• Wire Size: 14 to 2 AWG
• Material: Bakelite
• Enclosure Type: NEMA 1/3R
• Temperature Rating: 40 deg C
