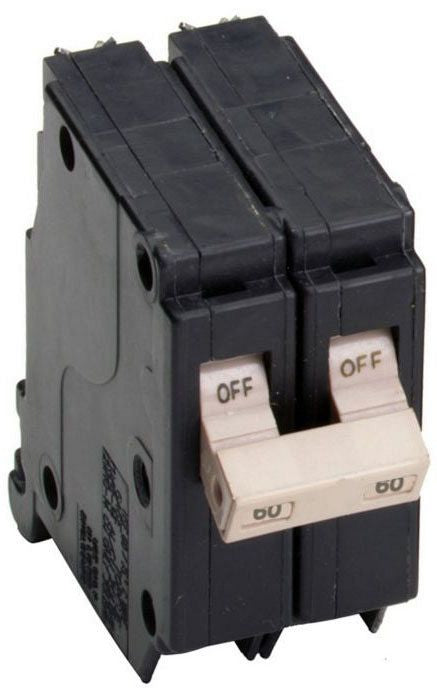

EATON CH260 Type CH Thermal Magnetic Circuit Breaker, 120/240 VAC, 60 Amp, 10 kAIC, 2-Pole

Product Description

The EATON CH260 is a Type CH thermal magnetic circuit breaker designed for 120/240 VAC systems. This breaker provides effective power distribution for a variety of applications. It features a rated current of 60 Amps and an interrupting capacity of 10 kAIC. It is suitable for use in residential and commercial load centers.

• Two-pole design for dual-phase systems
• Plug-on mounting for easy installation
• Accepts wire sizes from fourteen to two AWG

Product Highlights

This circuit breaker includes a common thermal magnetic trip that avoids nuisance tripping on mild overloads while responding quickly to severe conditions. The trip flag feature indicates whether the breaker has tripped or been turned off.

Product Information

Standard Information

• Brand: EATON
• MPN: CH260

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Trip Type: Common/Thermal Magnetic
• Mounting Type: Plug-On
• Wire Size: 14 to 2 AWG
• Dimensions: 3 in L x 1.5 in W x 3.5 in H
• Standards/Approvals: UL 489
• Country of Origin: Dominican Republic
• Temperature Rating: 60 to 75 deg C
