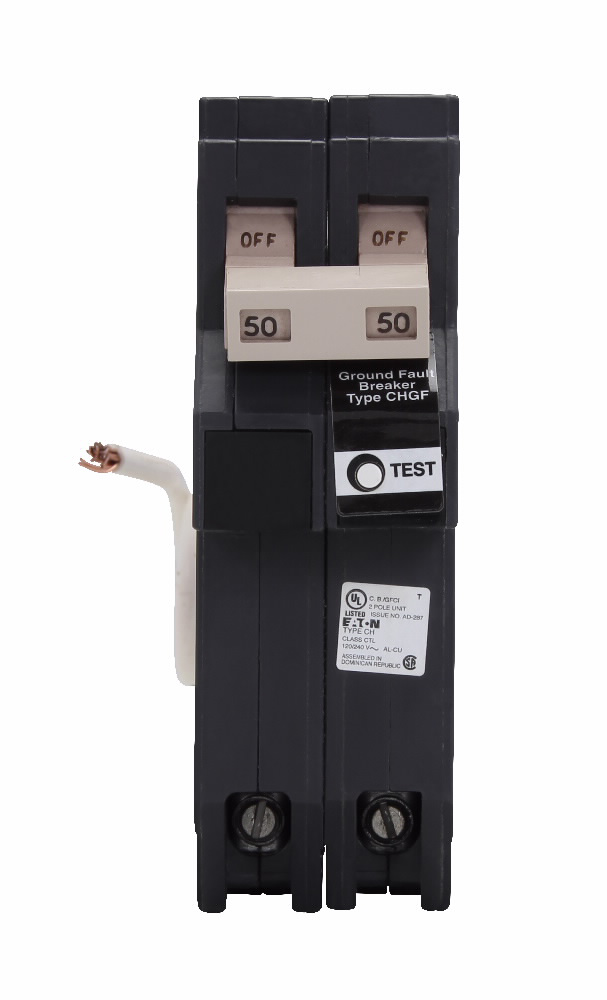

Eaton CH250GFT Type CH Ground Fault Self-Test Circuit Breaker, 120/240 VAC, 50 Amp, 10 kA Interrupt, 2 Poles, Common Trip

Product Description

EATON CH250GFT Type CH Ground Fault Self-Test Circuit Breaker operates at 120/240 VAC and has a 50 amp rating with a 10 kA interrupt capacity. This two-pole breaker provides reliable protection against ground faults and is designed to trip in case of electrical leakage.

• Type CH self-test mechanism
• Common trip function to enhance safety
• Effective in wet environments

Product Highlights

This circuit breaker is engineered for safety in areas where electricity could come into contact with moisture. Ideal for residential settings, it provides immediate circuit disruption upon detecting ground faults, significantly reducing the risk of electrical shock and fire.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH250GFT

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Trip Type: Common
• Wire Size: 14 to 4 AWG
• Temperature Rating: 60 to 75 deg C
• Enclosure Type: NEMA 1/3R
• Dimensions: 4-1/2 in L x 2-3/4 in W x 2 in H
