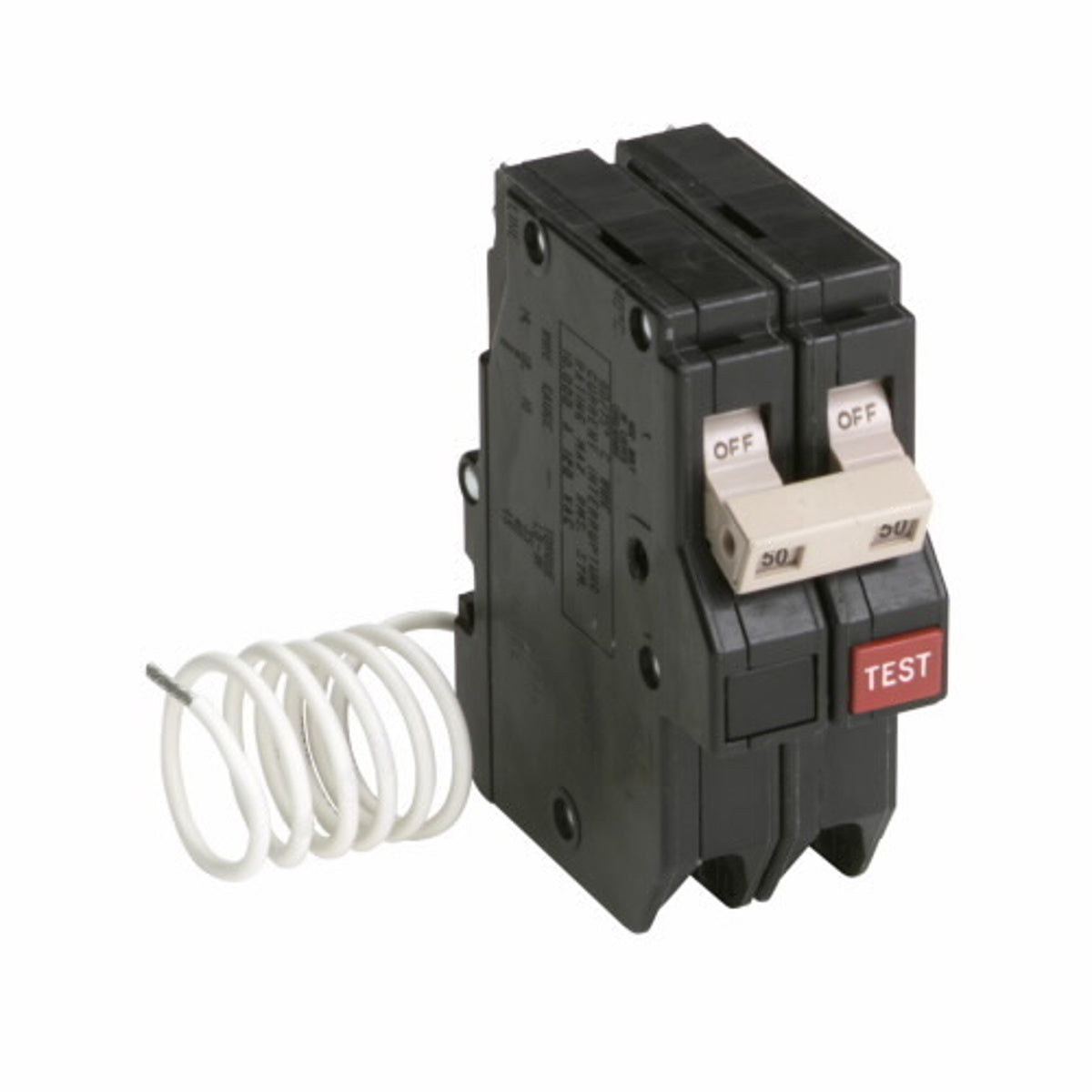

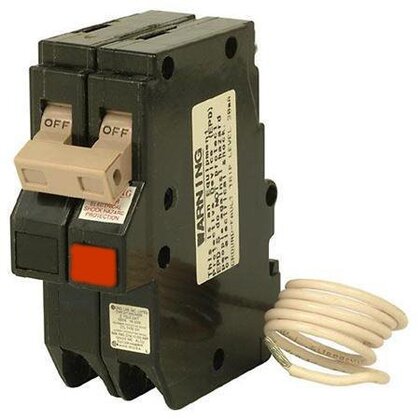

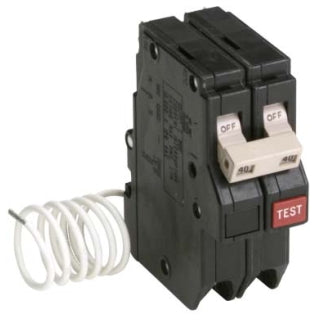

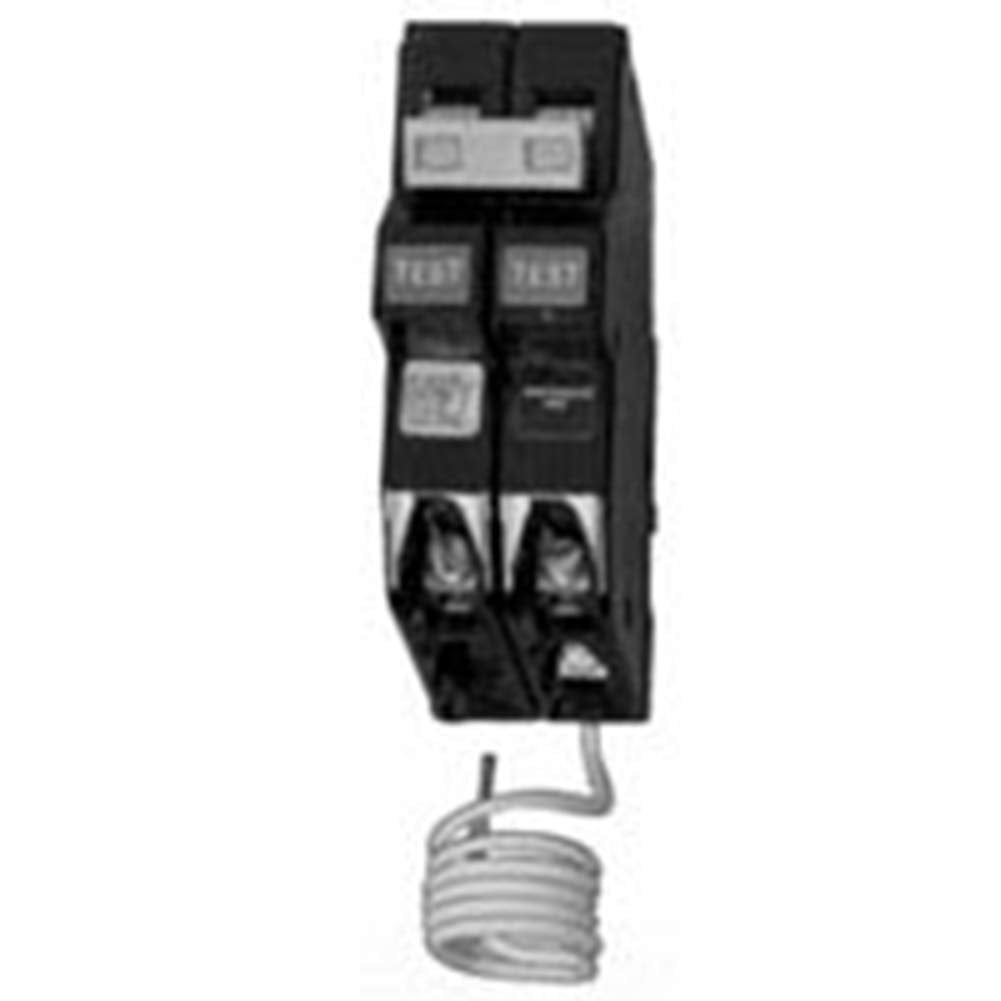

Eaton CH250GF Miniature Circuit Breaker, 50 Amp, 2 Pole, 120/240V

Product Description

EATON's residential CH250GF circuit breakers provide overload protection. These Type CH circuit breakers trip to the OFF position. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting to short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating.

• Features a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
• Type CH Circuit Breakers Trip to the Off Position, Eliminating Nuisance Callbacks
• 2-pole type CHGFIs are designed for use in 3-wire, 120/240 VAC circuits, 120 VAC multiwire circuits employing common, neutral and 2-wire, 240 VAC circuits obtained from a 120/240 VAC source

Product Highlights

The EATON CH250GF circuit breakers provide overload protection and eliminate nuisance callbacks. Suitable for datacenters, marine vessels, renewable energy, and conventional energy applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH250GF
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: CH250GF
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Amperage Rating: 50 A
• Application: Datacenters - IT Space: CI and Hyper Converged|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy
• Connection: Plug-on
• Interrupt Rating: 10 kAIC
• Number of Poles: 2
• Standard: UL 489
• UPC: 782113912899
• GTIN: 00782113912899
• Item Type: GFCI circuit breakers
• Trip Type: Common, Thermal Magnetic
• Voltage Rating: 120/240 V AC
• Mounting: Plug ON
• Trip Sensitivity: 5 Milliampere
• Terminal Type: Clip (Line)
• Used On: Loadcenter
• Wire Size: 14 to 6 AWG (Aluminum/Copper)
• Actuator Type: Handle
• Enclosure: NEMA 3R
• Standards/Approvals: UL 67|UL 489|UL File No. E8741
• Temperature Rating: 60 to 75 deg C
• Certifications: UL 489
• Catalog Notes: Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces
• Product Type: GFCI circuit breakers
• Used with: Type CH Loadcenters
• Circuit protection: Ground fault circuit interrupter
• Indicators: GFI
• Main circuit breaker: CH
• Family / Style: CH
• Interrupting Rating: 10000 Ampere
• Frame Type: CH
• Model: CH
