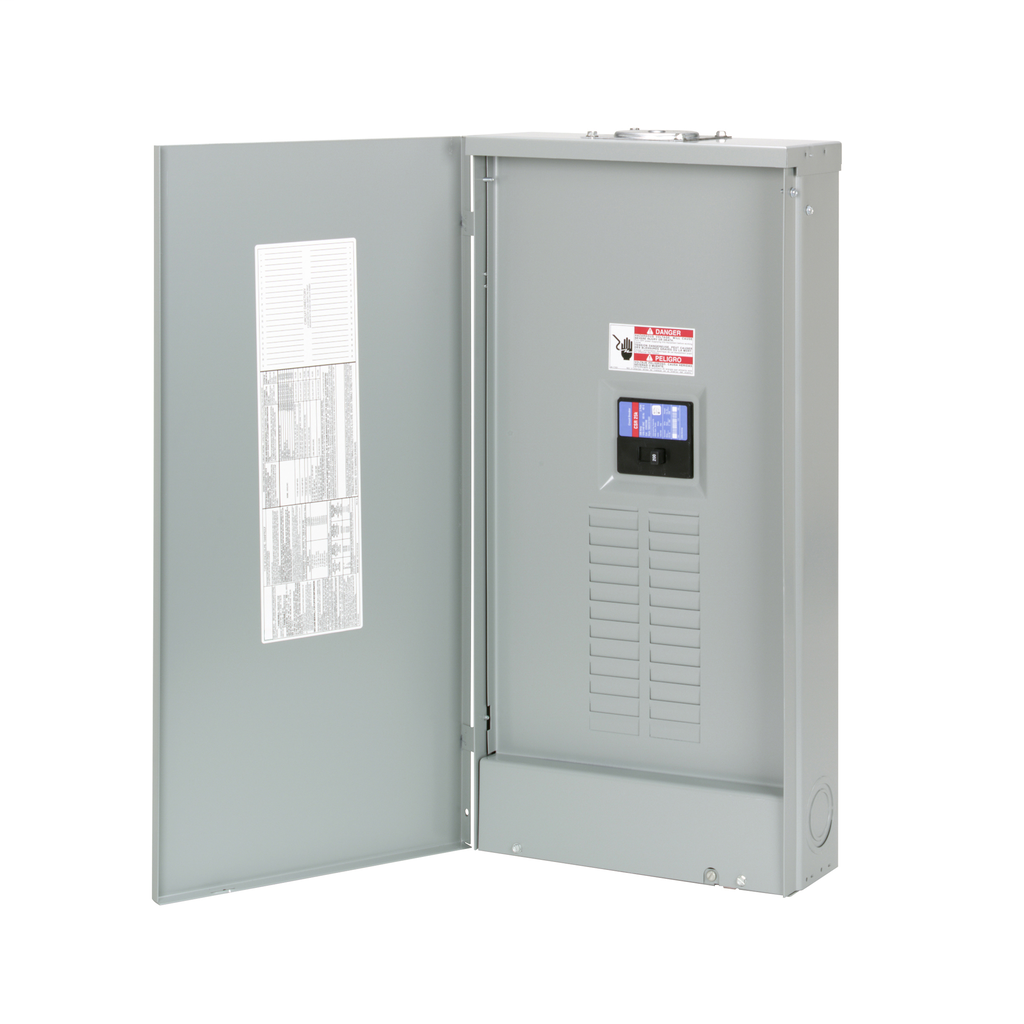

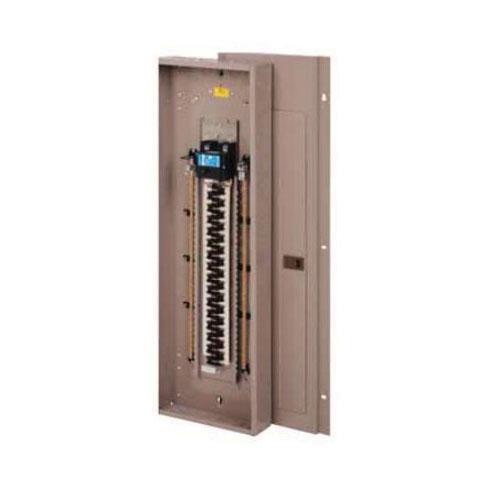

Eaton CH24BPN100E Load Center 100A 3/4 inch 24 Poles

Product Description

The Eaton CH24BPN100E is a load center designed for residential and light commercial power distribution. This product features a single-phase setup with twenty-four circuits and accommodates wire sizes from two AWG to three hundred kcmil. Rated for one hundred amperes, it operates at a voltage of one hundred twenty to two hundred forty VAC and complies with UL standards.

• Single-phase design with a capacity of one hundred amps
• Twenty-four circuits and poles for extensive distribution
• NEMA 1 enclosure suitable for indoor applications

Product Highlights

This load center is equipped with plug-on breakers and is suitable for systems needing reliable circuit protection.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH24BPN100E

Technical Specifications

• Breaker Type: CH/CSH
• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 24
• Number of Poles: 24
• Dimensions: 29.13 inches L x 14.31 inches W x 3.88 inches H
• Wire Size: 2/0 AWG to 300 kcmil
• Interrupt Rating: 25 kA
• Enclosure Type: NEMA 1
• Housing Material: Metal
• Mounting Type: Plug-On
