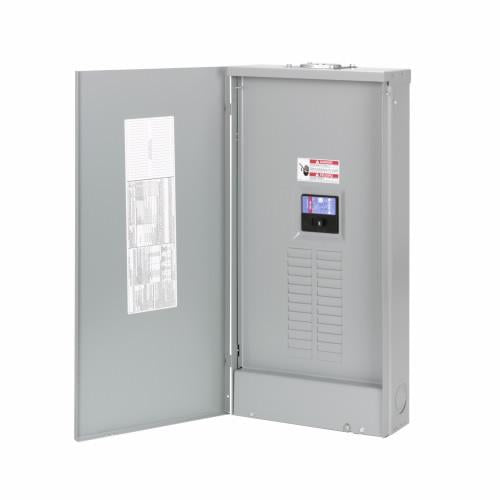

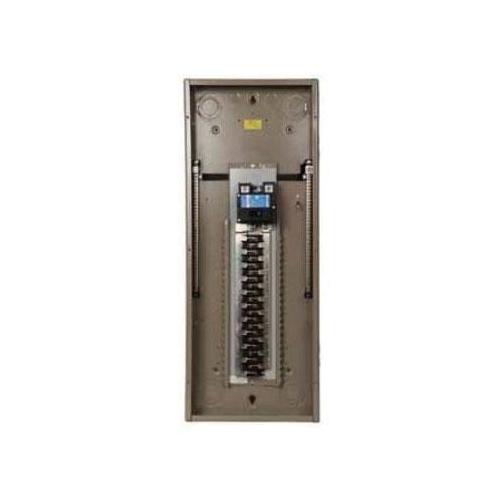

Eaton CH24B200E 120/240 VAC 200 Amp 1-Phase 3-Wire 3/4 Inch Main Breaker Load Center

Product Description

The Eaton CH24B200E is a main breaker load center designed for power distribution. This load center operates on 120/240 VAC and supports 200 amps with a single-phase, three-wire setup. It accommodates 24 circuits through a reliable and well-constructed unit.

• Compatible with 2/0 AWG to 300 kcmil wire sizes
• NEMA 1 enclosure for indoor applications
• 25 kA interrupt rating ensures safety during overloads

Product Highlights

This load center is appropriate for residential and light commercial use, efficiently distributing electricity from the utility to various circuits and receptacles.

Product Information

Standard Information

• Brand: Eaton
• MPN: CH24B200E

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Type: 1-Phase Type CH Standard
• Number of Poles: 24
• Number of Circuits: 24
• Dimensions: 29.13 in Length x 14.31 in Width x 3.88 in Height
• Enclosure Type: NEMA 1
• Housing Material: Metal
• Wire Size: 2/0 AWG to 300 kcmil
• Wiring Configuration: 3-Wire
• Interrupt Rating: 25 kA
