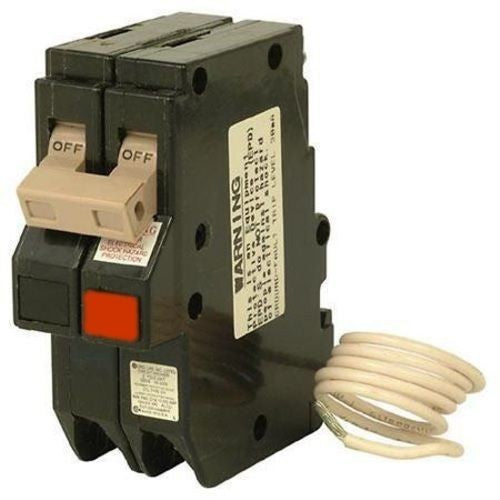

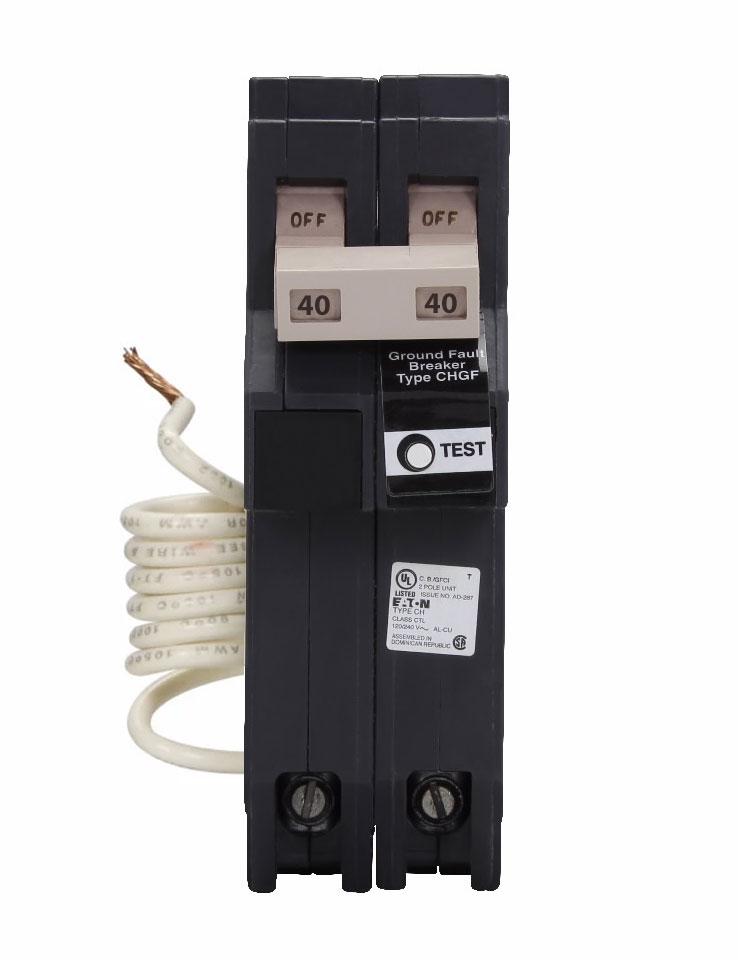

Eaton CH240GFT CH GFCI circuit breaker 40 A 120/240 V two-pole

Product Description

The Eaton CH240GFT is a two-pole CH GFCI circuit breaker designed for 120/240 V systems, providing ground fault protection. This 40 A breaker features a 10 kAIC interrupting rating and a common trip mechanism. It utilizes a plug-on connection and accommodates #14-4 AWG wiring, making it suitable for residential applications and areas requiring protection against electrical current leakage, such as kitchens and bathrooms. It includes ground fault self-test functionality.

• Features ground fault self-test and GFI protection for enhanced safety.
• Two-pole configuration with 40 A amperage and 120/240 V voltage rating.
• Offers a 10 kAIC interrupting rating, common trip, and plug-on connection.

Product Highlights

Provides ground fault protection with self-test functionality for enhanced safety in 120/240 V systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH240GFT
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: CH240GFT
• Manufacturer: Eaton
• Type: Ground Fault Circuit Breaker
• Width: 2.75 in
• Height: 2 in
• Length: 4.5 in
• Voltage: 120/240 V
• Amperage: 40 A
• Trip Type: Common
• Wire Size: #14-4 AWG
• Connection Type: Plug-on
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Conductor Size: 14-4 AWG
• Special Features: Ground Fault Self Test
• Standard: UL 489
• Trip Range: 5 mA
• Actuator Type: Handle
• Enclosure Type: NEMA 1/3R
• Temperature Rating: 60 to 75 deg C
• Phase: 1 Phase
• Protection: Thermal Magnetic
• Functions: Long-Time and Instantaneous Trip
• Voltage Type: AC
• Frame Type: CH
• Breaker Load Side Term Method: Lugs
• Certifications: UL 489, ARRA, Buy American Act, RoHS Compliant, UL 67, File No. E11713, File No. E8741, File No. E3624, File No. E51287, CSA Certified, CSA File No. LR87196
• Indicators: GFI
