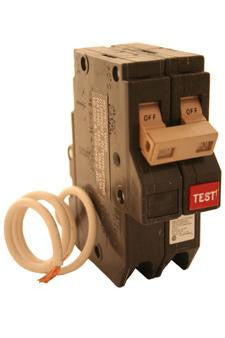

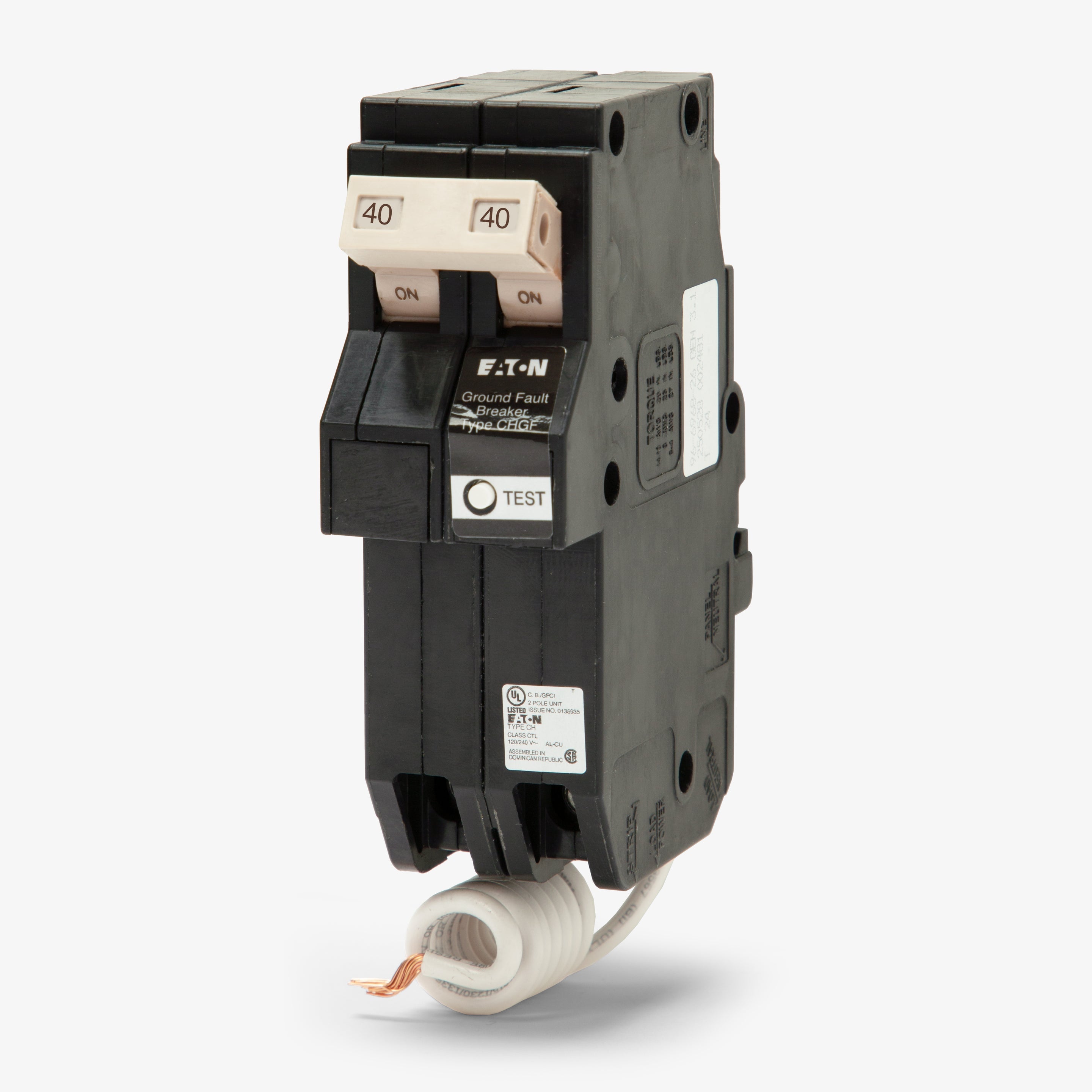

Eaton CH240GF Electrical 240 VAC 40 Amp 2-Pole Ground Fault Circuit Breaker

Product Description

The Eaton CH240GF is a ground fault circuit breaker with a 40 Amp current rating and a voltage of 120/240V. This two-pole breaker features a plug-on connection and is suitable for Type CH Loadcenters. It provides circuit protection with a 10 kAIC interrupt rating and is UL 489 certified.

• Ground fault circuit breaker
• Two-pole
• Plug-on connection

Product Highlights

Eaton CH240GF circuit breaker offers reliable ground fault protection for residential and commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH240GF
• Country of Origin: United States

Technical Specifications

• Type: Ground Fault Circuit Breaker
• Brand: Eaton
• Voltage: 120/240 Volt
• Amperage: 40 Amp
• Standard: UL 489
• Trip Type: Common
• Wire Size: 14-6 AWG
• Applications: Circuit Protection
• Conductor Size: 14-6 AWG
• Connection Type: Plug-on
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Series: CH
• Phase: 1
• Approval: UL
• Frame Type: CH
• Protection: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• For Use With: Load Centers
• Circuit Breaker Type: GFCI
• Mpn: CH240GF
• Upc: 786689217266
• Current Rating: 40 Amps
• Mounting Type: Plug-In Mount
• Material: Copper
• Item Package Quantity: 1
• Product Length/Depth: 6 in
• Product Height: 2 in
• Product Width: 2 in
