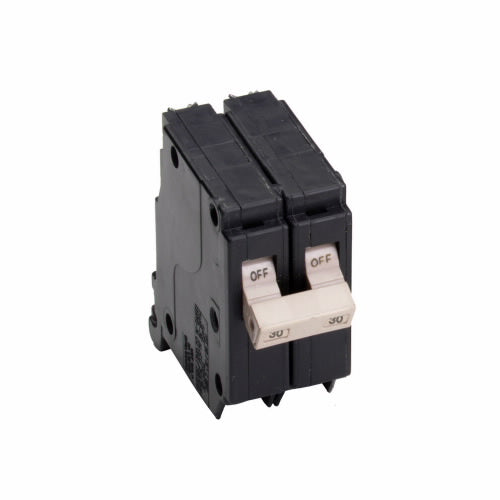

EATON CH230 Type CH Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles

Product Description

The EATON CH230 is a Type CH circuit breaker designed for use in residential and commercial power distribution systems. It operates at 120/240 VAC and has an amperage rating of thirty amps. This two-pole breaker is equipped with a ten kA interrupt rating, suitable for various electrical applications.

• Type CH design with a plug-on mounting for easy installation
• Compatible with Eaton Type CH load centers
• Common thermal magnetic trip for reliable circuit protection

Product Highlights

This circuit breaker provides essential protection against overloads and short circuits, ensuring safe and reliable operation in electrical systems.

Product Information

Standard Information

• Brand: EATON
• MPN: CH230

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Dimensions: 3.5 in Length x 1.5 in Width x 3.5 in Height
• Mounting Type: Plug-On
• Standard: UL 489
• Country of Origin: Dominican Republic
