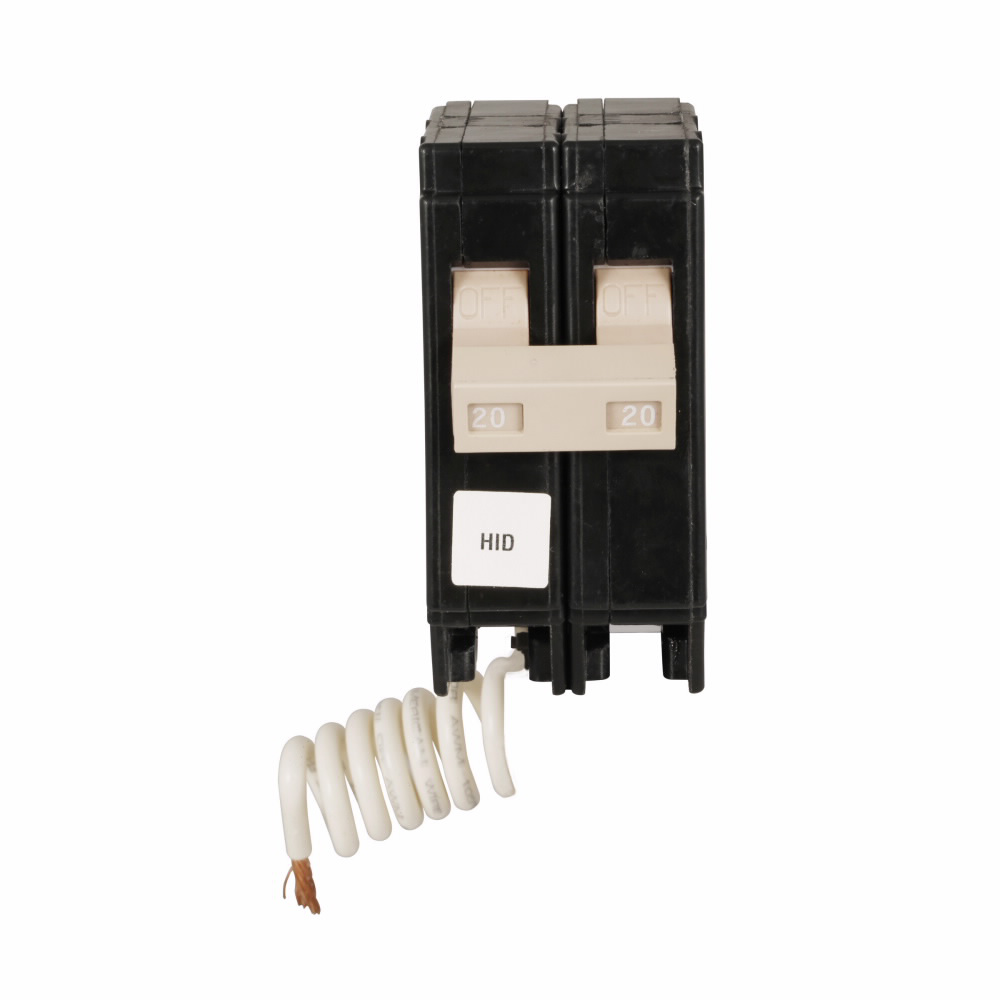

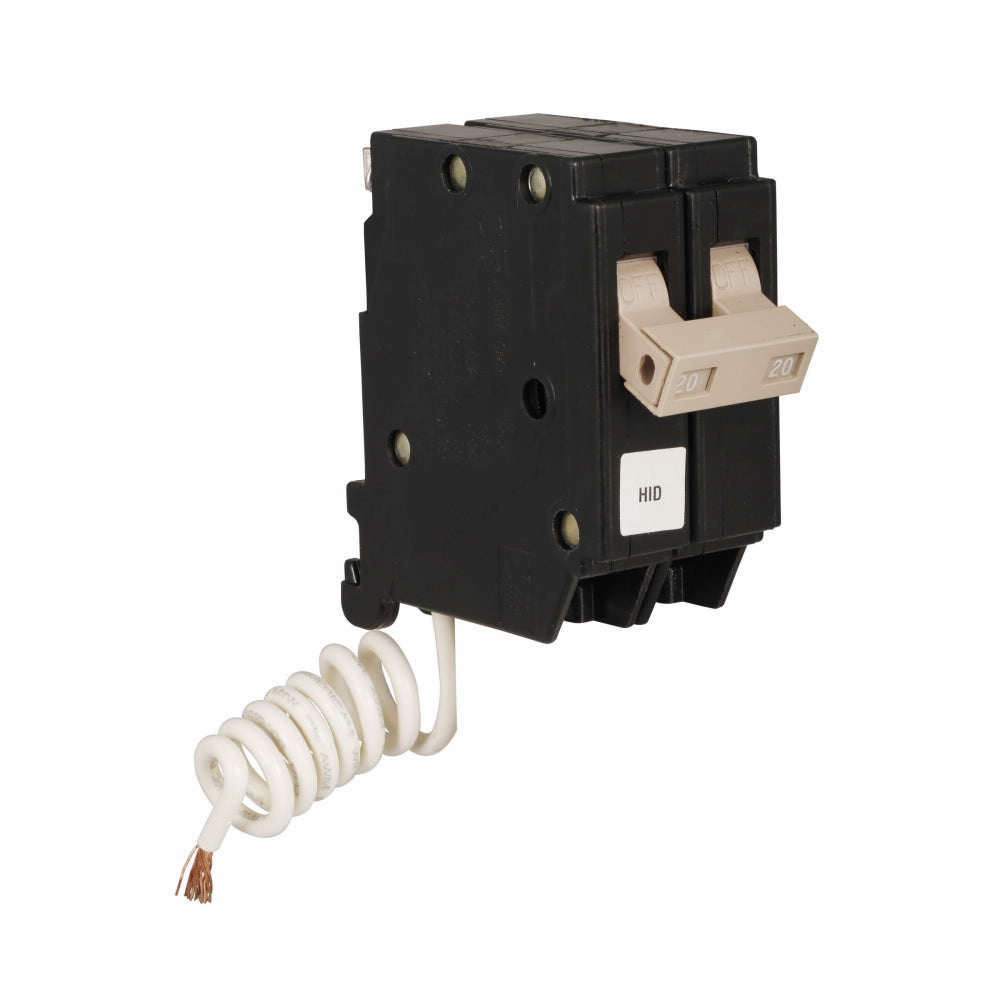

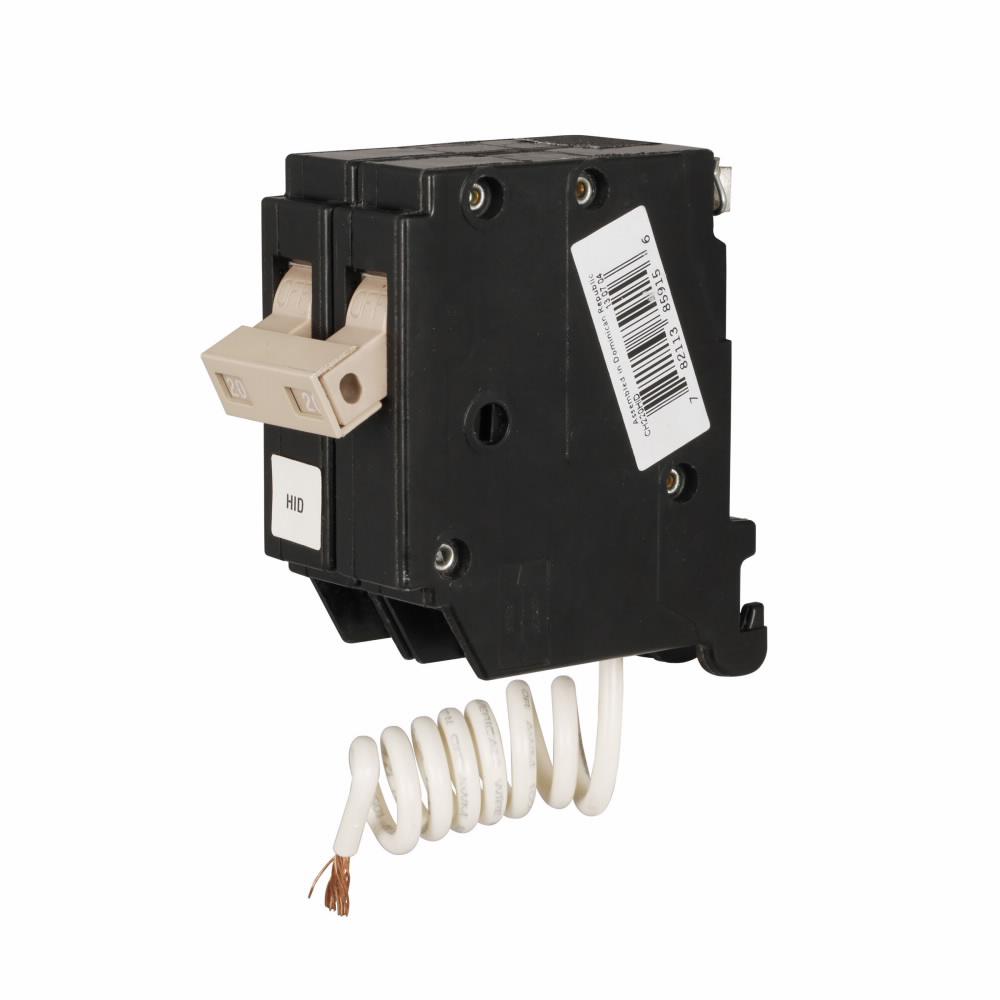

Eaton CH220HID CH Thermal Magnetic Circuit Breaker 20 A

Product Description

The EATON CH220HID is a thermal magnetic circuit breaker, designed as a Type CH 3/4-Inch high intensity discharge circuit breaker. Rated at 20 A and 10 kAIC, this two-pole breaker operates at 120/240V and features a common breaker trip. It is suitable for use with #14-8 AWG Cu/Al conductors and Type CH Loadcenters.

• Premium overload protection
• Trips to the OFF position, eliminating nuisance callbacks
• Thermal-magnetic trip curve avoids nuisance tripping on mild overloads

Product Highlights

Provides overload protection and avoids nuisance tripping with its thermal-magnetic trip curve.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH220HID

Technical Specifications

• Catalog Number: CH220HID
• UPC: 782113859156
• Product Length/Depth: 3.25 in
• Product Height: 3.375 in
• Product Width: 1.5 in
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: Type CH Loadcenters
• Voltage rating: 120/240 V
• Trip Type: Common breaker trip
• Circuit breaker type: CH
• Interrupt rating: 10 kAIC
• Main circuit breaker: CH
• Wire size: #14-8 AWG Cu/Al
• Number of poles: Two-pole
• Type: Type CH 3/4-Inch high intensity discharge circuit breaker
• Brand: Eaton - Cutler Hammer
• For Use With: Type CH loadcenters
• Manufacturer Part Number: CH220HID
• Poles: 2
• Volts AC: 120, 240
• Amps: 20
• Interrupt Rating AC: 10 kA
• Breaker Amperage Rating: 20 Amp
• Breaker Number of Poles: Two Pole
• Breaker Voltage Rating: 240 VAC
• Breaker UL Rating: UL 489
• Manufacturer: Eaton
• Component: Thermal Magnetic Circuit Breaker
• Breaker Overcurrent Protection Rating: 10 Ka
• Conductor Size: 14-8 AWG
• Voltage: 120/240 Volt
• Wire Size: 14-8 AWG
