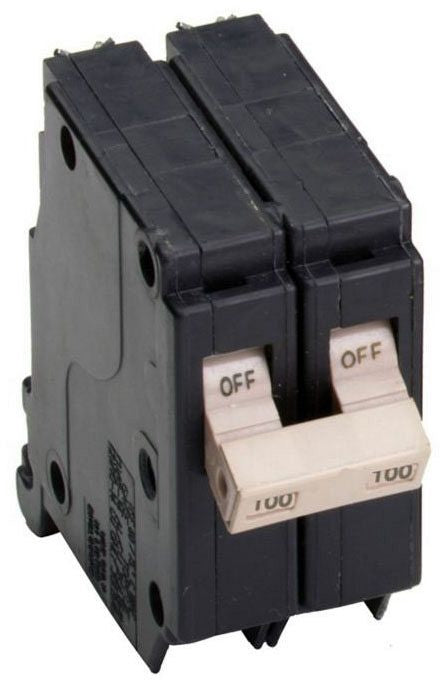

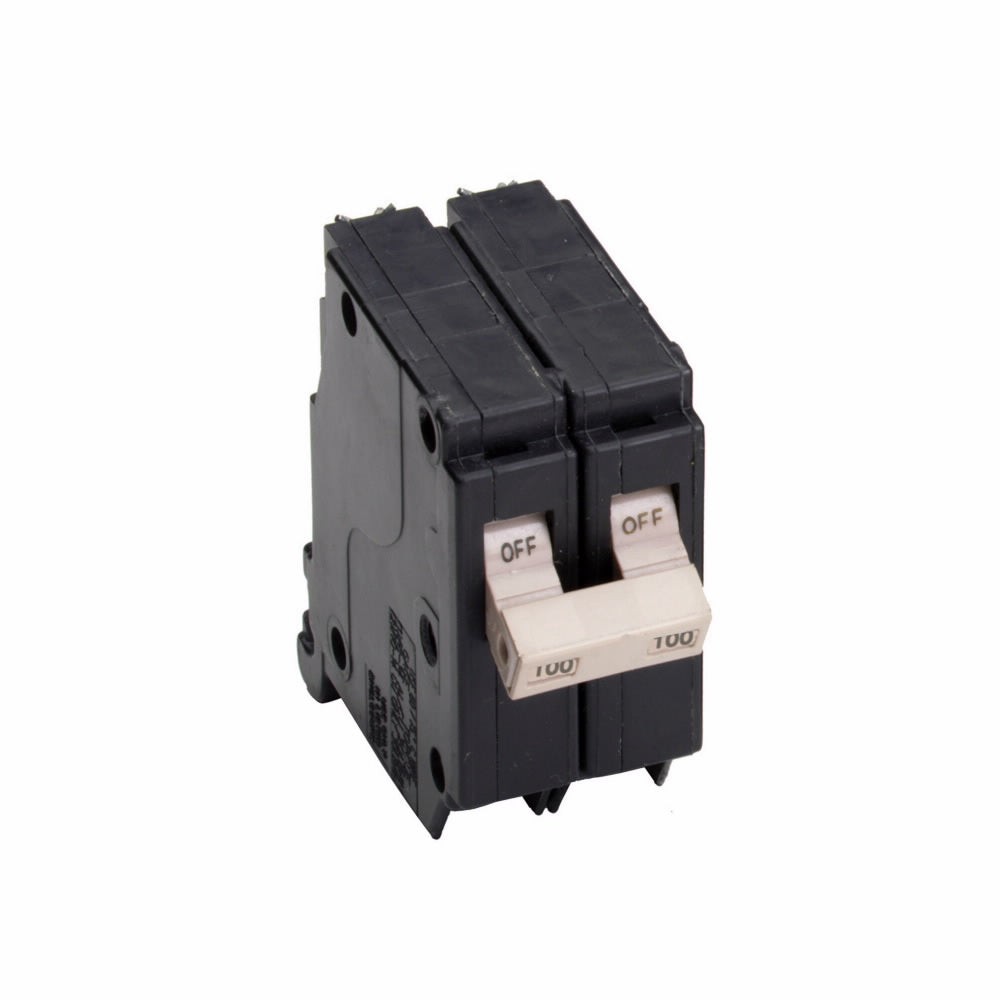

EATON CH2100 Type CH Thermal Magnetic Circuit Breaker, 120/240 VAC, 100 Amp, 10 kAIC, 2-Pole

Product Description

The EATON CH2100 Type CH Thermal Magnetic Circuit Breaker is designed for use in residential and commercial power distribution systems. It operates at 120/240 VAC and has a current rating of 100 Amps with a short-circuit interruption rating of 10 kA. This circuit breaker comes with two poles and employs thermal magnetic trip technology, which prevents nuisance tripping while effectively responding to overloads and short circuits.

• 100 Amp current rating
• Thermal magnetic trip mechanism
• Two pole configuration

Product Highlights

This circuit breaker enhances the safety of electrical systems by providing reliable overload protection. It differentiates between an actual trip and being turned off, thereby reducing unnecessary service calls.

Product Information

Standard Information

• Brand: EATON
• MPN: CH2100

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 2
• Enclosure Type: NEMA 1/3R
• Trip Type: Common/Thermal Magnetic
• Temperature Rating: 60 to 75 deg C
• Dimensions: 3-1/2 in L x 1-1/2 in W x 3-1/4 in H
