Product Description

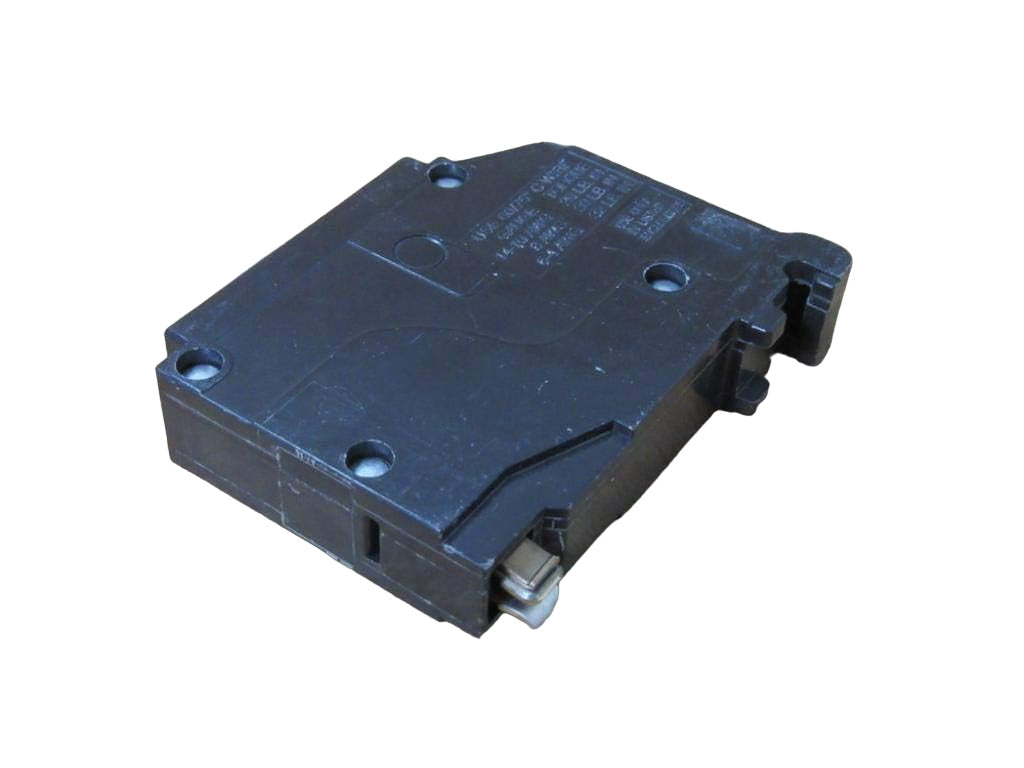

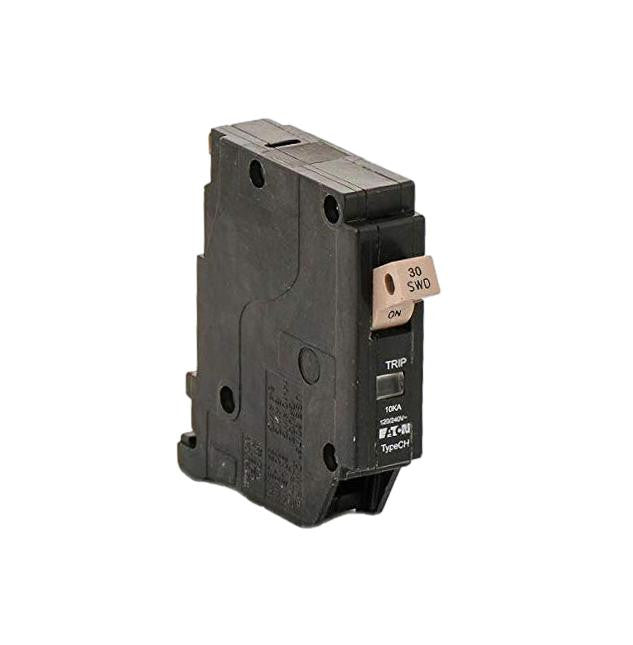

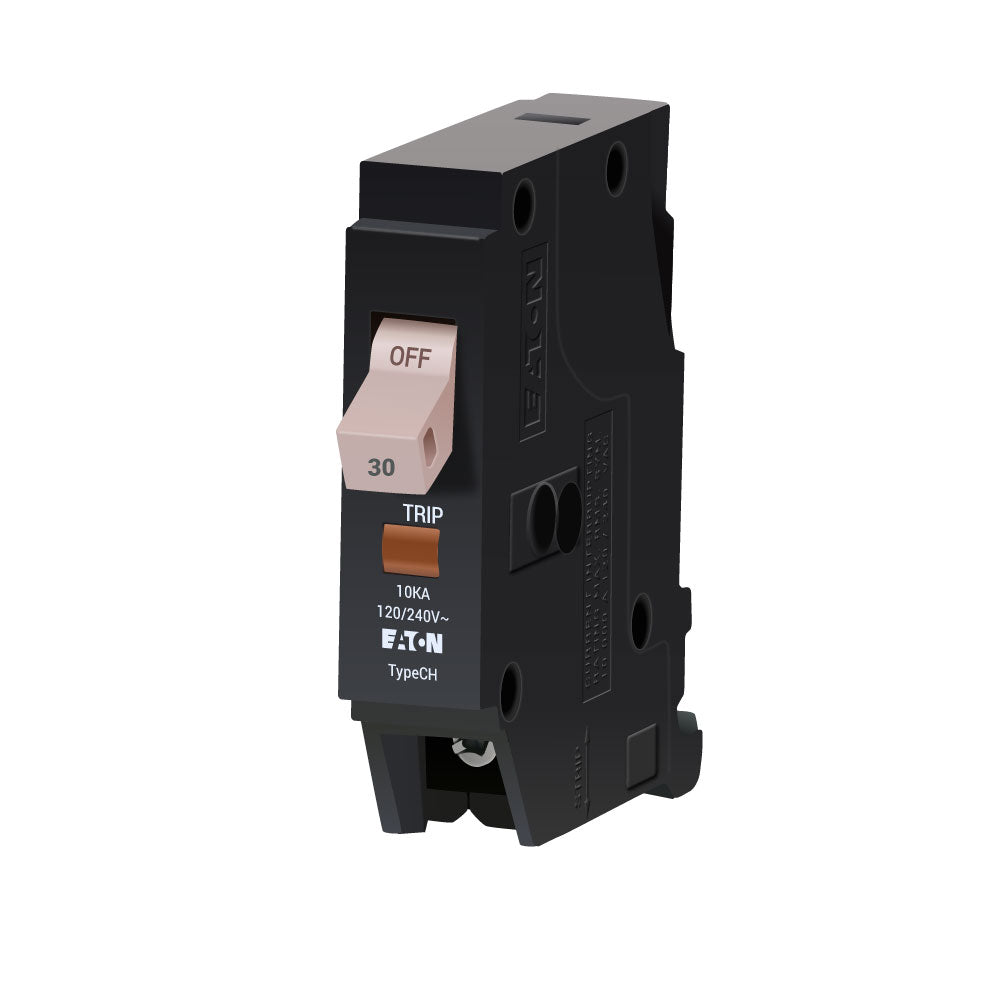

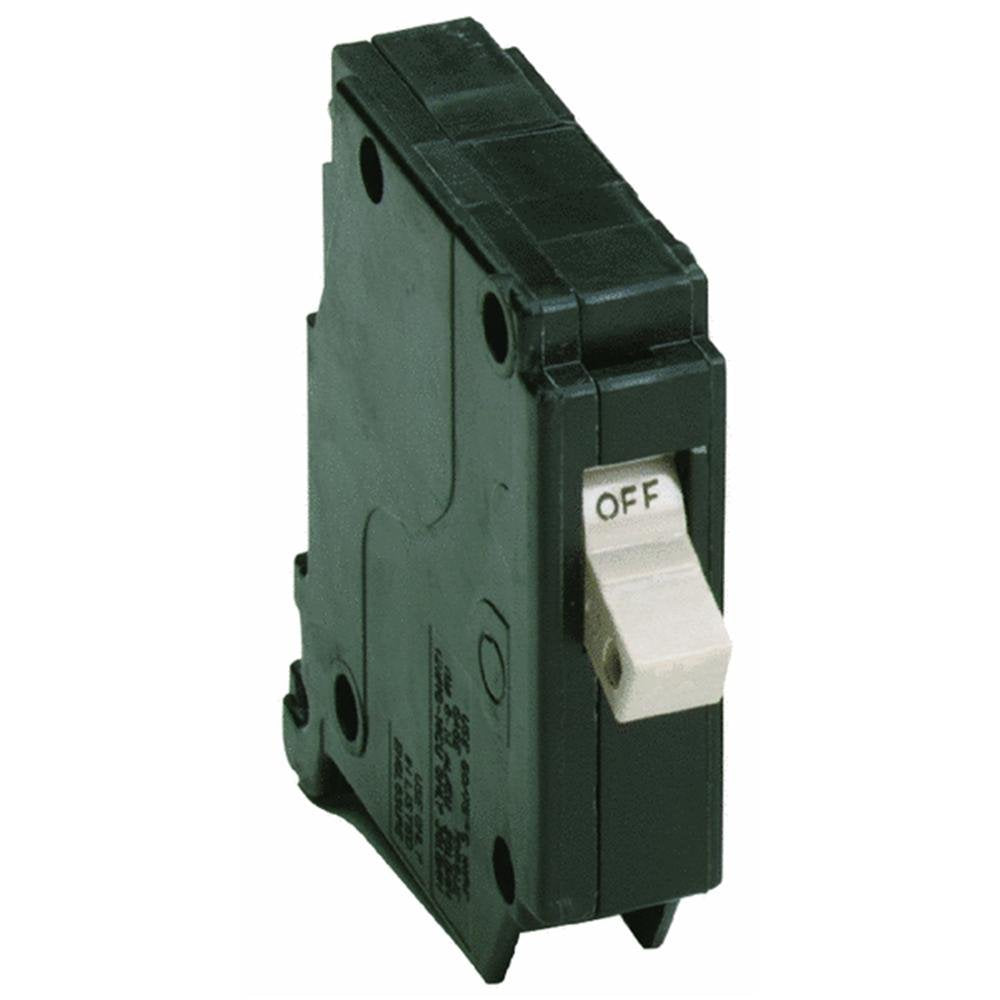

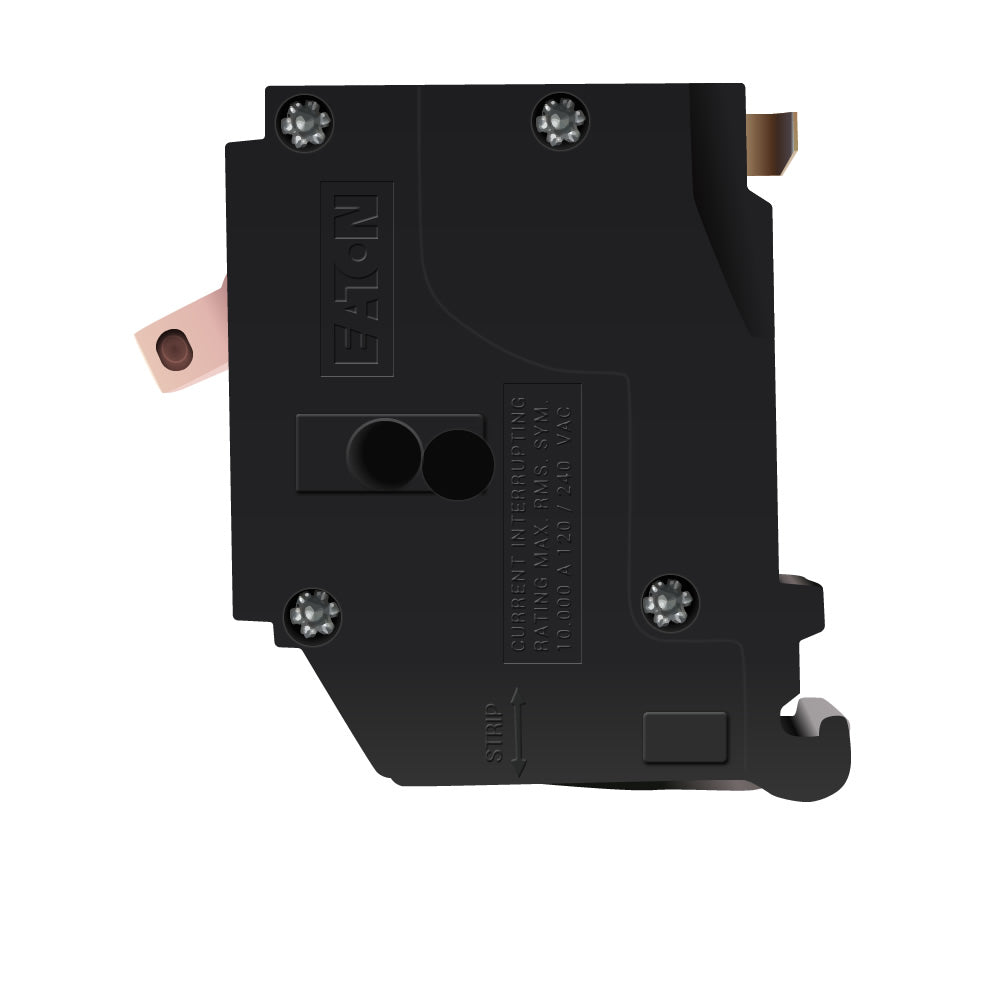

The Eaton CH130 Type CH 3/4-inch standard circuit breaker is designed for circuit protection applications. This single-pole, 30A plug-on breaker is suitable for installation in both vintage Cutler-Hammer and contemporary Eaton Type CH panelboards. It delivers a 10kAIC rating and includes box lug terminals that accept either one 14-8 AWG or two 14-10 AWG conductors.
- Reliable defense for 120V branch circuits
- Installs into vintage Cutler-Hammer and contemporary Eaton Type CH panelboards
- Box lug terminals accept either one 14-8 AWG or two 14-10 AWG conductors
Product Highlights
The Eaton CH130 circuit breaker provides reliable circuit protection with easy installation and robust construction.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CH130
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: CH130
-
Manufacturer: Eaton
-
Brand: Eaton
-
Application: Circuit Protection
-
Interrupt Rating: 10 kAIC
-
Number of Poles: 1
-
Standard: UL 489
-
UPC: 782113101668
-
GTIN: 00782113101668
-
Length: 3 IN
-
Width: .75 IN
-
Height: 3 IN
-
Voltage Rating: 120/240V
-
Product Type: CIRCUIT_BREAKER
-
Amperage: 30A
-
Series: CH
-
Voltage: 120/240VAC, 48VDC
-
Phase: 1
-
AIC Rating: 10kA @ 120/240VAC, 10kA @ 48VDC
-
Mounting Style: Plug-On
-
Terminal Type: Box Lugs
-
For Use With: Type CH Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: (1) 14-8 AWG, (2) 14-10 AWG
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Standards: CSA C22.2, UL 489
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated
-
Current Rating: 30 Amps
-
Circuit Breaker Type: Standard
-
Maximum Amperage: 30 A
-
Number of Phases: 1
-
Material: ABS/Plastic
-
Suitable For: Exterior, Interior
-
Operation Method: On/Off
-
Current Type: AC
-
Control Style: Switch
-
Number in Pack: 1
-
Model: CH
