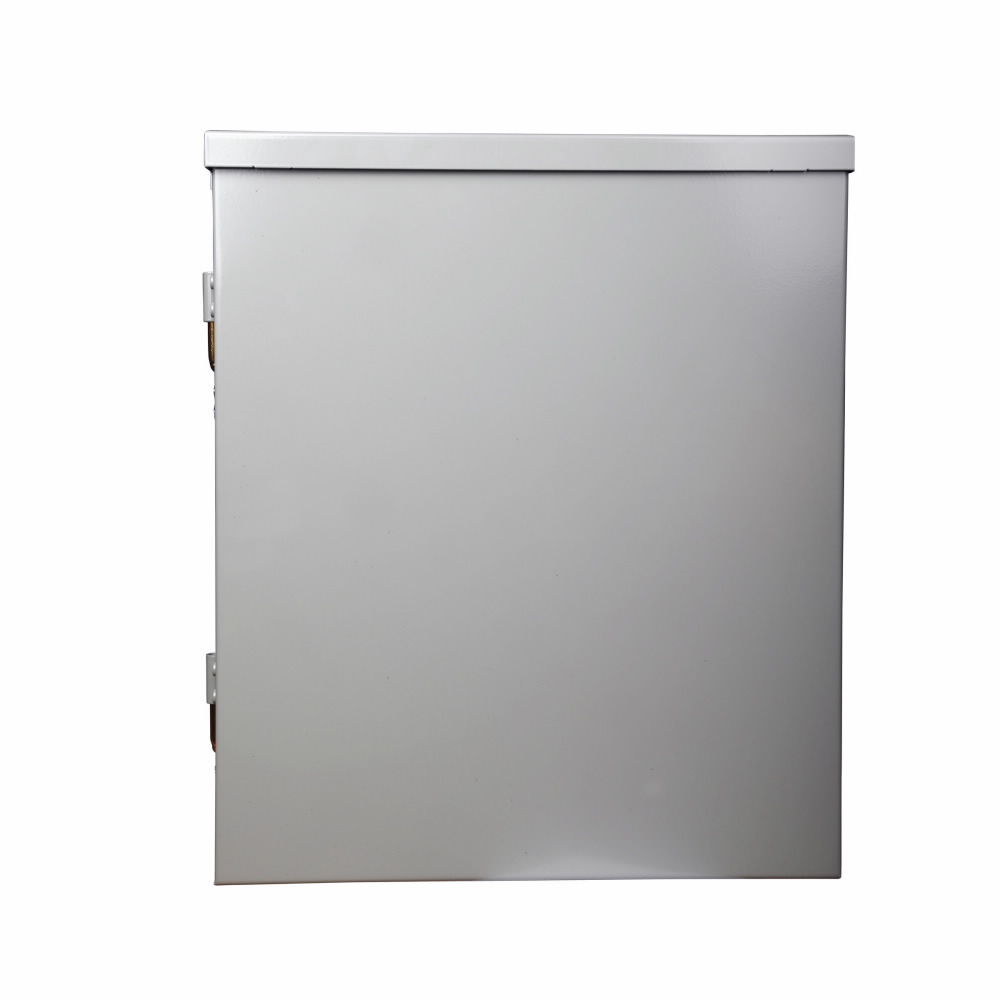

EATON CH12L3125R Type CH Three-Phase Main Lug Load Center, 12 Space/12 Circuit, 120/240 VAC, 125 Amp, NEMA 3R

Product Description

EATON CH12L3125R is a three-phase main lug load center designed for power distribution. It accommodates 12 circuits and spaces and operates at 120/240 VAC with a 125-amp rating. NEMA 3R rated for outdoor use, it provides rainproof protection for your electrical systems.

• Overhead feed applications
• Rainproof design with hub closure plates
• Includes copper bus for reliable connections

Product Highlights

This load center serves as a crucial component for electrical assemblies in residential and light commercial setups. Its design allows for a plug-on breaker mounting system and manages wires ranging from four AWG to one AWG.

Product Information

Standard Information

• Brand: EATON
• MPN: CH12L3125R

Technical Specifications

• Type: 3-Phase
• Voltage Rating: 208Y/120 VAC, 240 VAC
• Amperage Rating: 125 A
• Number of Circuits: 12
• Breaker Type: CH
• Mounting Type: Surface
• Dimensions: 14.31 in W x 5.19 in D x 16.75 in H
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 3R
• Wire Size: 4/0 to 1 AWG
• Housing Material: Metal
