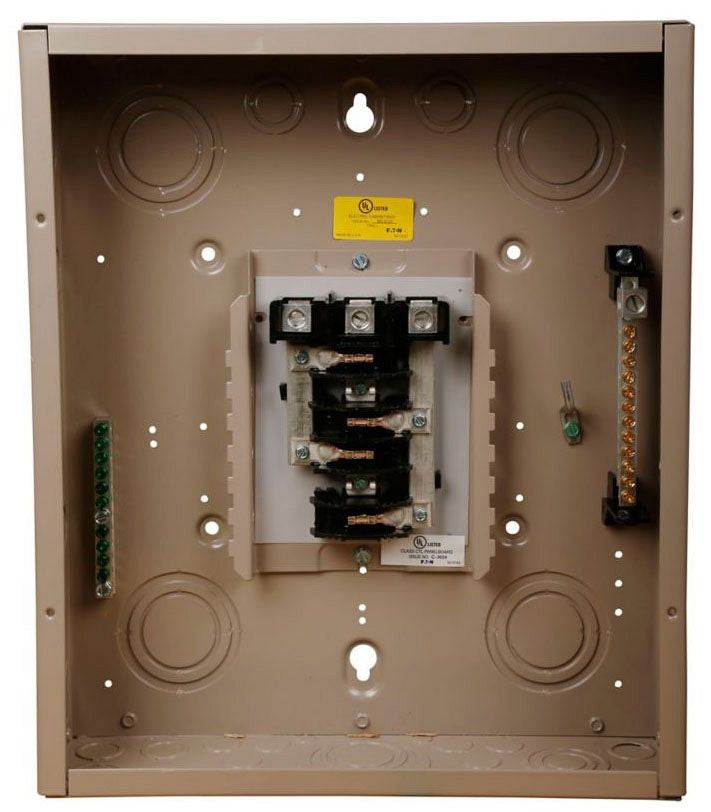

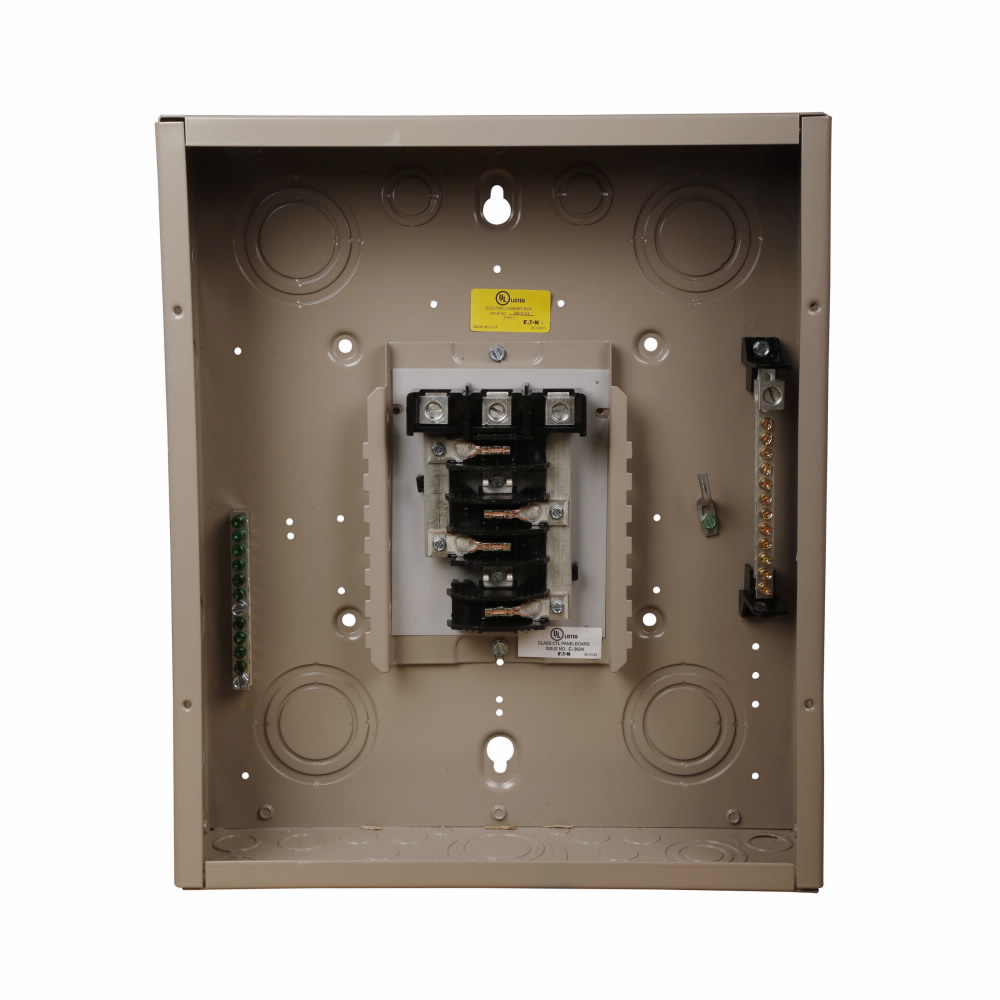

EATON CH12L3125B Type CH Three-Phase Main Lug Load Center, 12 Space/12 Circuit, 120/240 VAC, 125 Amp, NEMA 1

Product Description

The EATON CH12L3125B is a three-phase main lug load center designed for efficient power distribution. It operates at 120/240 VAC and has a 125 Amp capacity with twelve spaces and circuits. The NEMA 1 enclosure offers metal housing suitable for light commercial and residential applications.

• Compatible with CH circuit breakers for reliable performance.
• Accommodates wire size from four/0 to one AWG.
• Designed for flush mounting for compact installation.

Product Highlights

The EATON CH12L3125B serves as the central hub for electrical distribution, protecting and controlling circuits in various settings.

Product Information

Standard Information

• Brand: EATON
• MPN: CH12L3125B

Technical Specifications

• Voltage Rating: 208Y/120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 12
• Number of Circuits: 12
• Enclosure Type: NEMA 1
• Mounting Type: Flush
• Dimensions: 16.75 in L x 14.3 in W x 3.9 in H
• Breaker Type: Plug-On
