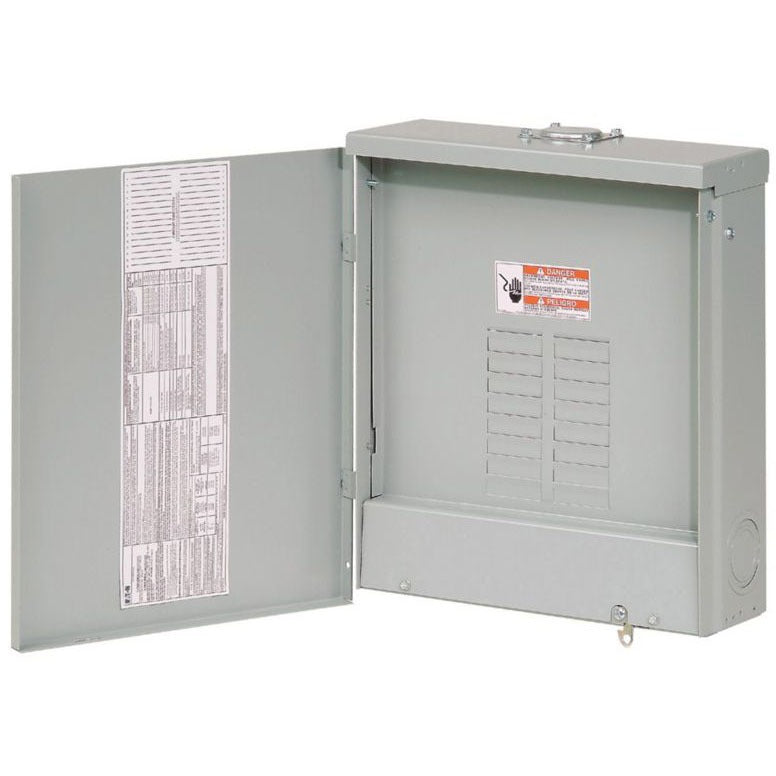

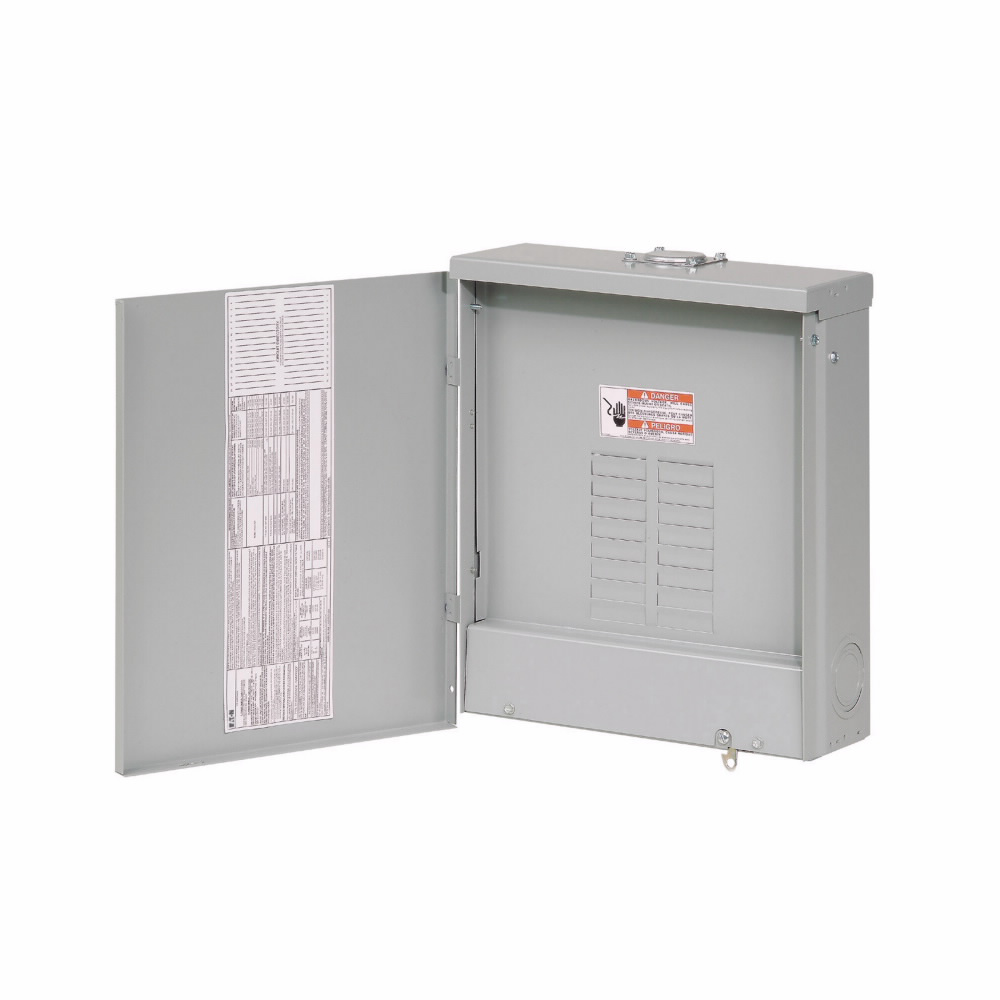

Eaton CH12L125RP CH Main Lug Loadcenter 125A (12 Spaces/12 Circuits)

Product Description

The Eaton CH12L125RP is a CH series main-lug loadcenter rated 125 A for 120/240 V single-phase service. It provides 12 spaces and 12 circuits with a copper bus and a 25 kAIC interrupt rating in a NEMA 3R metallic enclosure for outdoor or remote installations. The unit accepts three-wire service and is intended for residential and light commercial electrical distribution, panels, and OEM assemblies.

• Main-lug-only configuration, 125 A rating with copper bus and CH series breaker compatibility
• 12 spaces / 12 circuits, three-wire 120/240 V single-phase service, 25 kAIC interrupt rating
• NEMA 3R metallic enclosure for outdoor/remote use; surface mount with 3/4 inch hub

Product Highlights

125 A main-lug loadcenter; 12 spaces/12 circuits; copper bus; 25 kAIC; NEMA 3R metallic enclosure; 120/240 V single-phase

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH12L125RP
• Country of Origin: US
