Eaton CH120 20 Amp 120/240 Volt 10 kAIC 1-Pole Circuit Breaker

Product Description

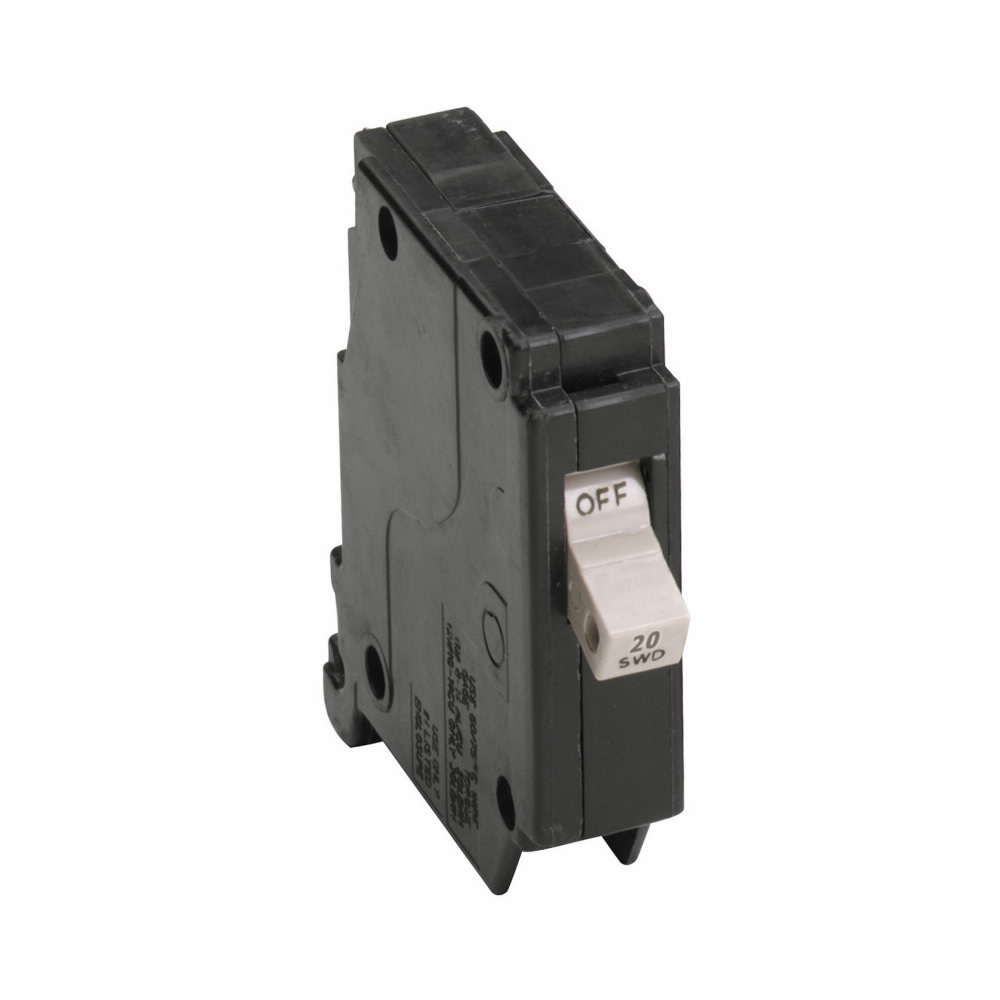

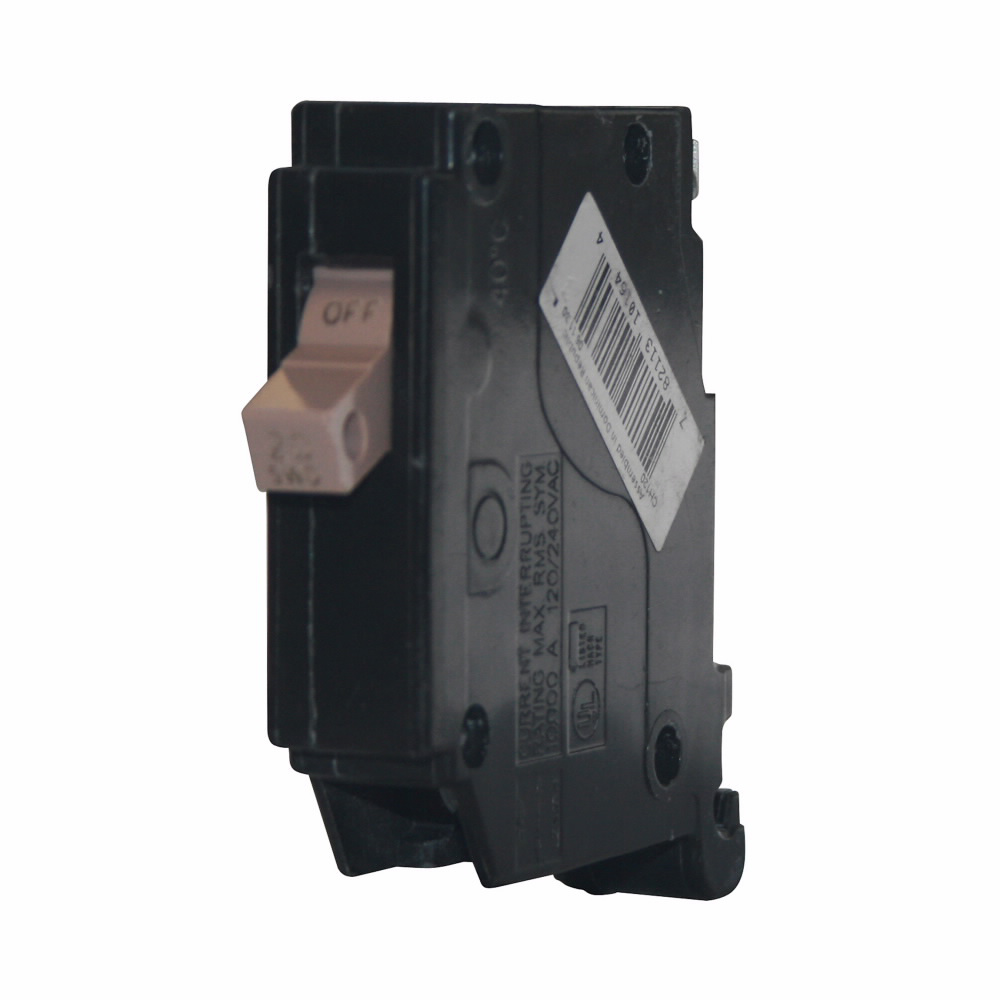

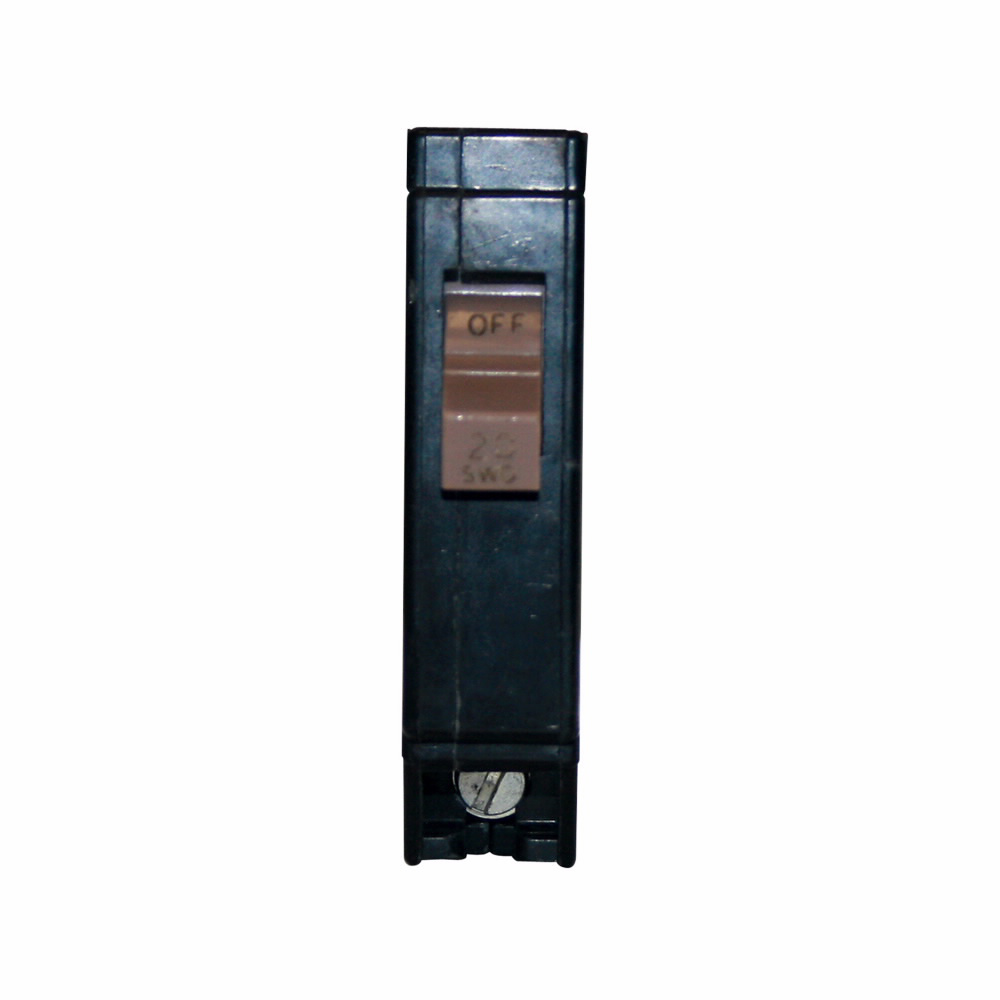

The Eaton CH120 is a 20 Amp, 120/240 Volt, 10 kAIC, single-pole circuit breaker. This product is designed to enhance Circuit Protection in electrical applications. It fits in standard loadcenters and is compatible with wire sizes from fourteen to ten AWG. The Eaton CH120 is ideal for residential and commercial applications.

• Rated for 20 Amps and 120/240 Volts
• Designed for use with wire sizes of fourteen to ten AWG
• UL 489 certified for safety

Product Highlights

This breaker provides reliable thermal/magnetic protection and is easy to install. It uses a plug-on mounting method suitable for NEMA 1 and NEMA 3R enclosures. Its compact design requires only a three-quarter-inch space in a panel.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: CH120

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Dimensions: 3.5 in length x 5 in width x 3 in height
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 degrees Celsius
• Application: Circuit Protection
