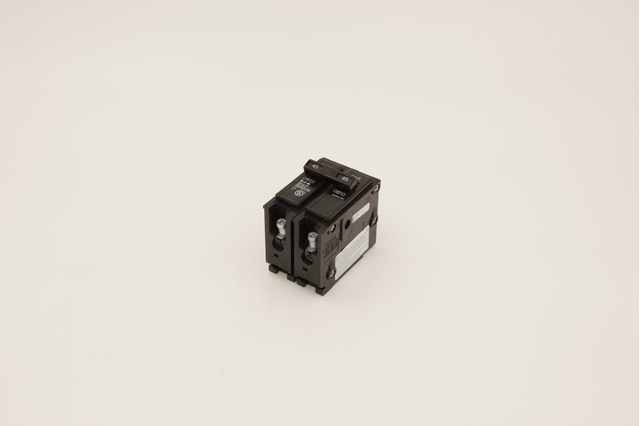

Eaton ch-cl245 Classified Circuit Breaker 45A 2 Pole

Product Description

The EATON ch-cl245 is a Type CL Classified thermal magnetic circuit breaker rated at 45 amps and 120/240 volts AC. It is a 2-pole, single-phase breaker with a 10 kAIC interrupt rating, designed to protect branch circuits in residential and light commercial electrical panels. The plug-on mount design allows for straightforward installation in compatible load centers. Common trip operation ensures both poles open simultaneously on a fault condition. Electricians install this breaker as an OEM-style replacement where a Type CL Classified breaker is required by panel specification.

This breaker is suited for residential and light commercial applications where a classified replacement breaker is needed. It accepts 14 to 4 AWG copper or aluminum wire, covering a wide range of branch circuit wiring scenarios. The 60 to 75 degrees C temperature rating makes it compatible with standard building wire insulation ratings. It is a single-phase, 2-pole unit appropriate for 240-volt loads such as electric dryers, HVAC equipment, and water heaters, or for 120-volt multi-wire branch circuits.

Key Features

• Type CL Classified design for use as a replacement breaker in compatible load centers
• 45-amp, 120/240 VAC rating for a broad range of branch circuit loads
• 10 kAIC interrupt capacity for standard residential and light commercial fault currents
• Common trip 2-pole operation ensures simultaneous disconnect of both legs on a fault
• Accepts 14 to 4 AWG copper or aluminum conductors
• Plug-on mount for fast, tool-minimal installation

Compatibility

Designed as a Type CL Classified replacement circuit breaker for use in load centers that accept CL-type classified breakers per the panel manufacturer's labeling and NEC requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and all applicable local codes. De-energize and lock out the main panel before handling any breaker or bus connection. Verify that the load center is listed to accept Type CL Classified breakers before installing this unit. Confirm conductor AWG and insulation temperature rating match the breaker and circuit requirements prior to termination.

Technical Specifications

• Amperage: 45 amps
• Voltage: 120/240 VAC
• Poles: 2
• Phase: 1
• Interrupt Rating: 10 kAIC
• Trip Type: Common Trip, Thermal Magnetic
• Breaker Type: Type CL Classified
• Mount Type: Plug-On
• Wire Range: 14 to 4 AWG Copper/Aluminum
• Temperature Rating: 60 to 75 degrees C
• Dimensions: 3 inches L x 2 inches W x 3 inches H

Standard Information

• Brand: EATON
• Manufacturer Part Number: ch-cl245
