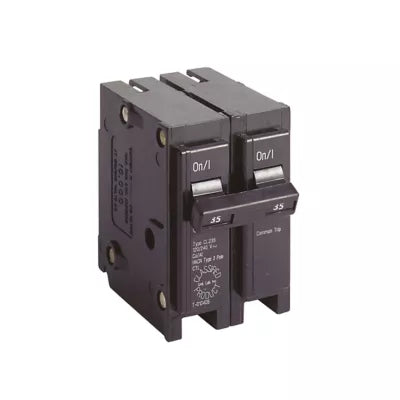

Eaton ch-cl235 35A 2-pole Circuit Breaker 120/240V Type Cl

Product Description

The EATON ch-cl235 is a Type CL classified double pole circuit breaker rated at 35 amps and 120/240 volts with a 10,000 AIC interrupting capacity. It is designed as a load-center circuit breaker for branch circuit overcurrent protection in residential and light commercial panelboards. The Type CL classification allows it to fit a range of panelboard makes that accept classified breakers, making it a practical solution when replacing breakers in panels not originally designed for a single proprietary line. Licensed electricians install this breaker as part of branch circuit work governed by NEC requirements.

This breaker is suited for residential and light commercial branch circuits requiring double pole overcurrent protection at 35 amps. It is commonly installed in applications such as dryer circuits, HVAC disconnect panels, or other 240-volt branch loads. The Type CL classified rating means the breaker is tested and listed for use in panelboards that accept classified replacement breakers, broadening its installation scope beyond a single panel brand.

Key Features

• 35 amp double pole configuration provides 240-volt branch circuit protection
• 10,000 AIC interrupting rating suitable for residential and light commercial service
• Type CL classified listing allows use in panelboards that accept classified breakers
• 120/240 volt rated for standard North American single-phase residential systems
• 1-inch breaker width fits standard classified-breaker panel slots

Compatibility

Designed as a Type CL classified replacement double pole circuit breaker for use in panelboards listed to accept UL classified breakers. No specific compatible panel model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off main panel power and verify absence of voltage with a meter before handling breakers or bus connections. Do not force the breaker onto a bus bar; confirm the panel accepts Type CL classified breakers before installation. Verify the panel interior label lists acceptance of classified breakers prior to install.

Technical Specifications

• Amperage: 35 amps
• Poles: 2
• Voltage Rating: 120/240 volts
• Interrupting Capacity: 10,000 AIC
• Breaker Type: Type CL Classified
• Breaker Width: 1 inch
• UNSPSC Code: 39121601

Standard Information

• Brand: EATON
• Manufacturer Part Number: ch-cl235
