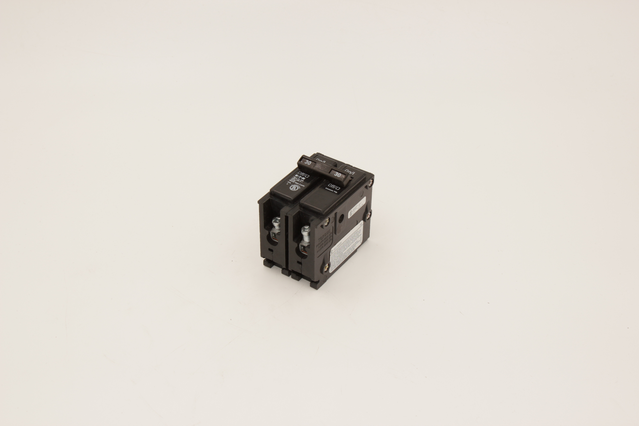

Eaton ch-cl230 Type Cl Circuit Breaker 30A 2P 120/240V

Product Description

The EATON ch-cl230 is a Type CL Classified thermal magnetic circuit breaker rated at 30 amps and 120/240 volts AC. It features a 2-pole, single-phase, common-trip design with a 10 kAIC interrupt rating. The plug-on mount configuration fits into residential load centers and is compatible with Square D Homeline panels as a classified replacement. Licensed electricians and electrical contractors install this breaker for branch circuit overcurrent protection in residential and light commercial distribution equipment. Wire range is 14 to 4 AWG copper or aluminum conductors, with a temperature rating of 60 to 75 degrees C.

The ch-cl230 is used in residential and light commercial applications where a 30-amp double-pole breaker is required for circuits such as dryers, water heaters, and HVAC equipment. Its Type CL Classified listing makes it suitable for use in Square D Homeline load centers in addition to compatible EATON CH panel enclosures. The plug-on mounting style allows for straightforward installation without special adapters or tools.

Key Features

• Type CL Classified — listed for use in Square D Homeline load centers
• 30-amp, 2-pole common-trip thermal magnetic protection
• 120/240 VAC rated for single-phase branch circuits
• 10 kAIC interrupt rating for residential service levels
• Accepts 14 to 4 AWG copper or aluminum wire
• Plug-on mount for fast installation in compatible load centers

Compatibility

Designed as a Type CL Classified replacement breaker compatible with Square D Homeline load centers, as well as EATON CH-style panel enclosures accepting plug-on breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the load center and verify the main breaker is off before handling any branch circuit breakers. Confirm the panel is rated to accept Type CL Classified breakers before installation. Torque all wire terminations to the lug specifications printed on the breaker or enclosure label.

Technical Specifications

• Amperage: 30 amps
• Voltage: 120/240 VAC
• Poles: 2
• Phase: 1
• Interrupt Rating: 10 kAIC
• Trip Type: Common Trip Thermal Magnetic
• Breaker Type: Type CL Classified
• Mount Style: Plug-On
• Wire Range: 14 to 4 AWG Copper or Aluminum
• Temperature Rating: 60 to 75 degrees C
• Dimensions: 3 inches L x 2 inches W x 3 inches H

Standard Information

• Brand: EATON
• Manufacturer Part Number: ch-cl230
