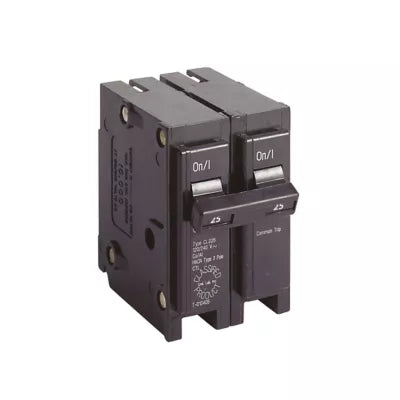

Eaton ch-cl225 Circuit Breaker 25A 2P 120/240V Type Cl

Product Description

The EATON ch-cl225 is a Type CL classified plug-in circuit breaker rated at 25 amps, 2 poles, and 120/240 volts with a 10,000 amp interrupting capacity (10kAIC). It is designed for use in load centers where the original manufacturer breaker is unavailable or where a classified replacement is required. Licensed electricians install this breaker during panel upgrades, service calls, and new branch circuit installations. The Type CL classification means it meets UL requirements for use as a classified replacement in compatible load centers not manufactured by Eaton.

This breaker is suited for residential and light commercial electrical systems operating on standard 120/240-volt single-phase service. It handles branch circuits for general-purpose loads including lighting, receptacles, and small appliances. The 2-pole configuration provides protection for 240-volt circuits. Its plug-in design allows straightforward installation into compatible load center bus bars without additional hardware.

Key Features

• 25-amp, 2-pole configuration for 240-volt branch circuit protection
• 10kAIC interrupting rating suitable for residential and light commercial panels
• Type CL classified for use as a replacement in compatible load centers
• Plug-in design for direct bus bar mounting without additional hardware
• 120/240-volt rating covers standard single-phase residential service

Compatibility

Designed as a Type CL classified replacement circuit breaker for compatible residential and light commercial load centers accepting plug-in style breakers. Specific compatible panel models were not provided in the available product data.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main breaker and verify the panel is de-energized before removing or installing any circuit breaker. Confirm the load center accepts Type CL classified plug-in breakers before installation. Do not exceed the breaker ampacity for the connected circuit conductors.

Technical Specifications

• Amperage: 25 amps
• Number of Poles: 2
• Voltage Rating: 120/240 volts
• Interrupting Capacity: 10kAIC
• Breaker Type: Type CL Classified
• Mounting Style: Plug-In
• UNSPSC Code: 39121601

Standard Information

• Brand: EATON
• Manufacturer Part Number: ch-cl225
