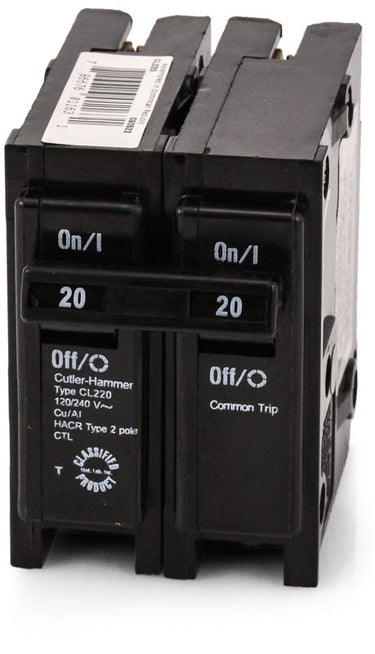

Eaton CH-CL220 CL220 2 Pole Circuit Breaker 20 Amps

Product Description

The Eaton CH-CL220 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It features an interrupting rating of 10kAIC at 240V. The CL220 has a plug-in connection type and includes long time and instantaneous trip functions. For use with Type CH Load Centers.

• 2 Pole
• Thermal Magnetic
• Molded Case
• Plug-in connection type

Product Highlights

The Eaton CH-CL220 circuit breaker provides reliable circuit protection with thermal-magnetic technology and a plug-in design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH-CL220

Technical Specifications

• Brand: Eaton/Cutler-Hammer
• Series: CL
• Amperage: 20
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• Approval: UL
• Interrupting Rating: 10kAIC at 240V
• Frame Type: CHQ
• Connection Type: Plug-In
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Wire Gauge: AWG 14 to AWG 4, Cu/Al
• For Use With: Type CH Load Centers
• Circuit Breaker Type: CH
• Mpn: CL220
• Upc: 786676011631
• Gtin: 786676011631
• Length (in): 1.8
• Width (in): 2
• Height (in): 2.5
