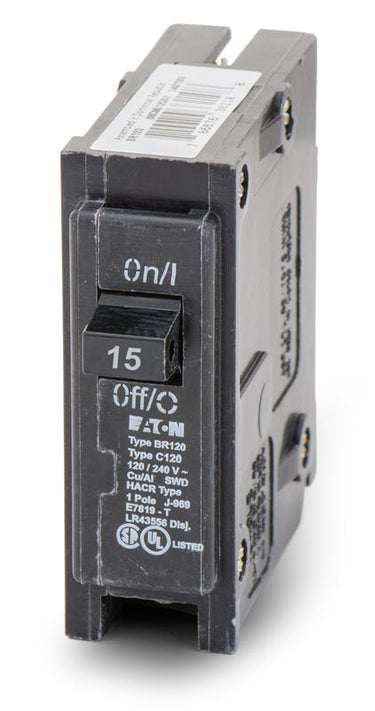

Eaton CH-BR115 BR115 1 Pole Circuit Breaker 15 Amps

Product Description

The Eaton BR115 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 120/240VAC. It features an interrupting rating of 10kAIC at 240V. The BR115 has a plug-in connection type and includes long time and instantaneous trip functions. For use with Type BR Loadcenters.

• 1 Pole
• Thermal Magnetic Protection
• Plug-In Connection

Product Highlights

The Eaton BR115 circuit breaker provides thermal magnetic protection and a plug-in connection for reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH-BR115

Technical Specifications

• Brand: Eaton/Cutler-Hammer
• Series: BR
• Amperage: 15
• Voltage: 120/240VAC
• Poles: 1
• Phase: 1
• Mounting Type: Plug-On
• Approval: UL
• Interrupting Rating: 10kAIC at 240V
• Frame Type: BR
• Connection Type: Plug-In
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Wire Gauge: AWG 14 to AWG 4, Copper/Aluminum
• For Use With: Type BR Loadcenters
• Temperature Rating: 40 °C
• Circuit Breaker Type: Standard
• Actuator Type: Toggle
• Mpn: BR115
• Upc: 786676362054
• Gtin: 786676362054
