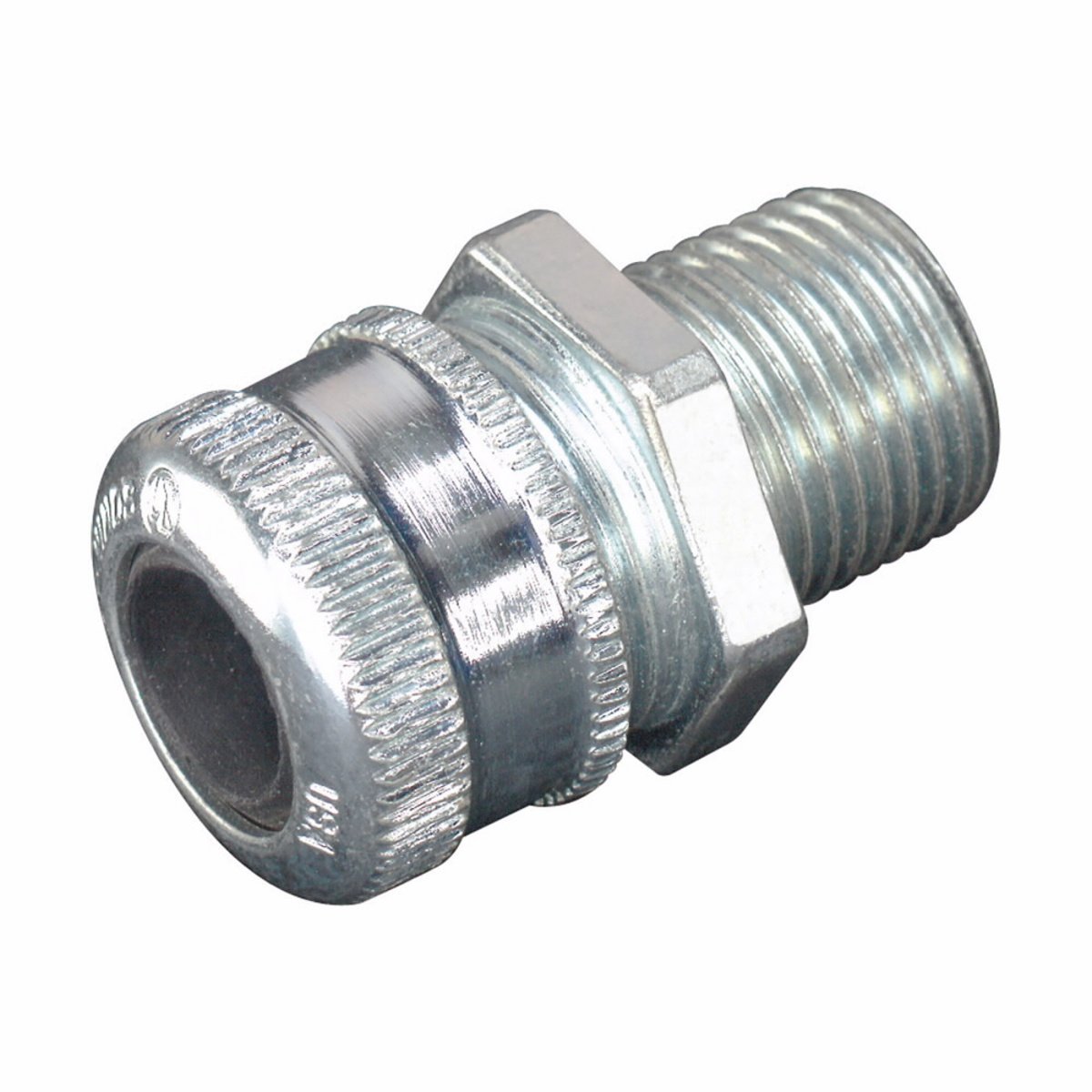

Eaton CGB7915 Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 1.625-1.875, Non-armoured and tray cable, Non-armoured, Steel, General purpose, 2-1/2 NPT

Product Description

The Eaton CGB7915 is a cable gland designed for various applications. This product fits trays for cable types like TC and ITC. It is suitable for use in hazardous areas, adhering to NEC501.10(B)(4) standards, making it compliant for Class I, Division 2 locations.

• Compatible with multiple cable types, including flexible cords and non-armoured cables.
• Provides an environmental seal to protect electrical connections.
• Enables secure connection for flexible cable applications.

Product Highlights

The cable gland is made from Feraloy iron alloy and features a neoprene seal.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Catalog Number: CGB7915
• Trade Size: 2-1/2 in
• Temperature Rating: -25 to 40 Deg C
• Connection: Male NPT
• Enclosure: Class I Div 2
• Material: Feraloy Iron Alloy Body and Gland Nut, Neoprene Seal
• Finish: Electrogalvanized With Aluminum Acrylic Painted
• UPC: 782274141206
