Eaton CGB396-SA CGB Cable Gland Power 1-IN (Cord Grip Connectors)

Product Description

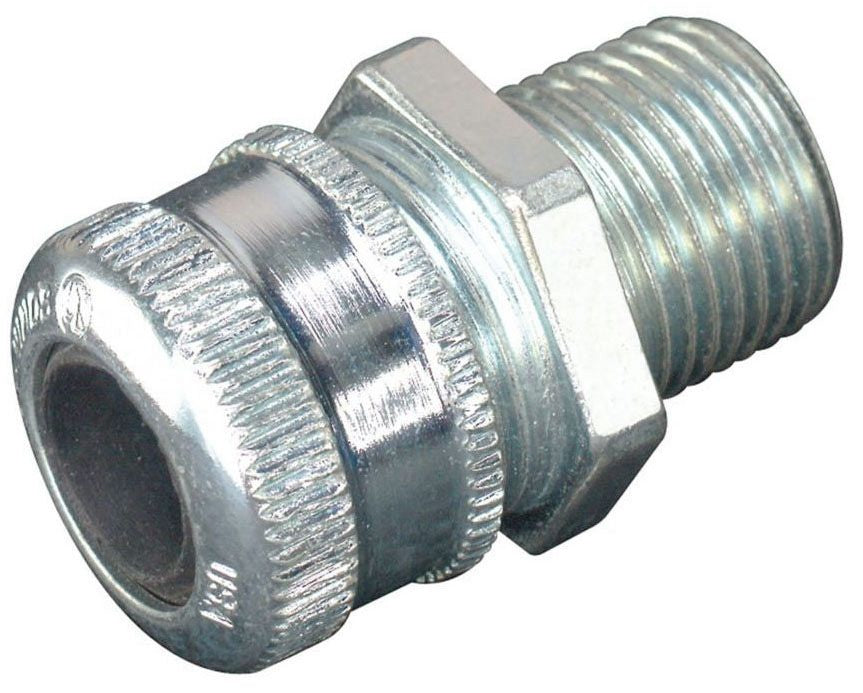

The Eaton Crouse-Hinds series CGB396-SA cable gland is designed for use with non-armoured and tray cables. This cable gland accommodates cable sizes ranging from zero point six two five inches to zero point seven five zero inches. It features a one inch NPT connection. The CGB396-SA is made from aluminum, suitable for general purpose applications.

• Cable range: 0.625-0.750 inches
• Connection type: Male NPT
• Temperature rating: -25 to 40 degrees Celsius

Product Highlights

This cable gland is essential for providing a secure and tight seal for cabling in various industrial applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Type: Cable gland
• Weight: 0.22
• Dimensions: 2.3800 inches x 1.6600 inches x 1.6600 inches
• Enclosure: Class I Div 2
• Application: Industrial facilities
• Special Features: Non-armored gland
• Temperature Rating: -25 to 40 degrees Celsius
• Family Group: Fittings
