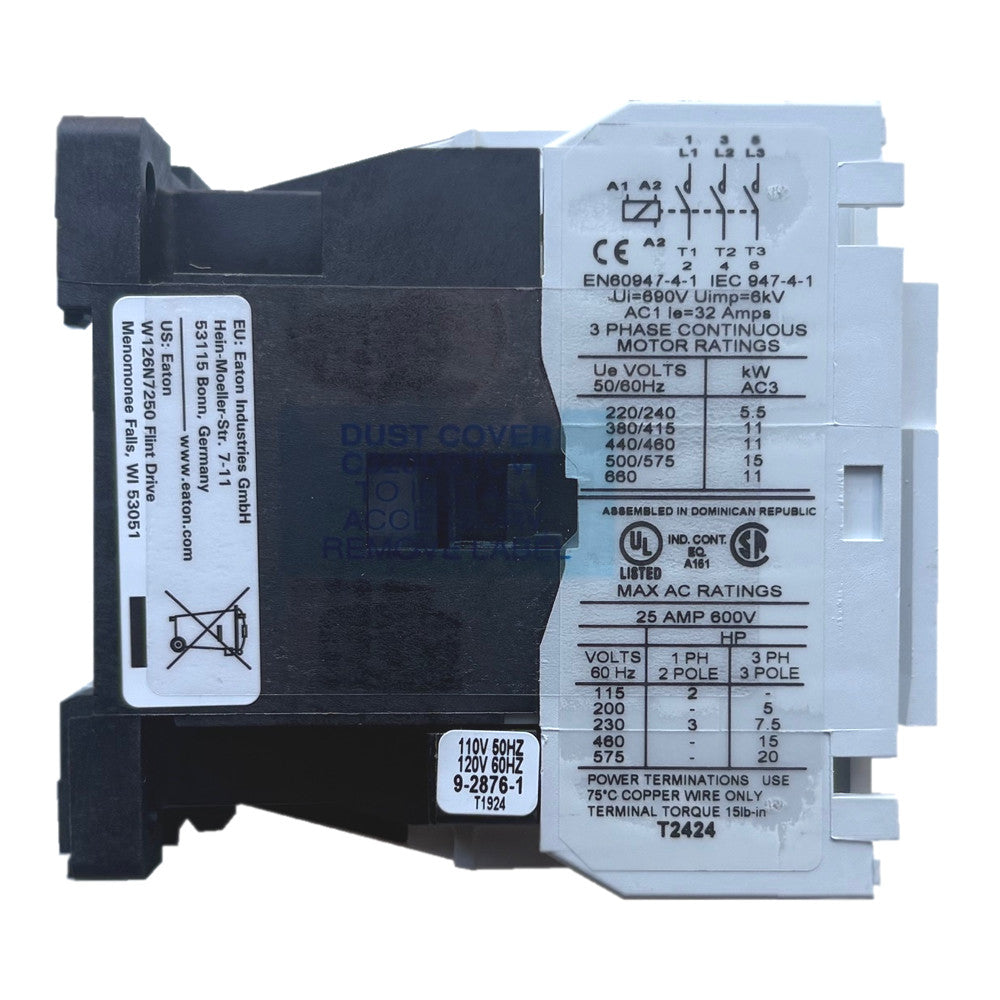

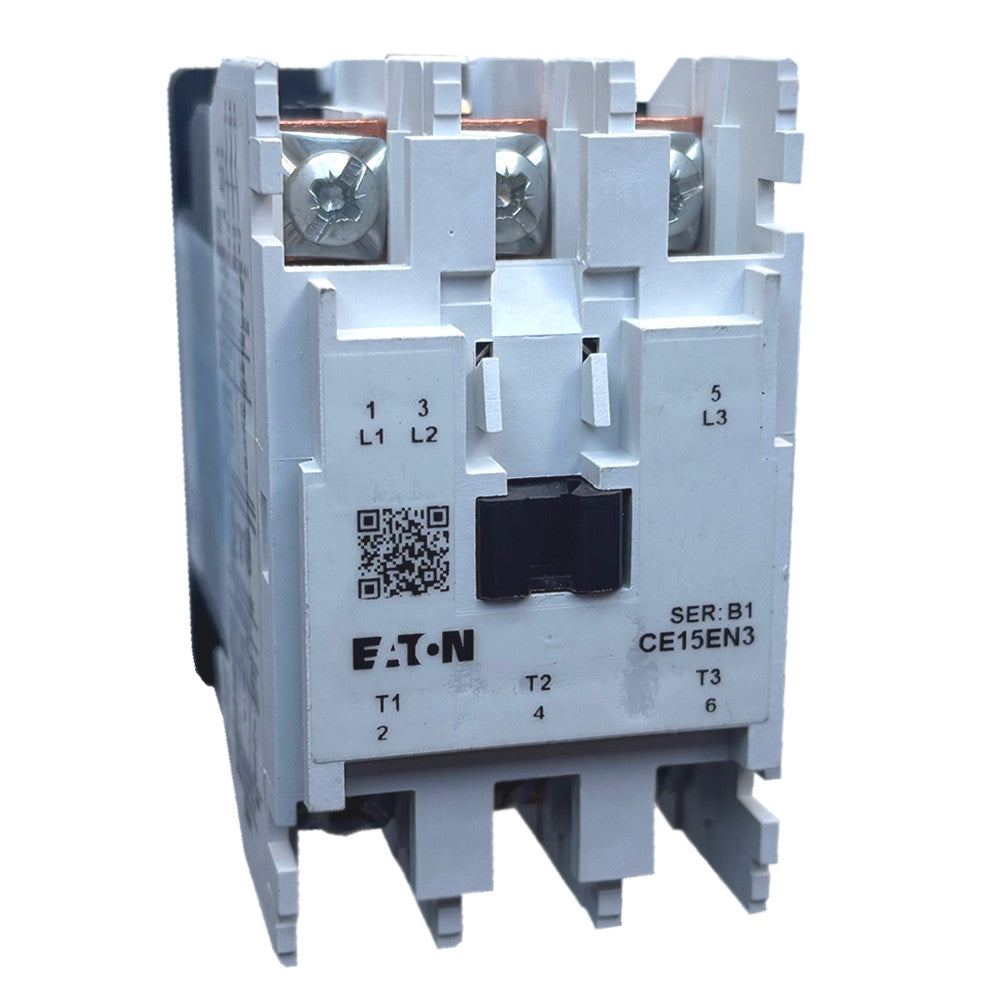

Eaton CE15EN3AB XT IEC Contactor 25A 110-120 Vac

Product Description

The EATON CE15EN3AB XT IEC contactor is rated at 25A with a coil voltage of 110-120 Vac, 50-60 Hz. This three-pole, non-reversing contactor is designed for electrical assemblies, panels, and EOEM applications. It features a steel mounting plate and does not include an overload relay. It is also known as a Freedom Contactor.

• Horizontal or vertical mounting on upright pane allows for application freedom
• Screw type power terminals have captive, backed out self lifting pressure plates with screws result in reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring

Product Highlights

This IEC rated contactor is designed for motor and power control equipment applications. It is UL Listed, CSA Certified and IEC Rated.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CE15EN3AB
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: CE15EN3AB
• Manufacturer: Eaton
• Brand: Eaton - Cutler Hammer
• Country of Origin: Dominican Republic
• Made in USA: No
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Coil Voltage: 110-120 Vac, 50-60 Hz
• Mounting: Mounting Plate
• Standard: CSA Certified,IEC Rated,UL Listed,ISO 9000,DIN VDE 0600
• UPC: 782113779164
• GTIN: 00782113779164
• Item Type: Contactors
• Type: E-Frame Non-Reversing
• Series: XT IEC Series
• Mounting Type: Surface
• Terminal Type: Screw
• Enclosure Type: Open
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Operating Cycles: 3000000 Cycles
• Coil Power Rating: 2 hp
• Maximum Load Current: 25 A
• Contact Configuration: 3NO
• Operating Temperature: -5 to 65 deg C
• Number of Auxiliary Contacts: 3
• Amperage: 25
• Voltage: 600VAC
• Phase: 3
• Approval: UL, CSA, IEC, DIN VDE, ISO
• Terminal Connection: Box Lug
• For Use With: Freedom Series Motor Control Systems
• Action: Non-Reversing
• Coil Volts: 110/120VAC at 50/60Hz
• Mpn: CE15EN3AB
• Product Type: Contactors
• Amperage Rating: 25A
• HP rating - max: 2 hp
• Continuous ampere rating: 25 A
• Relay: No overload relay
• Operation: Non-reversing
• Mounting method: Steel mounting plate
• Hertz: 50/60
• Frequency: 50-60 Hz
• Construction Standard: I.E.C. 600V AC
• Size: IEC Size E
• UL Cont. Amps: 25A
• Poles: 3P
• Hp 1-Phase 115V: 2 Hp
• Hp 1-Phase 230V: 3 Hp
• Hp 3-Phase 200V: 5 Hp
• Hp 3-Phase 230V: 7.5 Hp
• Hp 3-Phase 460V: 15 Hp
• Hp 3-Phase 575V: 20 Hp
