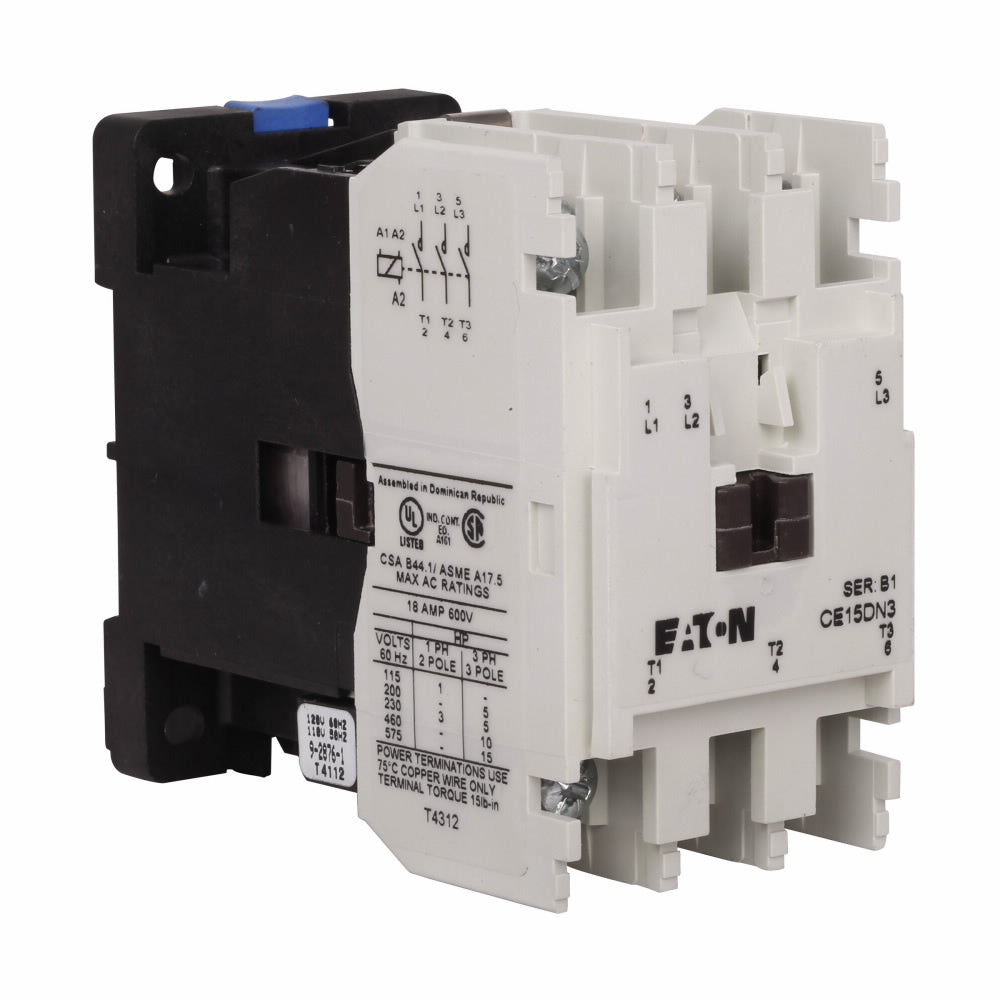

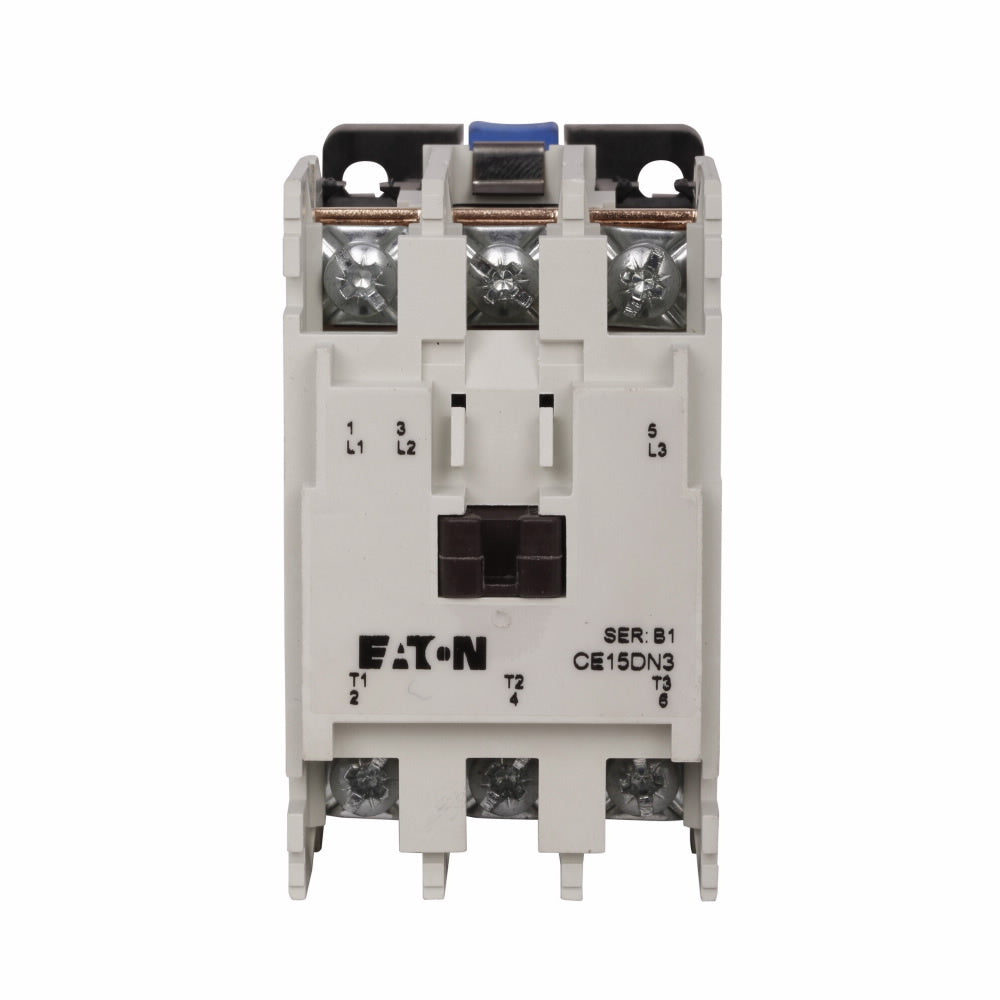

Eaton CE15DN3TB Contactor 18A 24V 50-60Hz

Product Description

The Eaton CE15DN3TB is an IEC contactor designed for use in various electrical control applications. This model is rated at eighteen amps and uses a twenty-four volt alternating current coil. It operates efficiently at fifty or sixty hertz frequency. The contactor features a non-reversing setup with three poles, allowing for reliable performance in a wide array of industrial automation tasks.

• Rated for 18 amps maximum current
• Utilizes a 24 VAC coil at 50/60 Hz
• Includes a steel mounting plate

Product Highlights

This contactor is suitable for motor and power control circuits, it operates at a voltage of twenty-four VAC while maintaining compliance with several international standards.

Product Information

Standard Information

• Catalog Number: CE15DN3TB
• Manufacturer: Eaton

Technical Specifications

• Coil Power Rating: 1 hp
• Maximum Load Current: 18 A
• Contact Configuration: 1NO
• Dimensions: 3.25 in L x 1.8 in W x 2.96 in H
• Operating Temperature: -5 to 65 degrees Celsius
• Mounting Type: Surface
• Operating Cycles: 30,000,000
• Country of Origin: Dominican Republic
