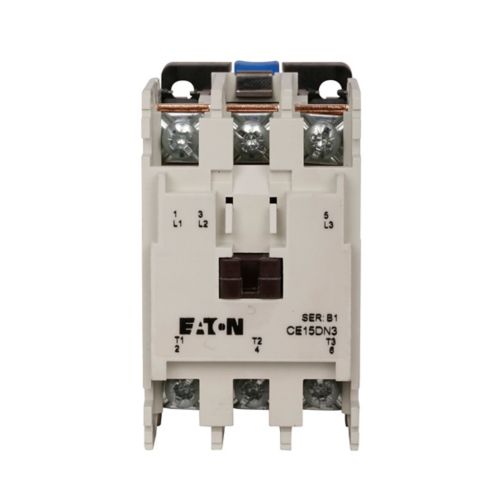

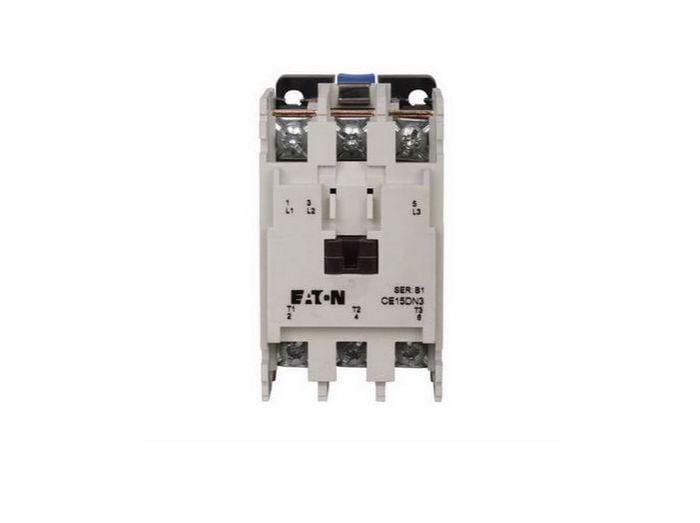

Eaton CE15DN2BB XT IEC contactor 18A 220-240 Vac replacement mpn

EATON
Brand: EATON
SKU: CE15DN2BB
Availability: In Stock

Ships same day if ordered by 12 pm
$412.42
$412.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON CE15DN2BB XT IEC contactor is rated at 18A and 220-240 Vac, 50-60 Hz. This two-pole, non-reversing contactor features a steel mounting plate and does not include an overload relay. It is designed to switch motor loads in applications where running over current protection is either not required or is provided separately.

  • Long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion.
  • Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
  • Adequate for most general duty control applications.

Product Highlights

The EATON CE15DN2BB is a reliable contactor for motor control applications, featuring robust construction and high operational endurance.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: CE15DN2BB
  • Country of Origin: United States
Technical Specifications
Product Name
Eaton XT IEC contactor
Catalog Number
CE15DN2BB
UPC
782113778860
Product Length/Depth
3.25 in
Product Height
2.96 in
Product Width
1.8 in
Compliances
DIN VDE 0600 ISO 9000
Certifications
CSA Certified UL Listed IEC Rated
Catalog Notes
No enclosure
Product Type
Contactors
Amperage Rating
18A
HP rating - max
3 hp
Number of poles
Two-pole
Type
Contactor
Frequency rating
50-60 Hz
Frame size
55 mm
Coil Voltage
220-240 Vac, 50-60 Hz
Continuous ampere rating
18 A
Relay
No overload relay
Series
Freedom
Operation
Non-reversing
Mounting method
Steel mounting plate
UNSPSC Code
39120000
Brand
Eaton - Cutler Hammer
Manufacturer Part Number
CE15DN2BB
Unit of Measure
EA
SKU
CE15DN2BB
Net Weight
1.4 lbs
Gross Weight
1.4 lbs
Manufacturer
Eaton
Product Series
Freedom
Family Series
Eaton Contactors, Freedom Series
Description
Eaton XT IEC contactor, 18A, 220-240 Vac, 50-60 Hz, 18A, Frame D, 55 mm, 50-60 Hz, 3 hp, Steel mounting plate, Two-pole, Non-reversing, No overload relay, Freedom, Contactor
Nominal Coil Voltage
240 VAC
Coil Type
Magnetic
Poles
2NO
Frame Size
D
Auxiliary Contact
None
Termination
Box Lug
Overload Relays
C306, C316
General Purpose (AC1)
32 A
UL Motor Switching (AC3)
18 A
