Product Description

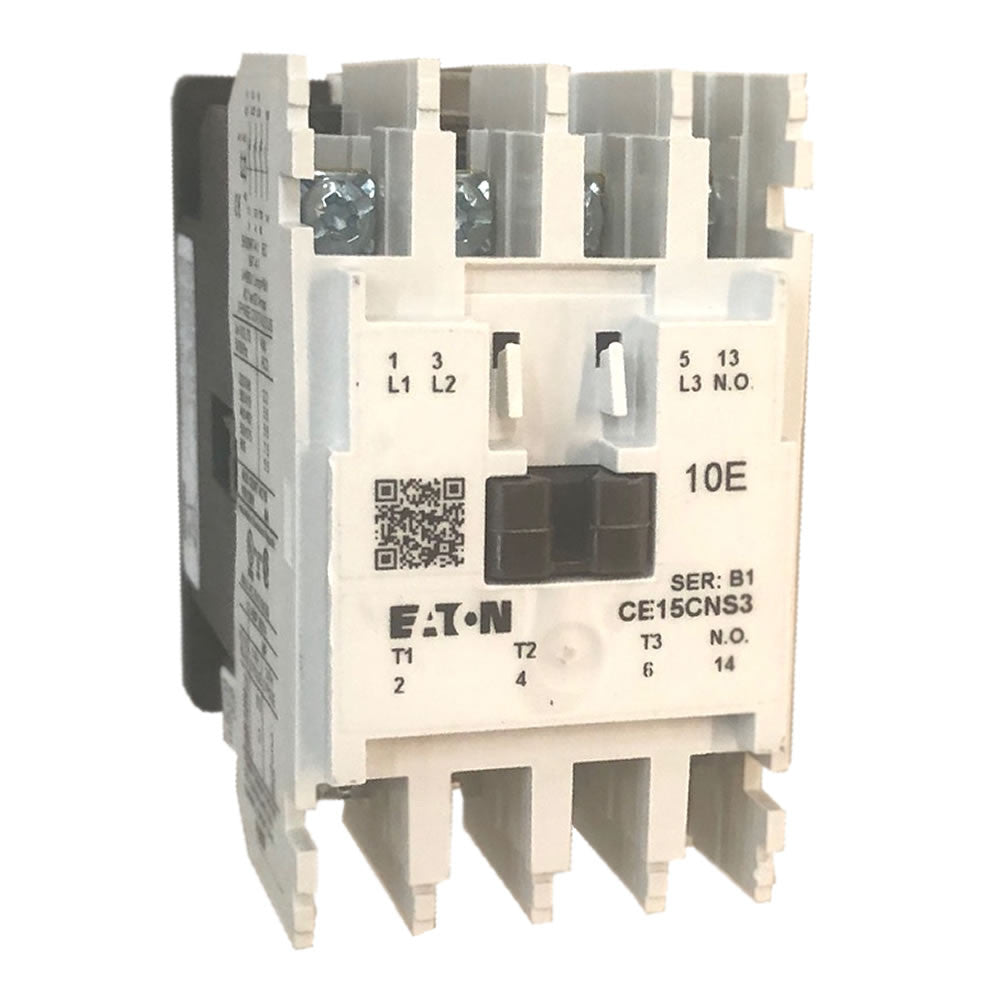

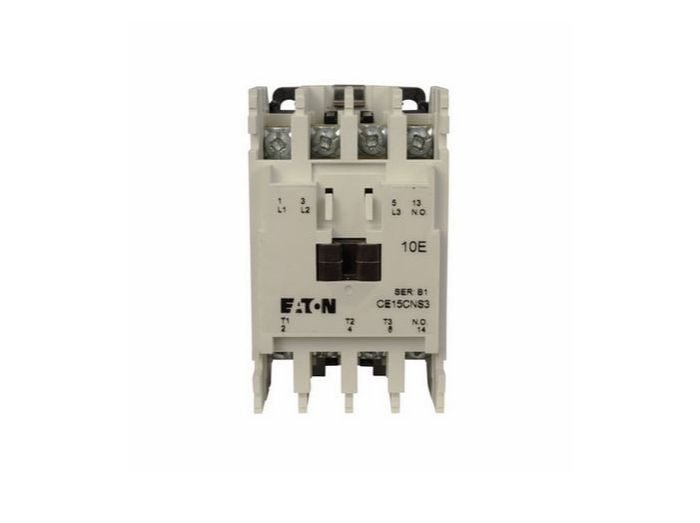

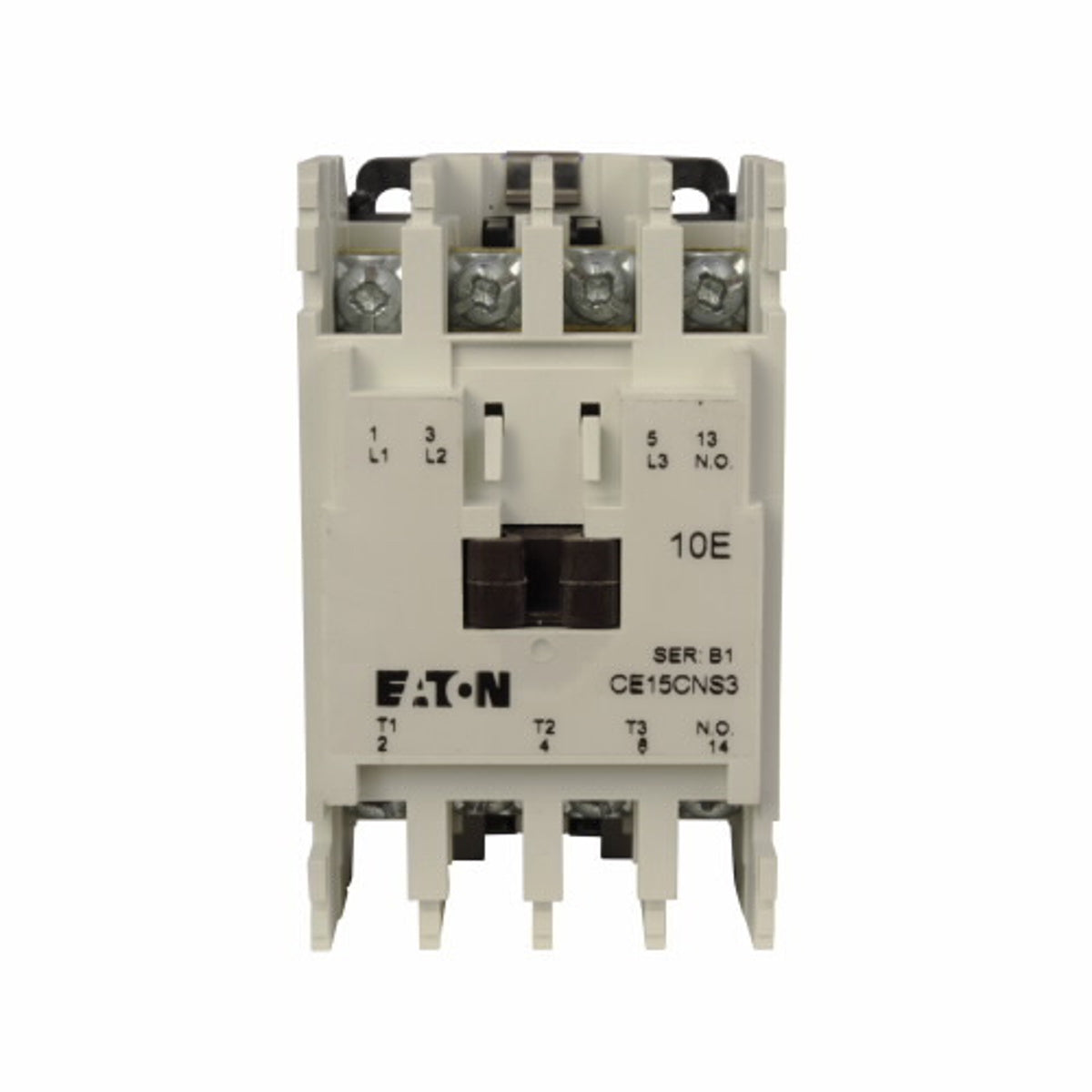

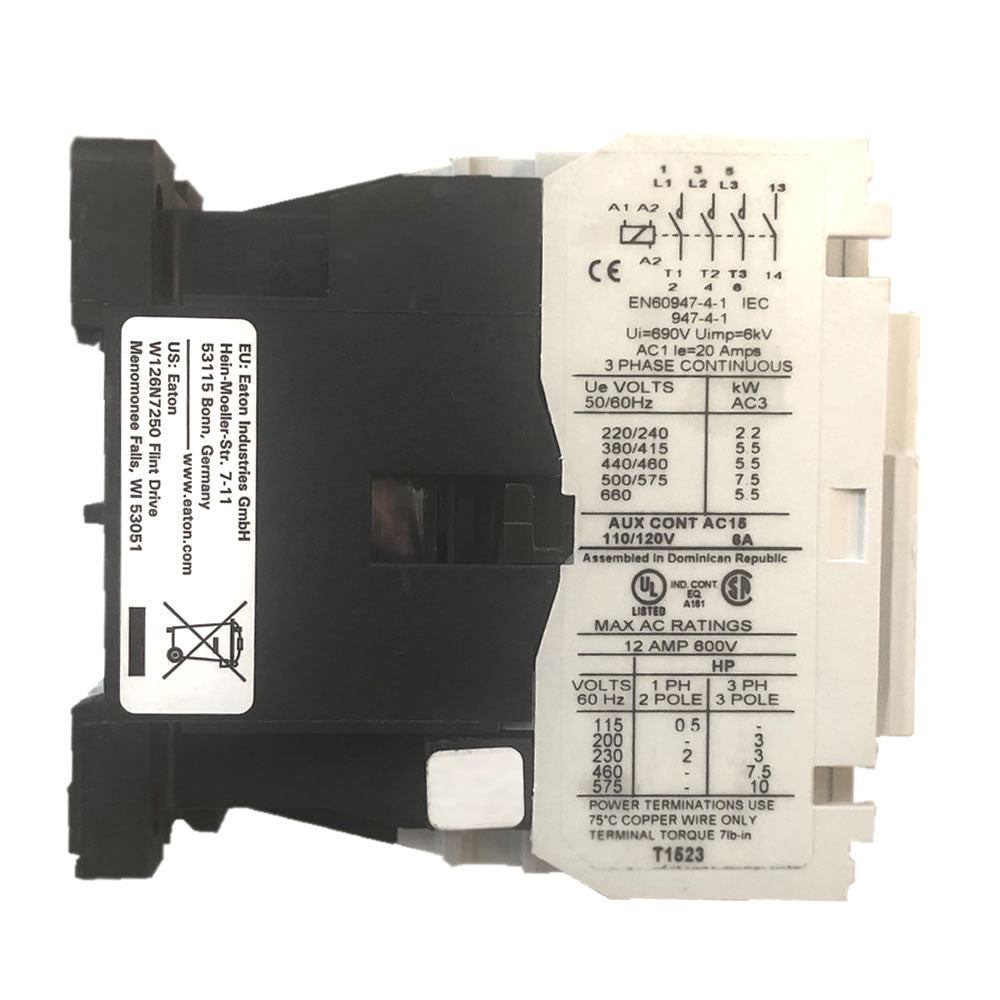

The EATON CE15CNS3BB XT IEC contactor is a three-pole, non-reversing contactor with a 220-240 Vac coil voltage and a 12A maximum load current. This Freedom series contactor features a 1NO contact configuration and is side mounted. It is suitable for electrical assemblies, panels, and EOEMs applications. The unit has a frame size of 45 mm and a coil power rating of 2 hp.
- Horizontal or vertical mounting on upright pane allows for application freedom
- Screw type power terminals have captive, backed out self-lifting pressure plates with screws result in reduced wiring time
- Accessible terminals allow for ease of use and are convenient for simple wiring
Product Highlights
This IEC rated contactor is designed for motor and power control equipment applications. It features easy installation and removal with a metal base.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CE15CNS3BB
-
Country of Origin: Dominican Republic
Technical Specifications
-
Catalog Number: CE15CNS3BB
-
Manufacturer: Eaton
-
Brand: Eaton
-
Country of Origin: Dominican Republic
-
Made in USA: No
-
Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
-
Coil Voltage: 220-240 Vac, 50-60 Hz
-
Contact Configuration: 1 NO
-
Mounting: Side
-
Standard: IEC Rated,UL Listed,CSA Certified,ISO 9000,DIN VDE 0600
-
UPC: 782113778464
-
GTIN: 00782113778464
-
Item Type: Contactors
-
Coil Power Rating: 2 hp
-
Enclosure: Open
-
Frequency Rating: 50/60 Hz
-
Maximum Load Current: 12 A
-
Mounting Type: Panel/Side
-
Number of Auxiliary Contacts: 1
-
Number of Poles: 3
-
Operating Cycles: 3000000 Cycles
-
Operating Temperature: -5 to 65 deg C
-
Series: Freedom
-
Size: 45 mm
-
Standards/Approvals: CSA Certified File No. LR353 Class 321104|DIN VDE 0600|IEC Certified|UL Listed File No. E1491 Guide No. NLDX|EN/IEC 60947
-
Terminal Type: Screw
-
Type: Non-Reversing
-
Product Length/Depth: 3.25 in
-
Product Height: 2.96 in
-
Product Width: 1.8 in
-
Compliances: DIN VDE 0600 ISO 9000
-
Certifications: UL Listed IEC Rated CSA Certified
-
Catalog Notes: Fourth power pole position is used as the auxiliary contact and adds no additional width. No enclosure.
-
Amperage Rating: 12A
-
HP rating - max: 2 hp
-
Continuous ampere rating: 12 A
-
Relay: No overload relay
-
Operation: Non-reversing
-
Depth: 3.70 (in)
-
Nominal Coil Voltage: 240 VAC
-
Coil Type: Magnetic
-
Poles: 3NO
-
Frame Size: C
-
Auxiliary Contact: 1NO
-
Termination: Box Lug
-
General Purpose (AC1): 20 A
-
UL Motor Switching (AC3): 12 A
-
Approvals: CSA, UL
