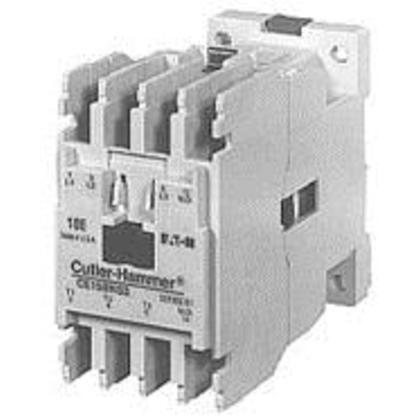

Eaton CE15BN2AB XT IEC contactor 10A

Product Description

The EATON CE15BN2AB XT IEC contactor is rated at 10A and operates at 110-120 Vac, 50-60 Hz. This B-frame contactor features a steel mounting plate and is designed for non-reversing operations. It is suitable for applications where overload protection is provided separately.

• Amperage Rating: 10A
• Coil Voltage: 110-120 Vac, 50-60 Hz
• Mounting: Steel mounting plate

Product Highlights

The EATON CE15BN2AB contactor is ideal for electrical control systems, offering reliability and efficiency in a compact design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CE15BN2AB
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: CE15BN2AB
• UPC: 782113778174
• Product Length/Depth: 3.25 in
• Product Height: 2.96 IN
• Product Width: 1.8 IN
• Compliances: DIN VDE 0600 ISO 9000
• Certifications: IEC Rated CSA Certified UL Listed
• Catalog Notes: No enclosure
• Product Type: Contactors
• Amperage Rating: 10A
• HP rating - max: 0.5 hp
• Number of poles: Two-pole
• Type: Contactor
• Frequency rating: 50-60 Hz
• Frame size: 45 mm
• Coil Voltage: 110-120 Vac, 50-60 Hz
• Continuous ampere rating: 10 A
• Relay: No overload relay
• Series: Freedom
• Operation: Non-reversing
• Mounting method: Steel mounting plate
• UNSPSC: 39121529
• Terminal Type: Box Lug
• Enclosure Type: Open
• Dimensions: 3.25 in L x 1.8 in W x 2.96 in H
• Maximum Load Current: 10
• Volts AC Control: 110/120
• Mounting: Panel, DIN Rail
• Poles: 2NO
• Volts AC: 600
• Size: 45 mm
• Brand: CUTLER HAMMER
• Model: CE15BN2AB
• MPN: CE15BN2AB
• Country of Origin: United States
• Category: Business & Industrial
• Manufacturer: Eaton
• Product Series: Freedom
• Description: Eaton XT IEC contactor, 10A, 110-120 Vac, 50-60 Hz, 10A, Frame B, 45 mm, 50-60 Hz, 0.5 hp, Steel mounting plate, Two-pole, Non-reversing, No overload relay, Freedom, Contactor
• AC Non-Reversing IEC: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Type: Magnetic
• Frame Size: B
• Auxiliary Contact: None
• Termination: Box Lug
• Overload Relays: C306, C316
• General Purpose (AC1): 20 A
• UL Motor Switching (AC3): 10 A
• Approvals: CSA, UL
• Net Weight: 1.3 lbs
• Gross Weight: 1.3 lbs
• Product Length: 3.25 IN
• Product Details: Contactor
