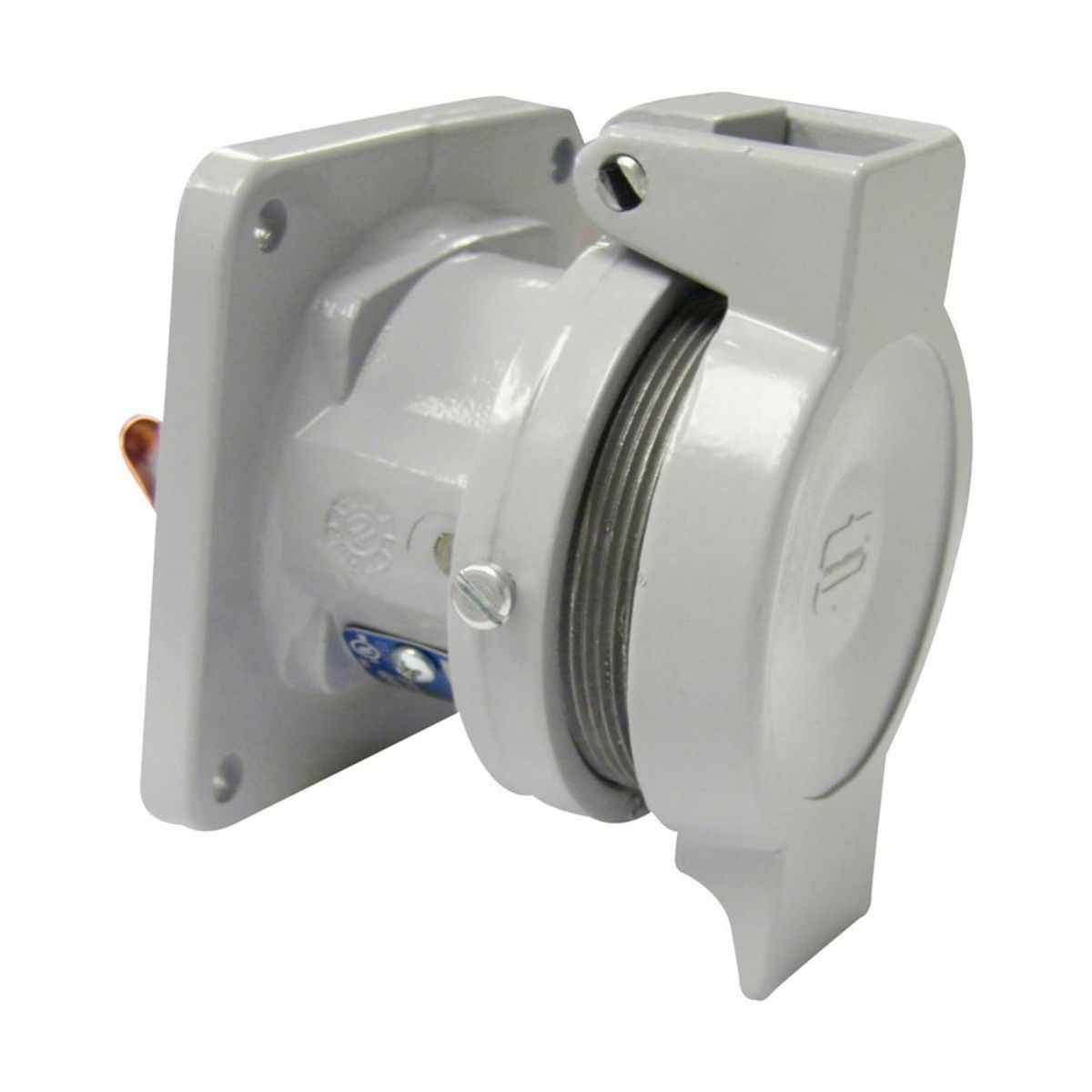

Eaton CDR6034 PowerMate CDR receptacle 60A

Product Description

The Eaton Crouse-Hinds series PowerMate CDR receptacle, MPN CDR6034, provides safe and reliable power connections. It supports modularity of drilling rig systems for rigging up and rigging down equipment quickly and efficiently. Used on SCR/VFD houses to provide power to rig equipment.

• Watertight
• Grounding Style 2
• NEMA 4X Enclosure

Product Highlights

The PowerMate product offering is interchangeable with all UL1686 Listed plugs and receptacles. Ideal for shaker, agitator, lighting circuit, mud pump, and motor applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CDR6034
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: CDR6034
• Manufacturer: Eaton Crouse-Hinds
• Brand: Eaton
• Sub Brand: Crouse-Hinds series
• Country of Origin: Mexico
• Made in USA: No
• Application: Ind Facilities & Factories - Facility: Power Distribution and Control
• Material: High Impact Strength Copper Free Aluminum
• Number of Poles: 4
• Special Features: Watertight, Grounding Style 2, NEMA 4X Enclosure
• Standard: UL, CUL
• UPC: 662276276918
• GTIN: 00662276276918
• Item Type: Receptacle
• Voltage Rating: 600 Vac at 50 To 400 Hz, 250 Vdc
• Wire Size: 8 To 4 AWG (Extra Flex)
• Product Length/Depth: 4.25 in
• Product Height: 4.5 in
• Product Width: 4.5 in
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 4X
• Amperage Rating: 60A
• Grounding type: Style 2
• Configuration: Three-wire, four-pole
• Amperage: 60
• Voltage: 600VAC, 250VDC
• Poles: 4
• Approval: NEC, CEC, UL, CUL
• Wire Gauge: 8 to 4 AWG, Extra Flex
• Number Of Wires: 3
• ECCN: EAR99
• UNSPSC: 39121404
• No. of Wires: 3
• No. of Poles: 4
