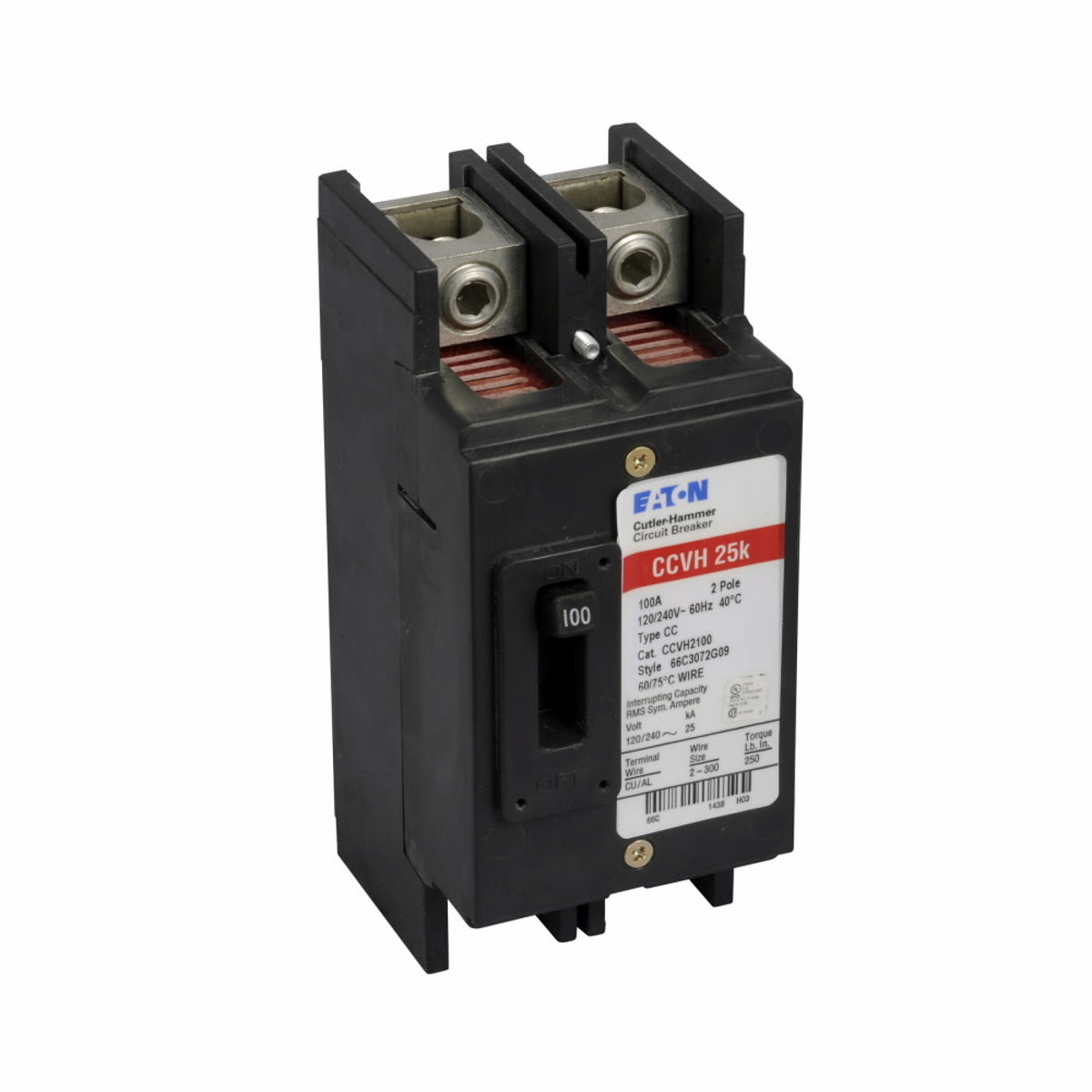

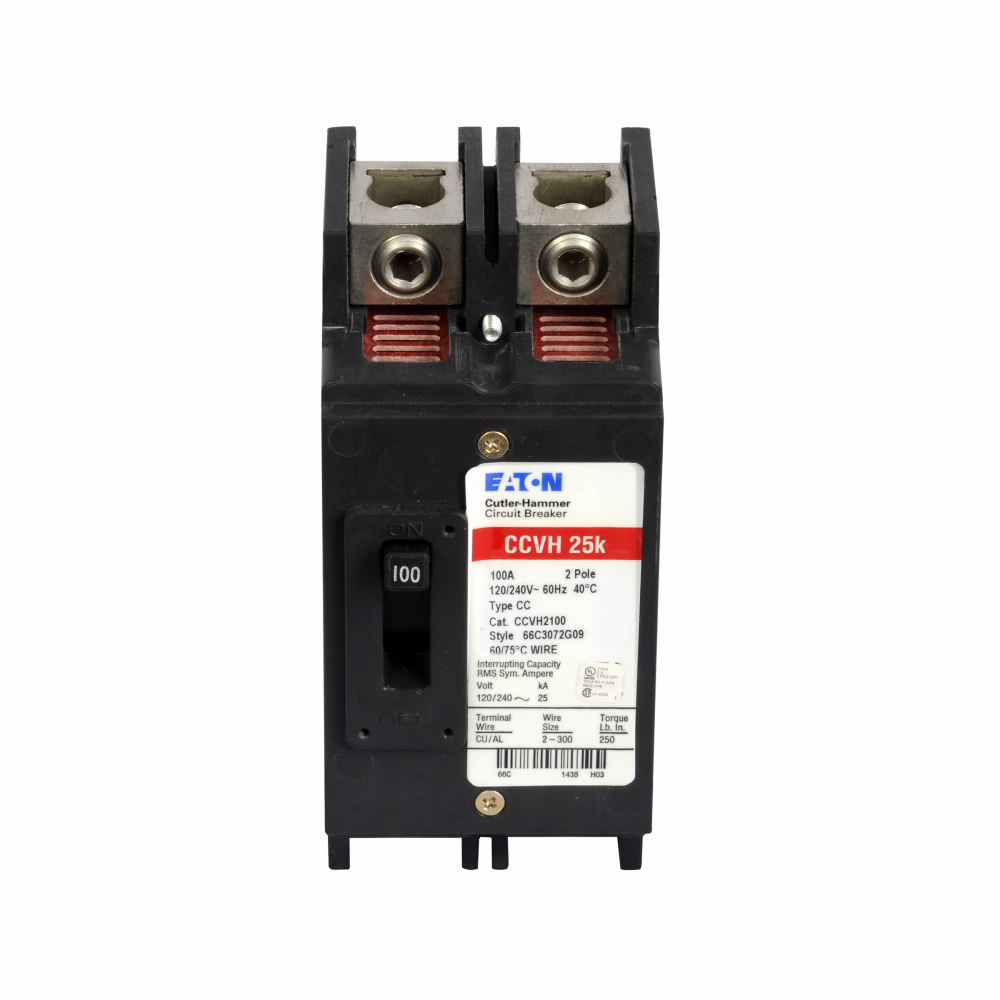

Eaton CCVH2125 CCVH BREAKER 125A/2 PO

Product Description

The Eaton CCVH2125 is a tenant main circuit breaker designed for use in various applications such as emergency disconnects and group metering solutions. This two-pole circuit breaker has a current rating of 125 Amps and is suitable for 120/240 Voltage systems.

• Rated for 125 Amps and 120/240 Volts
• Features a 25 kAIC interrupt rating
• Compatible with wire sizes from 2/0 AWG to 300 kcmil

Product Highlights

This product is ideal for both conventional and renewable energy applications, making it suitable for a wide range of installations. It is UL listed, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: CCVH2125
• Voltage Rating: 120/240 VAC
• Amperage: 125 A
• Number of Poles: 2
• Interrupt Rating: 25 kAIC
• Wire Size: 2/0 AWG to 300 kcmil
• Dimensions: 8 inches in length x 4.5 inches in width x 5.5 inches in height
• Weight: 2.83 lbs
• Country of Origin: Dominican Republic
• Standards: UL 489
