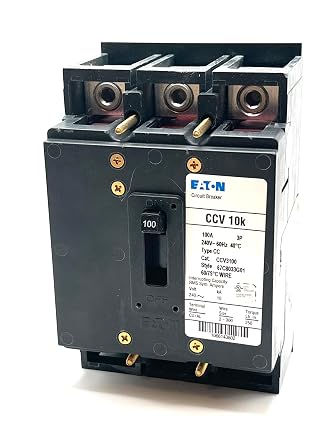

Eaton CCV3100 Tenant Main Breaker 100 A (3-Pole)

Product Description

The Eaton CCV3100 is a tenant main circuit breaker rated 100 A and 3-pole for 120/240 VAC systems. It features a 10 kAIC interrupting rating and line/load lug terminations, and is UL 489 certified. Typical applications include tenant service in group metering stacks, main or emergency disconnects, and sub-feeding from existing panels. The unit is a molded-case bolt-on breaker with dimensions 8 in H x 7 in W x 4 in D and weighs 3 lb.

• 100 A rating, 3-pole configuration for 120/240 VAC service
• 10 kAIC interrupting capacity with UL 489 certification and line/load lugs
• Molded-case construction with bolt-on mounting; dimensions 8 in H x 7 in W x 4 in D

Product Highlights

Tenant main breaker, 100 A, 3-pole, 120/240 VAC, 10 kAIC interrupting rating, UL 489 certified

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CCV3100
• Country of Origin: United States

Technical Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: CCV3100
• Product Name: Eaton CCV tenant main breaker
• Product Type: Tenant main breaker
• Circuit Breaker Type: Molded case
• Mounting Type: Bolt-on
• Poles: 3
• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Interrupting Rating: 10 kAIC
• Terminations: Line/load lugs
• Certifications: UL 489
• Dimensions: 4 x 7 x 8 inches (L x W x H)
• Weight: 3 lb
• UPC: 786689518615
• Country of Origin: United States
• Application: Tenant main applications, group metering stacks, main or emergency disconnects, sub-feeding from existing panel
