Description

Product Description

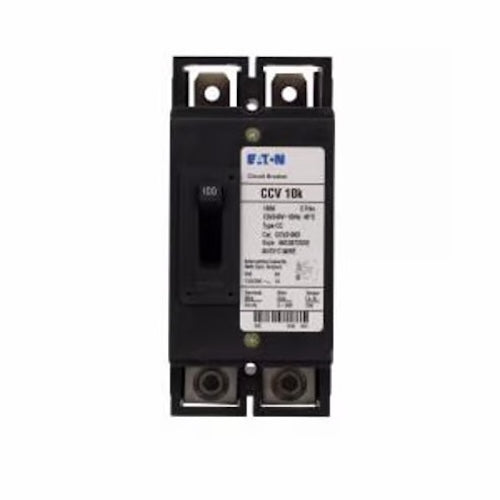

The EATON CCV2200X is a Type CCV Tenant Main Circuit Breaker designed for 120/240 VAC applications. It provides a rating of 200 Amps with a 10 kA interrupt. This two-pole breaker is built for thermal and magnetic tripping, ensuring reliable performance in various settings.

  • Rated for 120/240 VAC and 200 Amps.

  • Thermal/Magnetic trip type for protection against overloads.

  • Compatible with copper and aluminum wire sizes ranging from 2/0 AWG to 300 kcmil.

Product Highlights

This circuit breaker is suitable for tenant main applications and can handle load connections effectively. With a bolted-on mounting type, it fits well into standard electrical enclosures.

Product Information

Standard Information

  • Brand: EATON

  • Manufacturer Part Number: CCV2200X

Technical Specifications
Voltage Rating
120/240 VAC

Amperage Rating
200 A

Number of Poles
2

Trip Type
Thermal/Magnetic

Interrupt Rating
10 kA

Temperature Rating
60 to 75 deg C

Mounting Type
Bolted-On

Dimensions
8 in L x 4-1/2 in W x 5-1/2 in H

Included
2 Load Side Aluminum Collars
