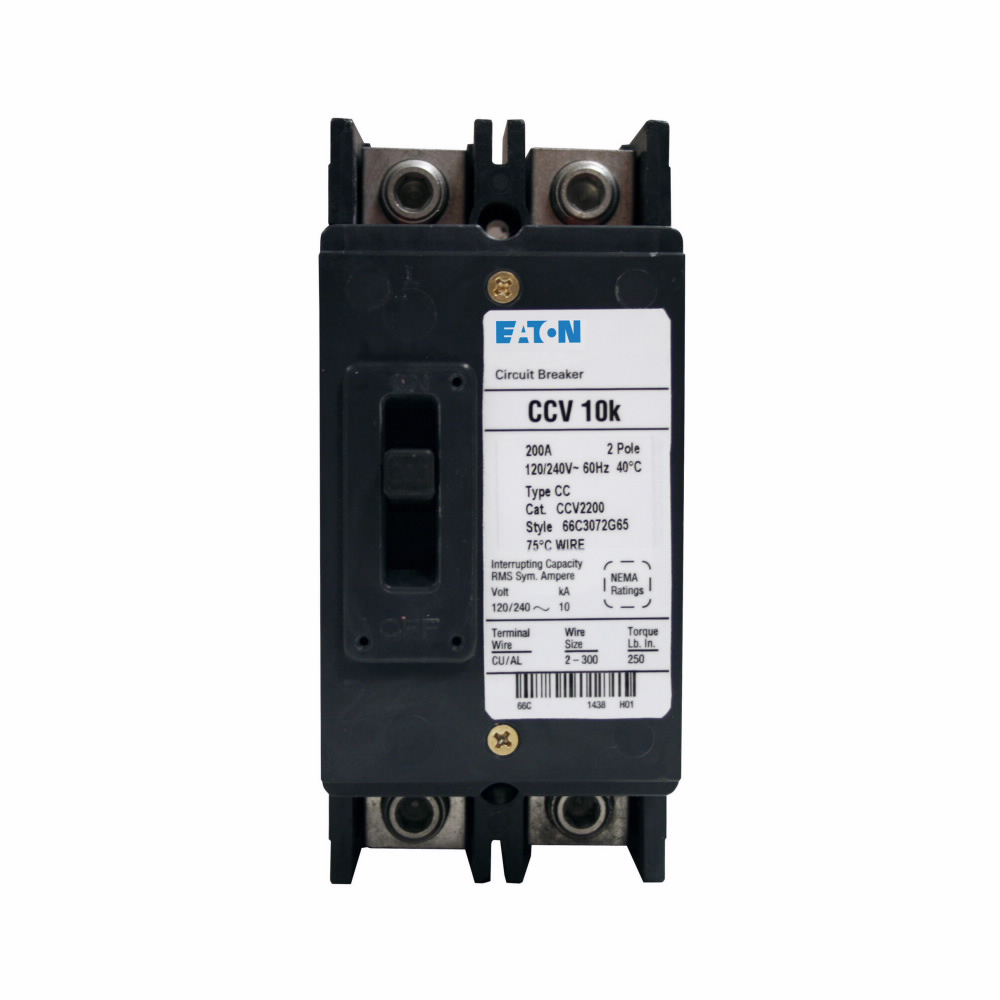

EATON CCV2200 Type CCV Tenant Circuit Breaker 120/240 VAC 200 A 10 kA Interrupt 2 Poles

Product Description

The EATON CCV2200 is a Type CCV Tenant Main Circuit Breaker designed for efficiency and reliability in electrical systems. It operates on 120/240 VAC and has a capacity of 200 Amps with a ten thousand Amp interrupt rating. This breaker is a two-pole device suitable for various applications in residential and commercial settings.

• Rated for 200 Amps and 120/240 Volts
• 10 kA interrupt rating for reliable performance
• Compatible with wire sizes from 2 AWG to 300 kcmil

Product Highlights

The EATON CCV2200 circuit breaker features a thermal/magnetic trip mechanism for enhanced protection. It is suitable for various installations, including service entrances and tenant main breakers in multi-tenant buildings.

Product Information

Standard Information

• Manufacturer: EATON
• Catalog Number: CCV2200

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Trip Type: Thermal/Magnetic
• Dimensions: 8 in L x 4-1/2 in W x 5-1/2 in H
• Temperature Rating: 60 to 75 deg C
• Wire Size Compatibility: 2 AWG to 300 kcmil Copper/Aluminum
