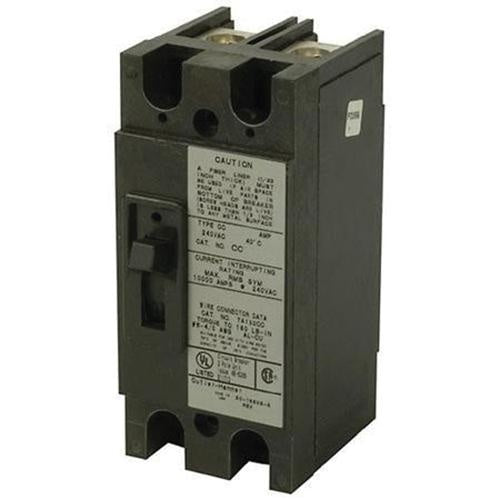

Eaton CCV2125X Type CCV Tenant Main Circuit Breaker 125 A 120/240 V

Product Description

The Eaton Type CCV Tenant Main Circuit Breaker, model CCV2125X, is designed for reliable performance in residential and commercial applications. This circuit breaker has a rating of one hundred twenty-five amps with a voltage capability of one hundred twenty to two hundred forty volts. It features a two-pole design and an interrupting capacity of ten kiloamperes.

• Suitable for use as a tenant main breaker
• Compatible with 2 AWG to 300 kcmil wire sizes
• UL Listed for safety and compliance

Product Highlights

This circuit breaker is well-suited for main or emergency disconnects in various setups including group metering stacks. Its thermal-magnetic trip mechanism provides dependable operation, disengaging the circuit in case of overloads.

Product Information

Standard Information

• Brand: Eaton
• MPN: CCV2125X

Technical Specifications

• Catalog Number: CCV2125X
• Voltage Rating: 120/240 V
• Amperage: 125 A
• Wire Size: 2/0 AWG to 300 KCMIL
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Height: 5.5 inches
• Width: 4.5 inches
• Length: 8 inches
