Product Description

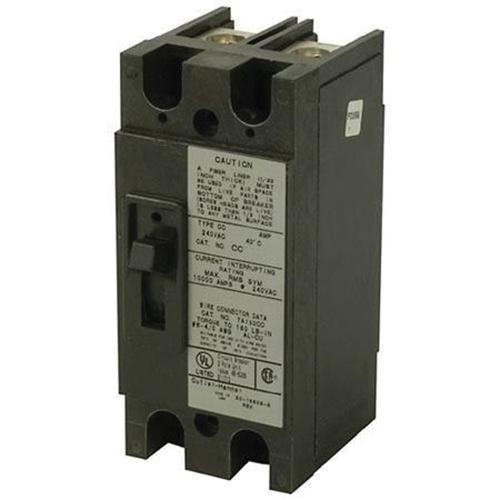

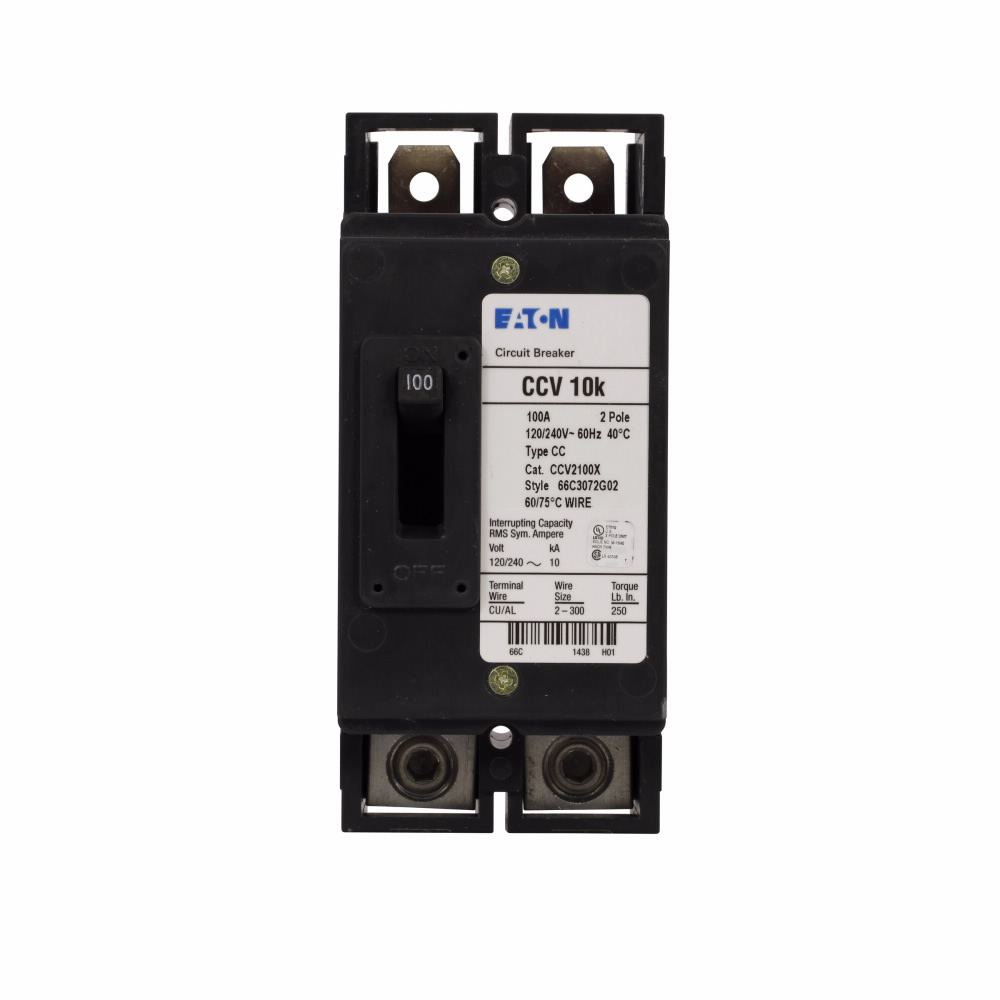

The Eaton CCV2100X is a tenant main circuit breaker designed for 120/240 VAC applications. It provides reliable protection with a 100 Amp rating and a 10 kA interrupt capacity. This two-pole circuit breaker is suitable for use in various settings, including main service panels and group metering stacks. It incorporates a thermal-magnetic trip system ensuring safety and efficiency.
- Rated for 120/240 VAC and 100 Amps.
- Designed for two-pole application.
- Thermal and magnetic trip for reliable operation.
Product Highlights
The Eaton CCV2100X circuit breaker is suitable for various applications, including residential and commercial settings. It allows for the connection of wire sizes from 2/0 AWG to 300 kcmil for copper or aluminum, making it versatile for different installations.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: CCV2100X
Technical Specifications
-
Voltage Rating: 120/240 Volts
-
Amperage Rating: 100 Amps
-
Number of Poles: 2
-
Interrupt Rating: 10 kAIC
-
Wire Size: #2/0 AWG to 300 kcmil
-
Dimensions: 8 inches L x 4.5 inches W x 5.5 inches H
-
Country of Origin: Dominican Republic
-
Standard: UL 489
