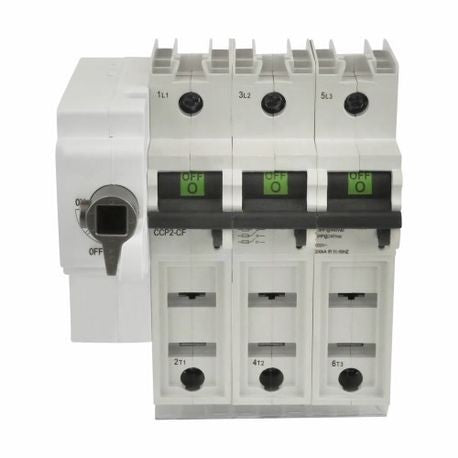

Eaton CCP2RL-3-60CF Left Front Compact Circuit Protector Disconnect Switch 600 VAC/125 VDC 225 A

Product Description

Eaton offers the CCP2RL-3-60CF, a compact circuit protector disconnect switch designed for electrical distribution systems. This model features a left front rotary operator. The rated voltage is six hundred volts AC or one hundred twenty-five volts DC at two hundred twenty-five amps.

• Meets cULus standards for safety and performance.
• Compact design at zero point three inches width and three point seven inches height.
• Provides visible contact separation for added safety.

Product Highlights

The Eaton CCP2RL-3-60CF switch is designed for quick installation and reliable performance in electrical assemblies and panels. It is equipped with a Class CF fuse system for enhanced protection.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: CCP2RL-3-60CF
• Voltage Rating: 600 VAC / 125 VDC
• Amperage Rating: 225 A
• Number of Poles: 3
• Width: 0.3 in
• Height: 3.7 in
• Depth: 2.9 in
• Fuse Type: Class CF
• Operator: Rotary
• Standards/Approvals: cULus Listed, UL 98
