Product Description

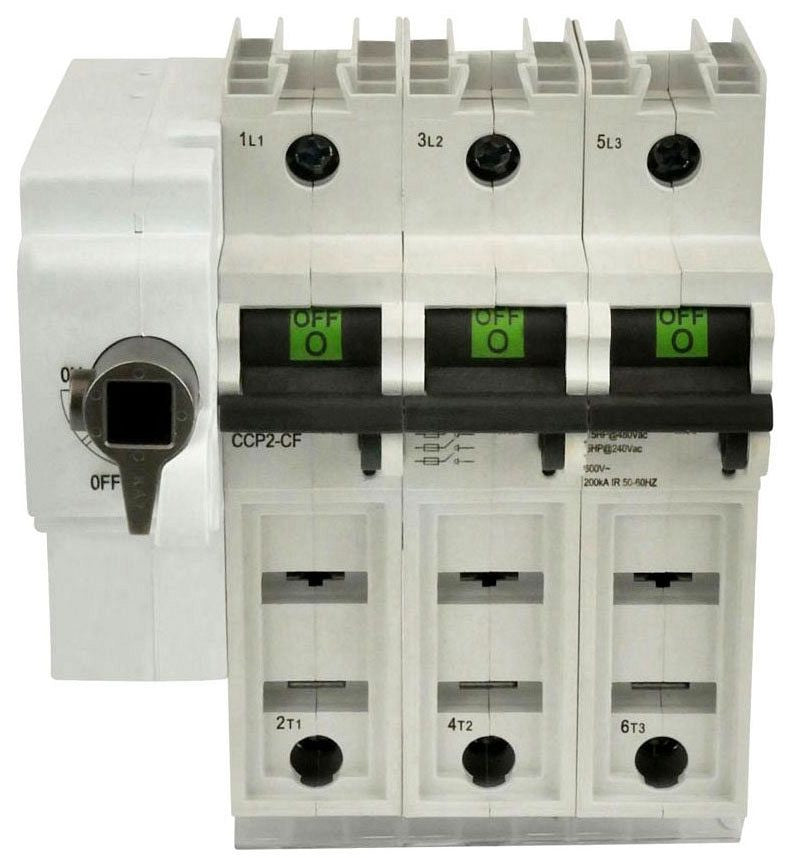

The Eaton CCP2RL-3-30CF is a compact circuit protector disconnect switch designed for electrical applications. This switch operates at 600 VAC/125 VDC and supports an amperage rating of 225 A with three poles. It utilizes a class CF fuse and features a rotary operator. Key points about this product include:
- Uses UL Class CF time-delay or fast-acting CUBEFuse with class J electrical performance.
- Compact design, measuring 0.3 inches in width, 3.7 inches in height, and 2.9 inches in depth.
- Visible contact separation for safety and a finger-safe lock-on provision.
Product Highlights
This switch is ideal for use in electrical assemblies, panels, and OEM applications.
Product Information
Standard Information
Technical Specifications
-
Amperage Rating: 225 A
-
Application: Electrical Assemblies, Panels and EOEMs
-
Depth: 2.9 inches
-
Fuse Type: Class CF
-
Height: 3.7 inches
-
Manufacturer Part Number: CCP2RL-3-30CF
-
Number of Poles: 3
-
Operator: Rotary
-
Standards/Approvals: cULus Listed, IEC Standard, UL 98
-
Type: Left Front
-
Voltage Rating: 600 VAC/125 VDC
-
Width: 0.3 inches
