Product Description

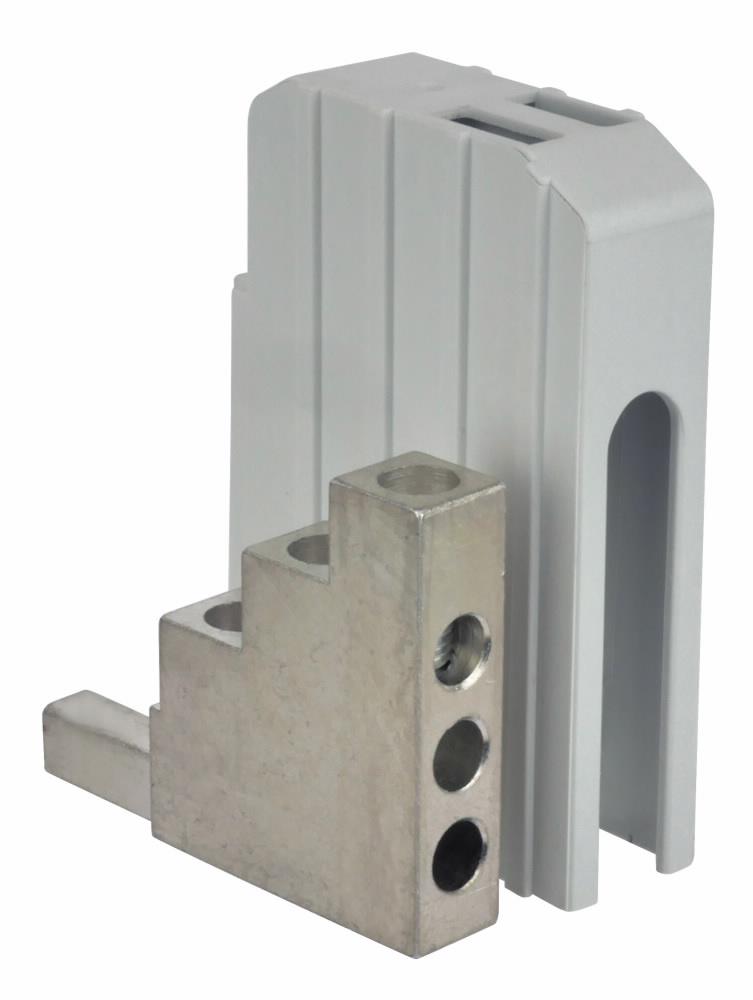

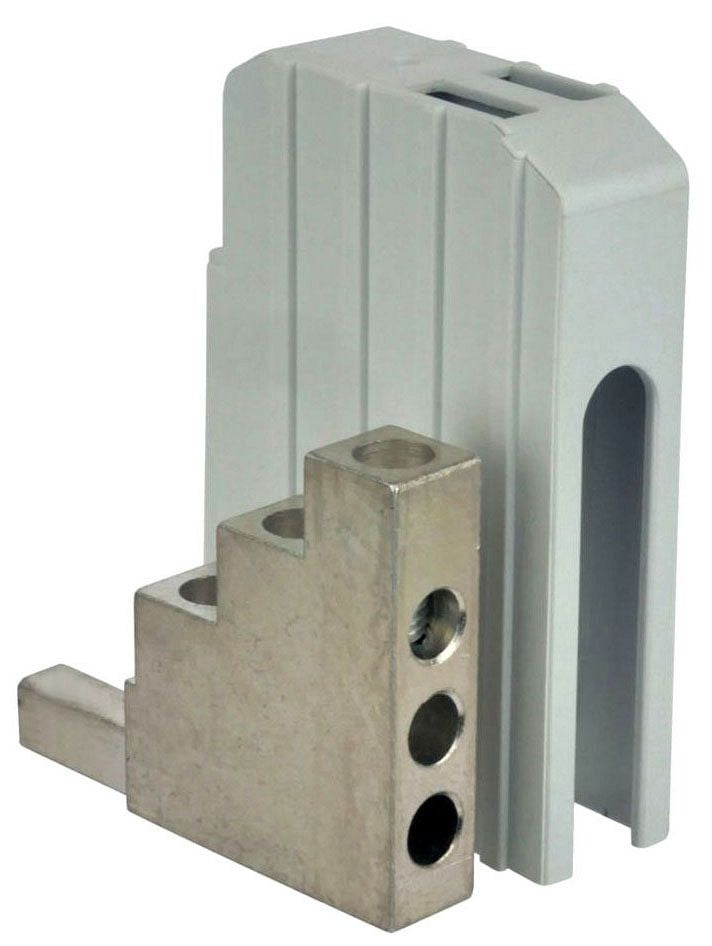

The EATON CCP2-MW1-3 is a multi-wire lug kit designed to convert each box lug terminal on a circuit switch into a 3-port terminal for enhanced power distribution. This kit includes three-port lugs and three-terminal shrouds. The shrouds provide finger-safe protection when correctly installed. Lugs can be attached on the load side or line side depending on the specific application needs. Each port on a lug accommodates various conductor combinations. For instance, one port may hold two 14 AWG wires while the other two ports can support single 10 AWG wires.
This kit is suitable for use with up to 600 VAC/125 VDC, and rated at 60 A and 60 Hz, specifically designed for Compact Circuit Protector Disconnect Switches. Its compact dimensions of three-point four inches in length, three inches in width, and five-point three inches in height make it versatile for tight installation spaces.
- Designed for 600 VAC/125 VDC applications
- Includes three-port lugs and shrouds for safety
- Compact dimensions for easy installation
Product Highlights
Multi-wire lug kit that expands terminals for better distribution of electrical current.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Part Number: CCP2-MW1-3 BU
Technical Specifications
-
Dimensions: 3.4 in L x 3 in W x 5.3 in H
-
Type: 3-Port CCP/CCD
-
Suitable For Use With: 600 VAC/125 VDC, 60 A, 60 Hz Circuit Protector
